A เครื่องขึ้นรูปม้วน is one of the most efficient metal forming processes in manufacturing. It transforms flat metal strips into complex profiles through progressive bending.
This technique uses contoured rolls to shape material as it passes through consecutive stations. The process maintains material thickness while achieving the desired shape. It delivers consistency, precision, and cost-effectiveness for high-volume production.
Evaluating whether a roll forming machine fits your production line? Read our complete buyer’s guide to roll forming machines.
1. Introduction and Fundamental Principles of Roll Forming Machine
การขึ้นรูปม้วน is a continuous bending operation. It transforms flat metal strips into complex cross-sectional profiles using a progressive series of contoured rolls. Each roll set performs only part of the overall bend. The material gradually reaches its desired configuration.
This differs from discrete forming processes like stamping or press braking. Roll forming maintains material continuity throughout the operation. This creates significant advantages for long-length components and high-volume production.
The process starts with a metal coil. Width ranges from 1 inch to 30 inches. Thickness ranges from 0.004 inches (0.10 mm) to 0.125 inches (3.2 mm). Specialized applications may exceed these parameters.
1.1 Basic Mechanics and Material Considerations
A เครื่องขึ้นรูปม้วน operates on the principle of plastic deformation. Metal is permanently bent beyond its elastic limit without failure. Each station controls deformation to prevent cracking, excessive thinning, or surface imperfections.
Successful roll forming requires careful attention to material properties: yield strength, ductility, hardness, and anisotropy. The cold-forming nature induces work hardening along bend lines. This can enhance the strength and rigidity of the final product.
Material selection is critical for roll forming feasibility. Common metals include:
- Carbon steels (low, medium, and high carbon)
- Stainless steels (various grades for corrosion resistance)
- Galvanized steels (zinc-coated for durability)
- Aluminum alloys (lightweight, corrosion-resistant)
- Copper and brass (electrical conductivity, aesthetics)
Each material affects roll design, forming speeds, lubrication, and tooling. Aluminum generally needs more stations and gradual bends. High-strength steels demand greater forming pressures and robust machinery. See our comparison of roll forming material steel vs aluminum.
For material properties and standards, refer to the ASM Handbook Volume 14B: Sheet Forming and Tube Forming.
2 The Roll Forming Machine Process and Machinery
2.1 Comprehensive Process Breakdown
The roll forming machine process transforms coiled metal into finished profiles. A standard roll forming line integrates multiple components working in synchronization.
The process starts with coil loading. A master coil is mounted onto an uncoiler. The material passes through a leveling system that removes coil set and ensures flatness. This step is critical for dimensional accuracy. Learn more about uncoiler types and selection.
Pre-press operations may follow: punching, notching, or embossing. Features are added before primary forming. Modern lines often incorporate these operations directly into the production sequence. See our guide on เครื่องปั๊มขึ้นรูปสำหรับอุตสาหกรรมการขึ้นรูปม้วน.

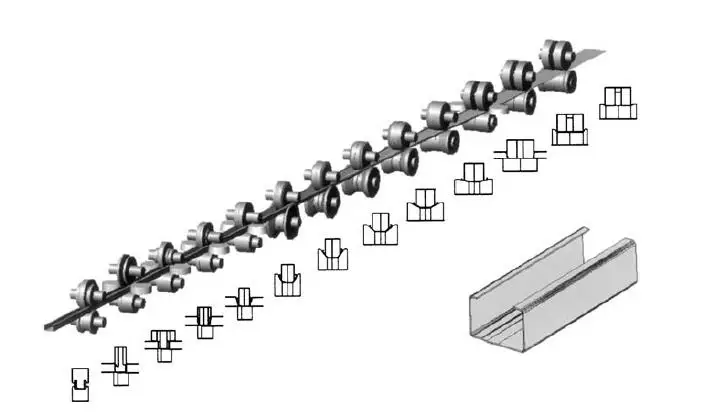

The actual forming occurs as metal passes through roll stations. Each station contributes an incremental bend. Station count depends on cross-section complexity, material properties, and thickness. Most profiles use 6 to 30 stations. Discover how roll forming machine levelers ensure optimal flatness.
After forming, the continuous profile is cut to length using a flying cutoff system. Cuts are precise without stopping production. Finished parts are discharged for packaging.
2.2 Types of Roll Forming Mills and Their Applications
Roll forming machines vary in design to accommodate different production requirements:
| Mill Type | Structural Characteristics | Ideal Applications | ช่วงความหนาของวัสดุ |
|---|---|---|---|
| Cantilevered Mills | Rolls supported at one end | Thin materials, rapid width changes | Up to 0.08 inches (2.0 mm) |
| Inboard Mills | Shafts supported at both ends | Thick materials, deep sections | Up to 0.100 inches (2.5 mm) |
| Rafted Mills | Multiple stands on baseplate | Frequent toolset changes | Varies with configuration |
| Side-by-Side Mills | Two tool sets on common base | Rapid configuration switching | Varies with configuration |
Cantilevered mills have rolls supported at one end. This provides excellent accessibility for quick adjustments and tooling changes. Width adjustments often take under one minute. However, reduced rigidity limits suitability for thicker materials.
Inboard mills have shaft support at both ends. They offer superior rigidity and precision. They handle thicker materials (up to 0.100 inches or 2.5 mm) and deeper sections like structural U, C, and Z profiles.
Rafted mills have multiple stands on a single baseplate. Complete toolset changes take 30-45 minutes. Side-by-side mills have two tool sets on a common base. Lateral movement allows rapid switching between profiles.
Specialized configurations include Pull-through mills. Material is pulled through non-driven rolls by external force. These are used for ceiling T-bars and small tubes. Tension roll forming uses strip tension exceeding yield strength. This reduces passes by ~50% while improving straightness. Explore เทคโนโลยีเซอร์โวฟลายอิ้งชีท.
The international roll forming industry is represented by NORMA Group และ TPMMA.
2.3 Core Machine Components and Their Functions

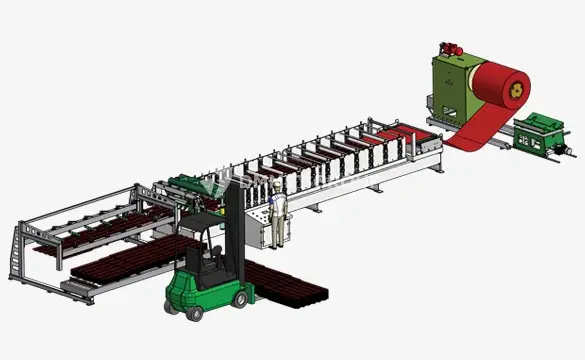

A complete roll forming system includes integrated components. Understanding these ชิ้นส่วนเครื่องรีดขึ้นรูป is essential for equipment evaluation.
The entry section includes an uncoiler, peeler, and leveling system.
The main forming section has multiple roll stands. Each contains precisely machined rolls. Stand count varies from 6 for simple shapes to 30+ for complex profiles.
The drive system is critical. Motor power ranges from 2 to 200 horsepower. This depends on material thickness, strength, and station count. Modern mills use variable-frequency AC or DC motors. These have largely replaced mechanical clutch systems. Variable frequency drives (VFDs) follow IEC 61800 standards.
The cutting mechanism is typically a flying cutoff press. It severs the continuous profile while synchronized with line speed.

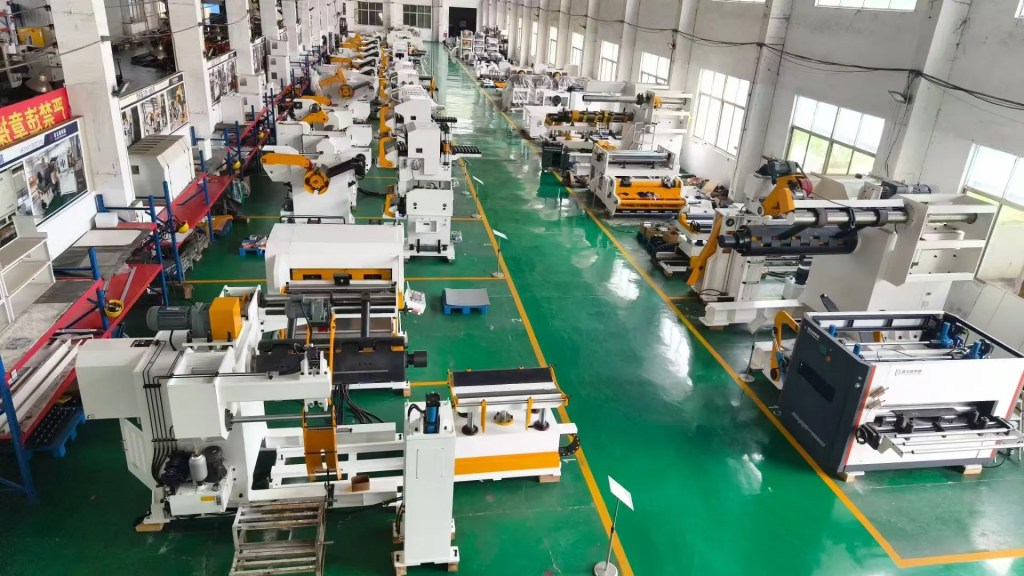

The exit section may include run-out tables, stacking systems, and packaging equipment. Advanced lines often incorporate welding, embossing, piercing, or bending stations.
| ส่วนประกอบ | Primary Function | Key Features |
|---|---|---|
| Uncoiler/Decoiler | Hold and feed master coil | Capacity matching coil weight/width, tension control |
| Leveling System | Remove coil curvature | Multi-roll configuration, precision adjustment |
| Roll Stands | Progressive forming | Precision bearings, quick-change features, lubrication |
| ระบบขับเคลื่อน | Power transmission | Variable speed control, adequate horsepower, safety features |
| Cutting Mechanism | Cut profiles to length | Flying cutoff, synchronization control, precision blades |
| ระบบควบคุม | Monitor and coordinate | PLC, HMI, diagnostics, data collection |
3 Materials and Applications in Modern Industry.
3.1 Material Selection Considerations for Roll Forming Machine
Roll forming effectiveness depends on appropriate material selection. Key considerations include mechanical properties, formability, surface conditions, and service environment:
Low-carbon steels are the most common roll-formed materials. They offer excellent ductility, favorable strength, and cost-effectiveness. Yield strengths range from 30,000 to 50,000 psi. Complex shapes can be formed without cracking or excessive springback.
High-strength low-alloy (HSLA) steels offer enhanced properties. Yield strengths range from 50,000 to 70,000 psi. They provide greater load-bearing capacity but require more powerful equipment and careful roll design.
Stainless steels are selected for corrosion resistance and aesthetics. Higher work hardening rates require specialized forming approaches.
Aluminum alloys are valued for light weight and corrosion resistance. The 5000 and 6000 series are most common. Series 5000 provides superior formability. Series 6000 offers better strength after forming.
Material thickness significantly influences the process. Most applications range from 0.012 inches (0.3 mm) to 0.125 inches (3.2 mm). Thinner materials need more stations and careful tension control. Thicker materials demand greater forming power.
3.2 Industrial Applications and Sector-Specific Implementations
Roll forming serves diverse industries with consistent quality and dimensional accuracy:
การก่อสร้างและโครงสร้างเหล็ก: Produces steel framing (studs and tracks), roofing panels, floor decking, window/door frames, and structural sections (C-purlins, Z-purlins, Sigma-channels).
อุตสาหกรรมยานยนต์: Applications include seat tracks, door beams, bumper reinforcements, sunroof guides, structural reinforcements, and window channels. The industry uses advanced high-strength steels (AHSS) for lightweighting. According to the สมาคมเหล็กโลก, AHSS has reduced vehicle emissions by up to 25%.
โปรไฟล์ด้านโลจิสติกส์: Produces bolted upright columns, welded upright frames, supermarket shelving panels, box beams, คานขั้นบันได, และ bracing. See our guide on โครงเสาตั้งยึดด้วยน็อตเทียบกับโครงเสาตั้งเชื่อม.
พลังงานและไฟฟ้า: Solar systems use ช่องค้ำยัน, mounting frame, roll-formed mounting rails, tracking components, and support structures. Wind energy uses roll-formed tower sections. Cable tray systems support and protect electrical cables. See our comparison of รางเคเบิล vs บันไดเคเบิล.
ระบบรางน้ำฝน: Shapes metal strips into gutter profiles (half-round, square, rectangular) and downspout profiles (round, square, rectangular).
โปรไฟล์ประตูและหน้าต่าง: Produces door frames, window frames, shutter door guiders, shutter door slats, and garage door panels.
3.3 Advantages and Limitations in Industrial Applications
Roll forming offers numerous advantages:
- High production efficiency: Speeds range from 30 to 300 feet per minute (10-100 m/min)
- Minimal material waste: Limited to lead and tail ends of coils
- Superior dimensional consistency: Uniform cross-sections along product length
- Enhanced material strength: Cold-working effect and work hardening
- Inline integration: Punching, notching, embossing without removing from line
Limitations include:
- Substantial initial tooling investment for low-volume production
- Primarily suited for constant-cross-section profiles
- Setup times for changeovers can challenge frequent product transitions
เดอะ National Institute of Standards and Technology (NIST) provides manufacturing efficiency benchmarks for investment decisions.
4. Roll Design and Process Optimization
4.1 Fundamental Principles of Roll Design
Successful roll forming depends on precise roll tool design. Roll design balances material behavior, mechanical principles, and production requirements.

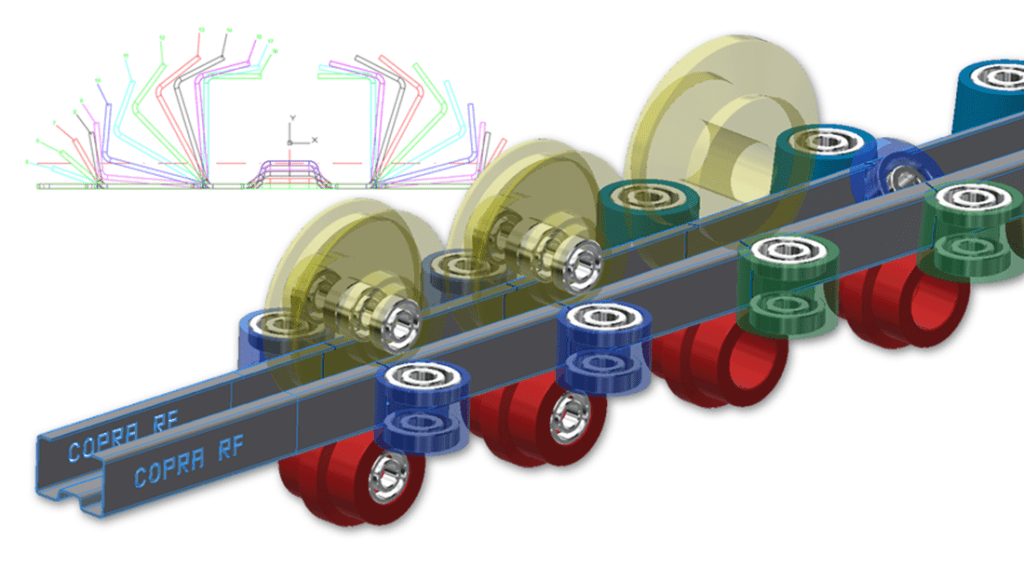

The process starts with a ลวดลายดอกไม้ (form sequence). This diagram shows the cross-sectional shape at each forming stage. It serves as the blueprint for roll contours and station count.
A key principle: distribute deformation evenly across stations. Excessive strain at any single point causes defects. Each station introduces incremental bends. Typically 10-30 degrees per station depending on material and thickness.

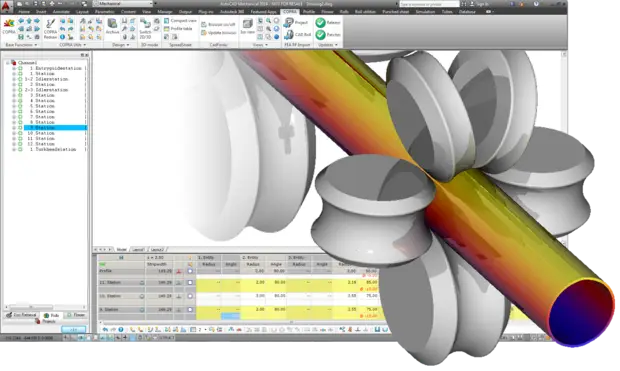

Modern roll design relies on computer-aided engineering (CAE) tools. These simulate the forming process. They predict issues before tooling manufacture. Software uses finite element analysis (FEA) to model material behavior. This allows designers to optimize flower patterns and roll geometries virtually. Explore our guide to ซอฟต์แวร์ขึ้นรูปม้วน.
For FEA fundamentals, the SIMULIA Community provides extensive resources.
4.2 Bend Sequencing and Profile Optimization
Bend sequencing critically influences roll forming success. It determines the order of formation for each cross-section feature. It affects both forming mechanics and final product quality.
General guidelines: form the easiest bends first. These are typically closest to the strip center. Then progress to more complex peripheral bends. This maintains better material control and reduces distortion.
Profile optimization is critical for efficiency. Design for Manufacturability (DFM) principles include:
- Minimize bend count where possible
- Maintain consistent bend radii throughout the profile
- Avoid tight tolerances unless necessary
- Consider material grain direction for bend locations
- Incorporate relief notches for adjacent bends
These strategies can reduce production costs by 10-20%. ASME Y14.8 standards codify DFM principles for metal forming.
4.3 Computational Aids and Advanced Design Techniques
Contemporary roll forming design uses computational technologies. Computer-aided design (CAD) creates detailed 3D models of rolls and forming sequences. These digital models program CNC machines. Roll tools are manufactured within tolerances of 0.0005 inches (0.013 mm) or better.
Advanced simulation software performs virtual roll forming. It analyzes material flow, stress distribution, and defect formation. Programs model elastoplastic behavior. They predict issues like longitudinal strain, edge compression, bowing, and twisting.
5 Advanced Technologies and Emerging Trends
5.1 Innovative Roll Forming Variations and Hybrid Processes
The fundamental roll forming process has evolved to meet specialized requirements:
Tension roll forming applies significant longitudinal tension during forming. Tension exceeds the material’s yield strength. This reduces required passes by up to 50%. It also improves final product straightness.
Hot roll forming forms high-strength materials like titanium alloys at elevated temperatures. It handles thicknesses up to 50 mm. Cold forming cannot achieve this. Hot roll forming incorporates heating furnaces. Specialized mills operate at temperatures up to 900°C. The American Society of Mechanical Engineers (ASME) publishes guidelines on high-temperature forming processes.
3D roll forming challenges the traditional constant cross-section limitation. Computer-controlled adjustments vary profile geometry along the length during operation.
Flexible roll forming uses universal roll tools. These can be quickly reconfigured for different profiles. Changeover times are significantly reduced. Discover strategies for quick change roll forming machines.
5.2 Automation, Control Systems, and Industry 4.0 Integration
Modern roll forming uses advanced control systems and automation. PLC (Programmable Logic Controller) systems coordinate roll forming line components. Learn about การควบคุม PLC เพื่อเพิ่มประสิทธิภาพการขึ้นรูปม้วน.
Industry 4.0 introduces additional capabilities. IoT, big data analytics, and artificial intelligence enhance operations. Smart systems incorporate sensors monitoring roll pressure, temperature, alignment, and vibration. This enables predictive maintenance. Potential issues are identified before causing downtime.
เดอะ สมาคมระบบอัตโนมัติระหว่างประเทศ (ISA) provides standards for industrial automation and IoT integration.
5.3 Future Trends and Developmental Directions
The roll forming industry continues evolving:
- Sustainability: Reducing energy consumption through efficient drives and recyclable materials
- Dry forming: Minimizing or eliminating lubricants
- Thickness customization: Varying thickness along product length
- Advanced materials: Ultra-high-strength steels, new aluminum alloys, composites
- Real-time quality control: Laser scanning and vision systems
- Additive manufacturing: 3D printing for prototype roll tools
- Digitalization: Cloud-based platforms and remote monitoring
- Artificial intelligence: Autonomous operation and optimization
6 Quality Control and Defect Prevention in Roll Forming Machine
6.1 Common Defects and Their Root Causes
Understanding defects is essential for quality control. Understanding springback control in roll forming is critical for precision manufacturing.
Edge waving: Waviness along profile edges. Caused by excessive compressive stresses during forming. Results from incorrect bend sequencing, improper roll design, or too much material per station.
Longitudinal bow: Curvature along part length. Caused by unbalanced residual stresses from uneven material flow.
บิด: Rotational distortion around the longitudinal axis. Also caused by unbalanced residual stresses.
Springback: Material attempts to return to original shape after leaving roll constraints. Varies with yield strength and work hardening characteristics.
Oil canning: Waviness or buckling in flat sections between bends. Results from incorrect tension control or inadequate support.
Quality standards are defined by ISO 1101 และ ISO 8015. These establish GD&T principles for metal forming.
6.2 Quality Assurance Methods and Inspection Techniques
Effective quality control combines preventive measures and verification:
- Incoming inspection: Verify chemical composition, mechanical properties, thickness, surface condition
- Process monitoring: Track line speed, roll pressures, tension levels
- Dimensional verification: Use calipers, micrometers, laser scanners, optical comparators
- Automated vision: 100% inspection at line speeds
- Statistical process control (SPC): Analyze measurement data to identify trends
- Traceability: Link finished products to production batches and process parameters
6.3 Maintenance Protocols for Consistent Quality
Consistent quality depends on regular maintenance. Follow our คู่มือการบำรุงรักษาเชิงป้องกันสำหรับการขึ้นรูปม้วน.
Essential maintenance activities:
- Preventive schedules: Address rolls, bearings, drives, cutting systems
- Roll inspection: Check wear, damage, surface condition
- Lubrication management: Ensure smooth operation
- Alignment verification: Confirm horizontal and vertical roll alignment
- Predictive technologies: Vibration analysis, thermography, oil analysis
- เอกสารประกอบ: Create valuable maintenance records
7 Implementation Guidelines and Economic Considerations
7.1 Equipment Selection Criteria and Capacity Planning
Selecting equipment requires analyzing current and future needs. Key considerations:
- Profile range: Dimensions, complexities, materials
- Production volumes: Required speed and automation level
- Flexibility requirements: Changeover frequency
- Physical dimensions: Maximum material width and thickness
- Material strength: Influences power requirements
- Capacity reserves: For future growth
Before purchasing, review ต้นทุนแฝงของเครื่องจักรขึ้นรูปโลหะแบบม้วน.
7.2 Cost Analysis and Justification Methodology
Economic justification requires thorough analysis. Understanding ราคาเครื่องรีดขึ้นรูป factors helps buyers make informed decisions.
Initial investment includes the machine, tooling, installation, and facility modifications. Tooling costs vary with profile complexity. Simple shapes need 6-10 roll sets. Complex profiles may need 20+ stations.
Total cost per part includes:
- Tooling amortization: Spread across production volume
- Direct labor: Operation and supervision
- Material costs: Utilization efficiency
- การใช้พลังงาน: Operation costs
- Maintenance and consumables: Lubricants, tool refurbishment
- Overhead: Space, administration, indirect support
Roll forming becomes economical at higher volumes. The Material Handling Industry of America (MHIA) publishes cost-benefit analysis templates and ROI calculators.
7.3 Installation, Operator Training, and Safety Protocols
Proper installation establishes the foundation. Beli Rollforming provides professional installation service with on-site commissioning worldwide.
Safety protocols must address specific hazards:
- Pinch points in roll stations
- Cutoff mechanism dangers
- Moving material at speeds up to 800 feet per minute (240 m/min)

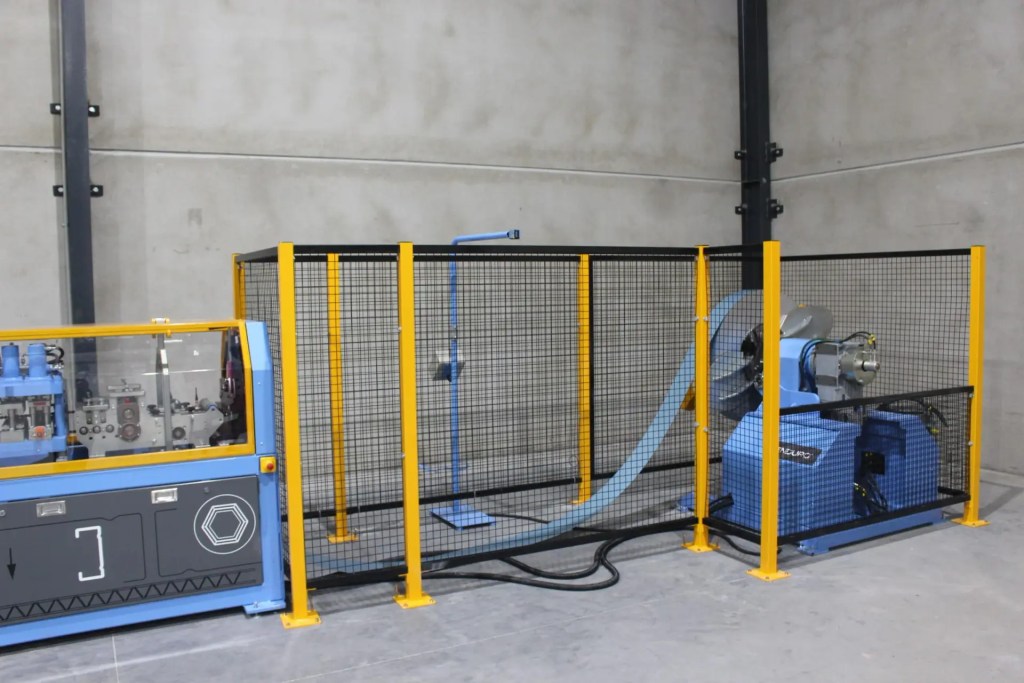

Essential safety measures include guarding, emergency stops, lockout/tagout procedures, and PPE. OSHA standards (29 CFR 1910) govern industrial machinery safety.
8 Conclusion and Future Outlook
Roll forming machine technology is a cornerstone of modern industrial production. It offers unparalleled efficiency, consistency, and cost-effectiveness for continuous metal profiles. Its ability to produce complex cross-sections with minimal waste is valuable in an era of resource consciousness.
Future development will focus on:
- Increased flexibility: Quick-change tooling and programmable systems
- Advanced materials: Higher-strength alloys and composites
- Digital integration: Real-time adjustments, predictive maintenance, improved productivity
The fundamental principles of gradual, progressive forming will continue to govern application. As industries face pressure to improve efficiency and reduce environmental impact, roll forming will play an increasingly vital role.
คำถามที่พบบ่อย (FAQs)
How to Choose the Right Roll Forming Machine
Choosing the right roll forming machine starts with defining your profile requirements, material specifications, and production volume. Consider the profile complexity, material thickness (typically 0.004–0.125 inches), and whether you need inline operations like punching or cutting. For a complete buyer’s checklist, read our guide on วิธีการซื้อเครื่องขึ้นรูปม้วน.
Roll stands and tooling selection depends on material thickness, profile complexity, and production speed. Cantilevered mills work best for thin materials up to 0.08 inches, while inboard mills handle thicker materials up to 0.100 inches. For deep sections, inboard designs provide better rigidity. Learn more about optimizing your line with our คู่มือส่วนประกอบเครื่องรีดขึ้นรูป.
The number of roller stations (typically 6–30) depends on bend complexity and material type. More stations mean gentler forming and better precision. For custom profiles, use Computer-Aided Engineering (CAE) to simulate the flower pattern before committing to tooling.
Roof panel roll formers require specific considerations for profile type (R-panel, AG-panel, standing seam), material width, and local building codes. For the US market, check out our metal roof roll forming machine guide for 2026 profile recommendations.
Single-specification models are cost-effective for dedicated production runs. Multispecification or quick-change models reduce changeover time by up to 75% if you produce multiple profiles. Explore our quick change roll forming machine strategies for massive savings.
What Metals and Materials Are Best for Cold Roll Forming
The best metals for cold roll forming include low-carbon steels (yield 30,000–50,000 psi), HSLA steels (yield 50,000–70,000 psi), stainless steels, galvanized steels, aluminum alloys (5000 and 6000 series), copper, and brass. Material selection depends on strength requirements, corrosion resistance, and cost. Read our detailed comparison of roll forming material steel vs aluminum.
Roll forming typically handles material thicknesses from 0.004 inches (0.10 mm) to 0.125 inches (3.2 mm), with widths from 1 inch to 30 inches. Advanced hot roll forming can process materials up to 50 mm thick, including titanium alloys.
Standard roll forming lines process carbon steels, stainless steels, galvanized steels, aluminum alloys, copper, and brass. Specialty lines can handle pre-painted steel, high-strength steels, and even composite materials.
Solar roll forming typically processes galvanized steel (0.8–2.5 mm) and aluminum (1.0–3.0 mm) for mounting rails, strut channels, and panel frames. See our solar strut channel machine specifications for details.
How Roll Forming Compares with Other Metal Fabrication Methods
Roll forming is continuous and ideal for high-volume production of constant cross-sections, while press braking is batch-based and better for short runs and variable geometries. Roll forming offers superior dimensional consistency and minimal waste. Read our full comparison: เครื่องขึ้นรูปม้วนเทียบกับเครื่องดัดโลหะ.
The key difference is that roll forming uses a series of contoured rolls to gradually bend metal without stopping, while press brake bending uses a punch and die to create discrete bends. Roll forming is faster for long runs; press brakes offer more flexibility for custom angles.
Roll forming is a continuous process ideal for long profiles with consistent cross-sections, while stamping is a discrete process best for complex 3D shapes and short runs. Roll forming produces less scrap and offers higher speeds (30–300 ft/min).
Pre-punching creates holes before forming, which is ideal for simple patterns and high-speed lines. Post-cutting (flying cutoff) happens after forming and is better for complex profiles where punching before forming would cause distortion. Learn about เทคโนโลยีเซอร์โวฟลายอิ้งชีท for precision cutting.
Common Defects in Formed Profiles and Fixes
Common defects include edge waving (compressive stress), longitudinal bow and twist (unbalanced residual stresses), springback (material elasticity), oil canning (tension control issues), surface marks, and cracking. Most defects are preventable through proper roll design and process control.
Edge waving can be fixed by adjusting roll sequencing; bow and twist require balanced stress distribution; springback needs over-bending compensation. Learn our 4 key techniques to control springback in roll forming.
Roll forming machine prices range from 15,000 for basic models to 350,000+ for fully automated lines with inline punching, welding, and stacking. Factors include stand count, automation level, and auxiliary equipment. Discover our 7 ultimate secrets to roll forming machine price.
Fully automatic lines with decoilers, levelers, punch presses, roll formers, flying shears, and auto stackers typically range from 80,000 to 350,000 depending on complexity and speed requirements. Don’t forget to account for ต้นทุนแฝงของเครื่องจักรขึ้นรูปโลหะแบบม้วน.
Typical Components in a Roll Forming Line
A typical roll forming line includes an uncoiler/decoiler, leveling system, pre-punching unit (optional), roll forming stands (6–30 stations), drive system (2–200 HP), cutting mechanism (flying shear or stationary), and control system (PLC/HMI). Explore our detailed breakdown of ชิ้นส่วนเครื่องรีดขึ้นรูป.
Core components include the uncoiler for coil loading, leveler for flattening, roll stands for gradual forming, drive system for power transmission, and cutoff device for length accuracy. Each component is critical for zero-waste fabrication.
Custom profiles require specially designed roll tooling based on a flower pattern (bend sequence). Tooling includes top and bottom rolls, side rolls, and sometimes auxiliary rolls for complex geometries. Tooling investment is typically the largest upfront cost. Read about การอัปเกรดเครื่องมือขึ้นรูปม้วน.
Maintenance and Safety
Regular maintenance includes lubrication of bearings and drive chains, hydraulic system checks, tooling inspection for wear, alignment verification, and electrical system diagnostics. Preventive maintenance can extend machine life beyond 50 years. Follow our คู่มือการบำรุงรักษาเชิงป้องกันสำหรับการขึ้นรูปม้วน.
Daily: visual inspection and lubrication. Weekly: check belt tension and bolt tightness. Monthly: inspect roll gaps and tooling wear. Yearly: full alignment check and bearing replacement if needed. Download our maintenance checklist for details.
Roll former maintenance focuses on roll alignment, shaft bearing lubrication, drive system checks, and tooling condition monitoring. Predictive technologies like vibration analysis and thermography can prevent unexpected downtime.
Essential safety measures include machine guarding, lockout/tagout (LOTO) procedures, proper PPE, emergency stop buttons, and operator training. High-speed lines (up to 800 ft/min) require additional safety barriers and interlocks.
Industries and Applications
Major industries include construction (steel framing, purlins, roofing), automotive (seat tracks, bumper reinforcements), logistics (shelving, rack uprights), energy (solar rails, cable trays), and agriculture (grain bins, fencing).
Roll formed profiles are used in construction, automotive, warehousing, renewable energy, electrical infrastructure, and transportation. The versatility of roll forming makes it suitable for any industry requiring long metal profiles with consistent cross-sections.
A flower pattern (or form sequence) is the step-by-step diagram showing how a flat strip is gradually bent into the final profile shape across multiple roll stations. Each station typically bends 10–30 degrees maximum to prevent material stress.
Advanced Topics
Standard roll forming speeds range from 30–300 ft/min (10–100 m/min). High-speed lines for simple profiles can reach 800 ft/min (~240 m/min). Speed depends on material thickness, profile complexity, and cutoff method.
CAE uses Finite Element Analysis (FEA) to simulate the roll forming process before tooling is manufactured. It predicts longitudinal strain, edge compression, bowing, and twisting, allowing designers to optimize the flower pattern and reduce trial-and-error by up to 80%.
PLC (Programmable Logic Controller) systems provide precise speed synchronization, automatic length measurement, fault diagnostics, and integration with Industry 4.0 systems. Modern PLCs with HMI interfaces allow operators to adjust parameters in real-time, reducing setup time and improving repeatability. Learn about การควบคุม PLC เพื่อเพิ่มประสิทธิภาพการขึ้นรูปม้วน.
Changelog & Next Review
พิมพ์ | วันที่ | คำอธิบาย |
|---|---|---|
Initial Publish | 2025.10.27 | Article first published. |
Current Update | 2026.05.14 | Optimized structure, broke up long paragraphs, added internal/external links and FAQs. |
Next Scheduled Review | 2026.10.14 | Planned optimization cycle. |
