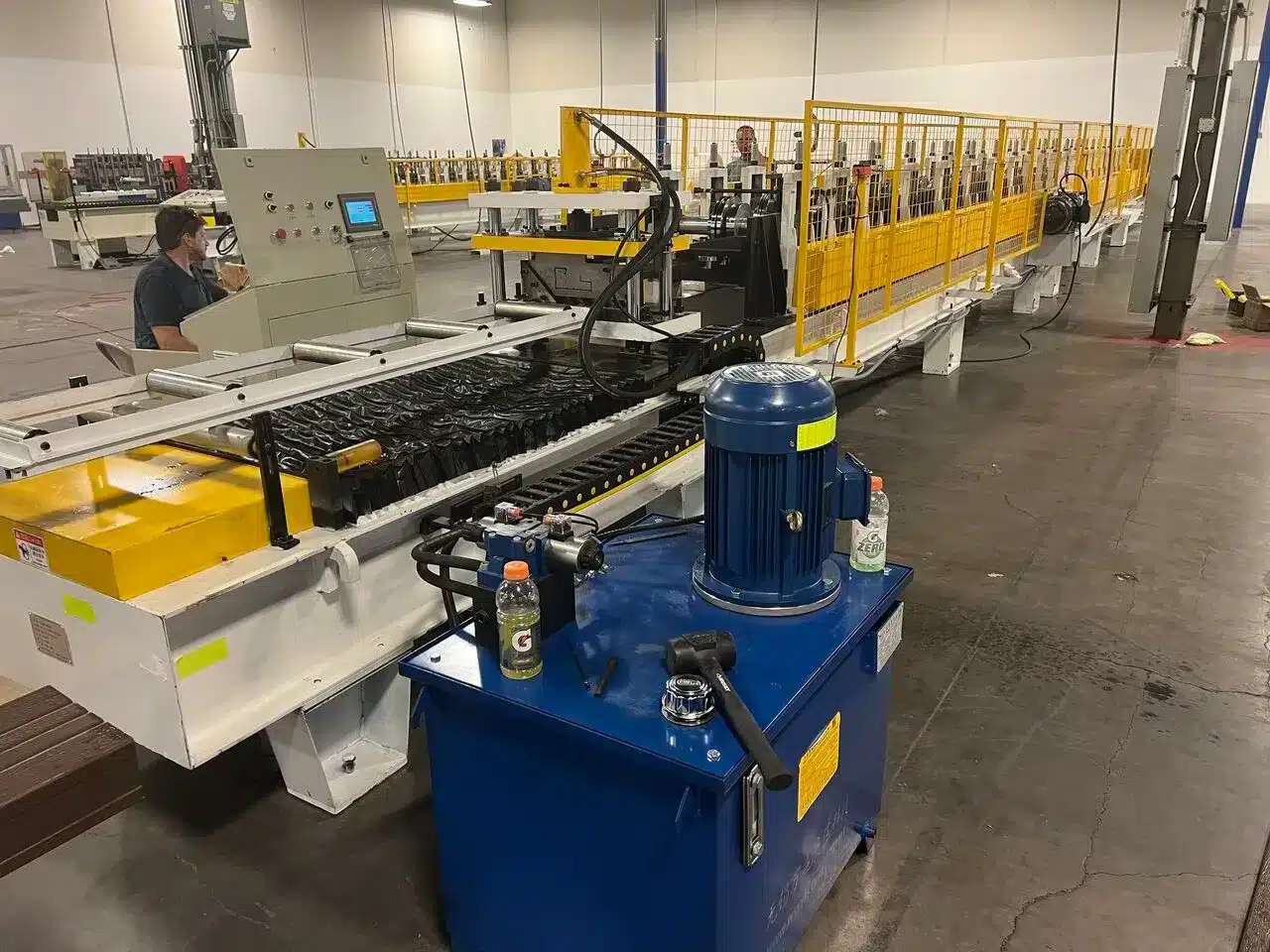

Why Choose Beli RollForming’s Fascia Gutter Roll Forming Machine?
Our fascia gutter roll forming machine line stands out for three key reasons:
Customization: We adapt each machine to your target material (galvanized steel, aluminum, coated alloys), thickness (0.3–1.2mm), and output (up to 15+ tons/hr).
Durability: Built with 45# steel rollers and heavy-duty frames, our machines last 10+ years with minimal maintenance.
Ease of Use: A PLC touch-screen control panel lets operators adjust settings, monitor speed, and track production in real time—no specialized training required.
What's Fascia Gutter?
Fascia gutter is the siding panel between your home’s gutter system and exterior wall. The adjacent fascia board runs along the building, hiding unsightly outdoor rafters and securing gutters to the structure.
It’s a functional duo: the gutter channels rainwater away, while the fascia board supports and conceals critical components—protecting your roofline and keeping the exterior tidy. Together, they blend practicality with cohesion, ensuring your gutter system works efficiently and maintains a neat, integrated look.
Key Components of Our Fascia Gutter Roll Forming Machine
Every fascia gutter roll forming machine from Beli RollForming uses premium parts for reliability:

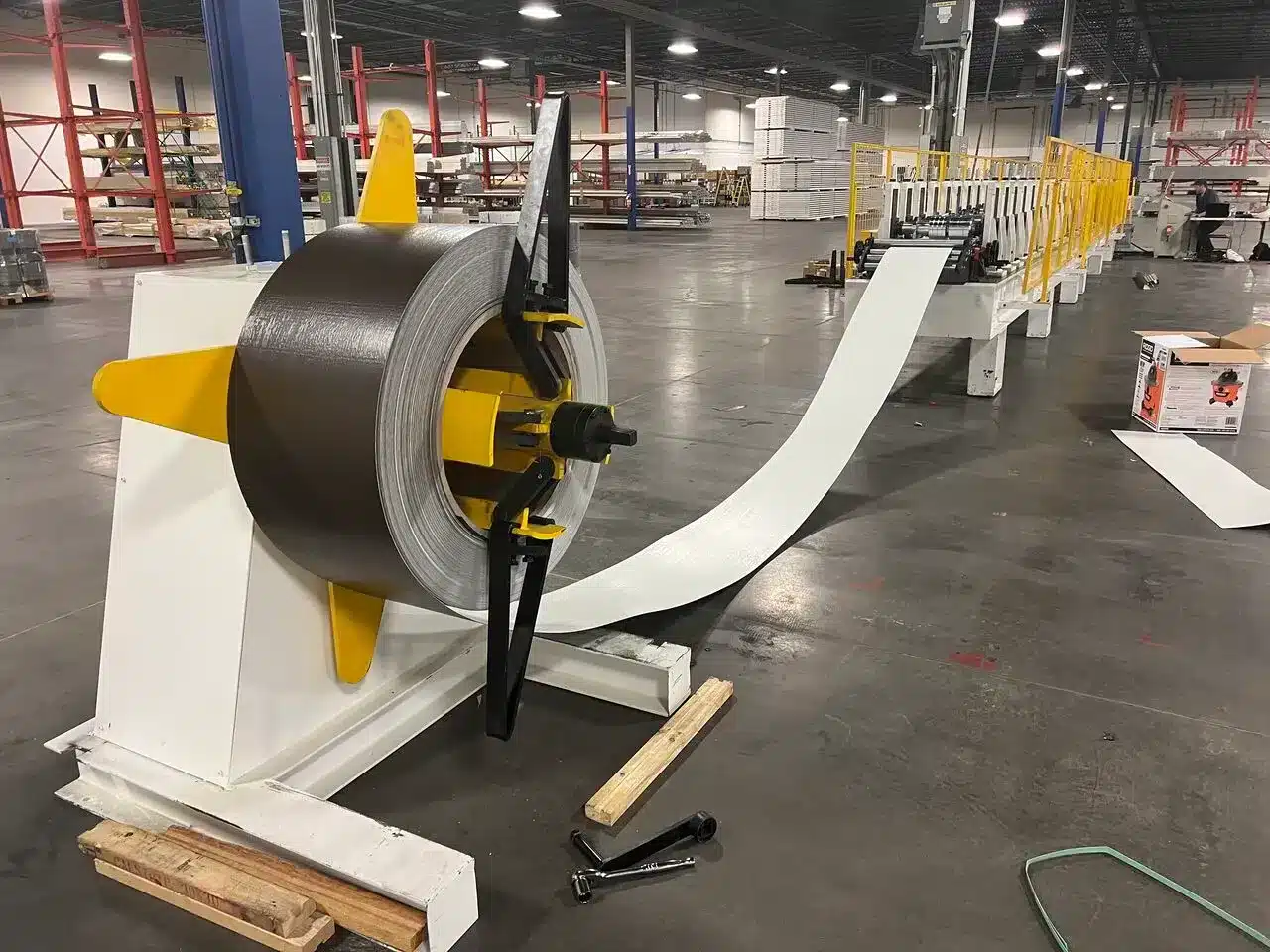

Uncoiler: Hydraulic (standard) or manual (optional) with 5–20 ton capacity—easy to load and adjust for coil sizes up to 1500mm wide.
- Forming Stands: 18 adjustable stands made from 45# steel—creates tight radii and consistent profiles.
Cutting System: Hydraulic (standard) or electric shear (optional)—delivers burr-free cuts up to 6 meters long.
Control Panel: Siemens PLC with touchscreen—monitors line speed, tension, and production counts.
Learn how hydraulic uncoilers boost efficiency: Hydraulic vs. Manual Uncoilers: Which Is Right for You?
Basic Technical Parameters of Fascia Gutte Roll Forming Machine
| Feature | Spec | Optional |
|---|---|---|
|
Material |
Aluminum |
Copper, PPGI, PPGL |
|
Yield Strength |
Soft Material( 235-345 Mpa) |
Full Hard (550-700 Mpa) |
|
Forming Speed |
15-20/min |
20-30 m/min or more |
|
Uncoiler Type |
Manual |
Automatic |
|
Transmission |
Chain and Sprocket |
Gear Box and Universal Joint |
|
Stands Type |
Steel Plates Welded |
Cast Iron, Chromed Pillar |
|
Roller Material |
ASTM 1045 |
GCR 15, CR12 Mov ( D2) |
|
Cutting Way |
Electric Cutting |
Flying Electric Cutting, Hydraulic Cutting |
|
Power Supply |
240 V, 3 Ph, 60 HZ |
415V, 50/60 HZ, 480V 60 HZ, 600 V 50/60 HZ |
Frequently Asked Questions
A fascia gutter roll forming machine is an industrial piece of equipment that feeds continuous flat metal coils through a series of hardened steel rollers to progressively shape the metal into a specific fascia gutter profile. These gutters serve a dual purpose, acting as both the roof’s gutter system and the fascia board.
Most standard fascia gutter roll forming machines can process a variety of metals, including:
Pre-painted or galvanized steel
Aluminum
Copper
Zinc Typical material thickness ranges from 0.3mm to 0.8mm (or 22 to 30 gauge), depending on the specific machine’s design.
While speeds vary by manufacturer and model, a standard fascia gutter roll forming machine typically operates at a speed of 10 to 20 meters per minute (approx. 30 to 65 feet per minute). This speed includes the time it takes for the machine to stop, cut the gutter, and resume forming.
This depends on the machine type.
Single-profile machines: Designed to produce one specific fascia gutter size and shape.
Adjustable/Multi-profile machines: Can be adjusted manually or automatically to produce different widths, or they may use interchangeable cassette systems to swap out entire roller sets for completely different profiles.
To ensure longevity and consistent profile quality, operators should:
Keep the rollers clean and free of metal shavings or debris.
Regularly lubricate the drive chains, gears, and bearings.
Check the hydraulic oil levels for the cutting system.
Inspect the cutting blades for wear and sharpen or replace them when necessary.
Yes. Most roll forming machine manufacturers custom-build the roller dies based on a dimensioned profile drawing or a physical sample provided by the buyer.
Fascia gutter machines come in two main types:
Factory/Stationary Machines: Heavier, faster, and designed for high-volume in-house manufacturing.
Portable Seamless Gutter Machines: Lighter, more compact, and designed to be mounted inside a trailer or truck to run continuous, seamless gutters directly at the residential or commercial job site.
Because the rollers are often custom-machined to match your specific profile, manufacturing the machine usually takes between 45 to 60 days, plus shipping time.
Conclusion: Scale Your Business with a Top Fascia Gutter Roll Forming Machine
A fascia gutter roll forming machine from Beli RollForming isn’t just equipment—it’s a growth tool. Our 2025 upgraded models offer faster speeds, tighter tolerances, and flexible customization to meet your production goals. As a trusted Chinese exporter, we provide responsive support and a 2-year warranty to keep your line running smoothly.
Beyond our fascia gutter roll forming machine, BELI RollForming also builds machines for half round gutter/square gutters, round/rectangle downspouts, and other components tailored to rainwater downspout systems. Contact us or WhatsApp today for tailored solutions!
