A double layer roll forming machine is an industrial metal forming system that produces two different panel profiles on one machine. The two forming lines are stacked vertically. They share one decoiler, one cutting system, and one PLC control system.
Instead of buying two separate machines, operators can switch between profiles in under 5 minutes via PLC selection — compared to 2–4 hours for a full roll change on a single layer machine.
🏭 O que produz esta máquina de perfilagem de dupla camada?
Nossa versatilidade Máquina de perfilagem de rolos de dupla camada Fabrica dois tipos de painéis personalizáveis, essenciais para diversas indústrias:
Perfis trapezoidais (ex.: AG Panel/Trimdek): Frequentemente utilizado em estruturas comerciais e coberturas industriais devido à sua resistência superior. Se o seu foco é um único perfil de serviço pesado, explore nossa linha especializada. [Máquina de perfilagem de painéis AG] ou o nosso dedicado [Máquina de perfilagem Trimdek] opções.
Perfis ondulados/ondulados (ex.: Orb personalizado/ondulado tradicional): Ideal para telhados residenciais, revestimento de paredes e aplicações agrícolas. Para formatos de ondas tradicionais, veja nossa coleção. [Máquina de perfilagem de painéis metálicos ondulados]. Para designs exclusivos como o Spandek, confira o [Máquina de conformação de rolos esférica personalizada]
Embora esta máquina opere em modo não simultâneo, sua capacidade de alternar rapidamente entre perfis a torna o recurso mais flexível e valioso para empresas que gerenciam requisitos de projetos diversos nos setores de construção, agricultura e indústria.
TL;DR: BELI Double Layer Roll Forming Machine
TL;DR — Double Layer Roll Forming Machine by BELI ROLLFORMING
- ✅ 2 profiles on 1 machine — trapezoidal + corrugated, IBR + step tile, etc.
- ✅ 40+ forming stations — 42CrMo chromed rollers, NSK bearings
- ✅ 12–15 m/min speed | ±2 mm cut accuracy
- ✅ 0.25–0.8 mm material thickness | galvanized, color-coated, aluminum
- ✅ Siemens PLC + Yaskawa inverter | 380V–480V customizable
- ✅ From USD 35,000 FOB Shanghai
- ✅ 24-month warranty (mechanical & hydraulic)
- ✅ 90 working days delivery after deposit
⚙️ Componentes principais: Projetados para precisão e durabilidade
Desbobinador hidráulico
- Capacidade: 3–10 tons (by configuration)
- Mandrel: Motor-driven expanding type (480–520 mm ID)
- Max coil OD: 1200–1500 mm
- Brake: Pneumatic — keeps steady tension to prevent coil overrunning
- Opcional: Coil car for safe loading
Feed & Guide Device
- Hand-wheel adjustable guides
- Keeps material centered and straight entering the forming stations
- Reduces material skew and improves profile accuracy
Double Layer Roll Forming Machine Main Unit
- Two stacked forming lines: typically 15–25 stations per layer
- Rollers: 42CrMo (4140) steel, hard chrome plated, runout ≤±0.03 mm
- Shafts: 40Cr steel, Ø75 mm, HB220–260
- Rolamentos: NSK spherical roller bearings at every shaft support
- Drive: 1.0″ (16B) heavy-duty chain + gear, powered by 7.5 kW motor
- Speed control: Yaskawa frequency inverter

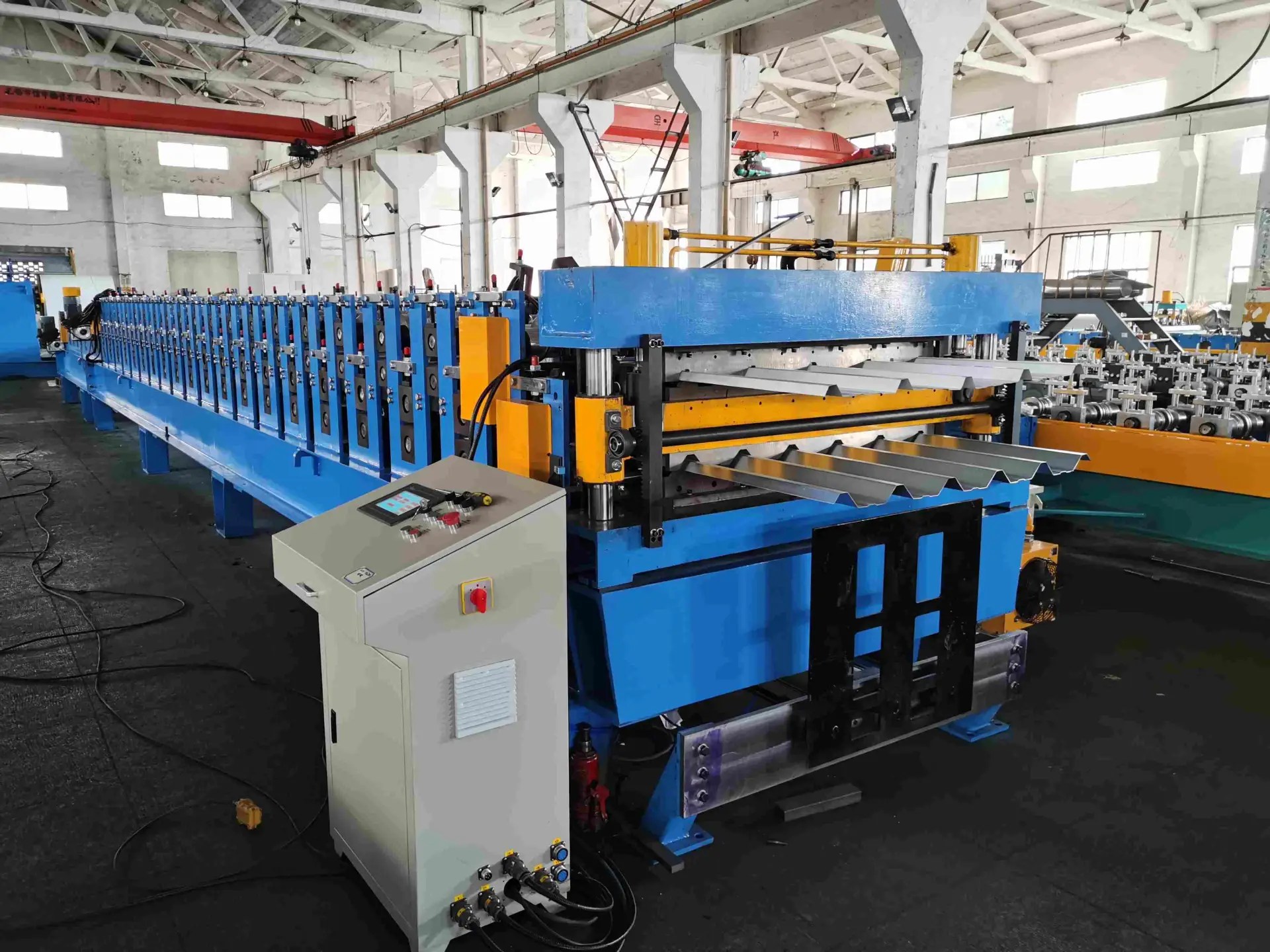

Hydraulic Cutting System
- Tipo: Post-cut hydraulic shearing
- Potência: 7.5 kW hydraulic pump, 12–16 MPa
- Blades: Cr12Mov, HRC 58–62°
- Accuracy: ±2 mm
- Trigger: Omron/Koyo encoder tracks material travel in real time
Sistema de controle PLC
- PLC: Siemens + touch screen HMI
- Inverter: Yaskawa for smooth speed control
- Modes: Automatic and manual
- Languages: English and Chinese
- Características: Speed adjustment, length setting, cut count, fault diagnostics
Stacking System
- Padrão: Two 3m manual collection tables (included)
- Opcional: 6m or 12m pneumatic auto stacker for automated stacking
📝 Especificações técnicas da máquina de perfilagem de dupla camada
Machine Overview
| Parâmetro | Especificação |
|---|---|
| Tipo de máquina | Double Layer Roll Forming Machine (non-simultaneous) |
| Profile Combination | Customizable (e.g., trapezoidal + corrugated, IBR + step tile, roof panel + wall panel) |
| Estações de Formação | 16–24 stations per layer (varies by profile complexity) |
| Velocidade de formação | 12–15 m/min (adjustable) |
| Cut-to-Length Accuracy | ±2 mm |
Especificações do material
| Parâmetro | Especificação |
|---|---|
| Tipo de material | Galvanized steel, color-coated steel, ZINCALUME® steel, COLORBOND® steel, aluminum, stainless steel |
| Resistência ao Escoamento | Min 550 MPa |
| Espessura do material | 0.25–0.8 mm |
| Feed Width | 750–1250 mm (varies by profile design) |
Roller & Shaft Specifications
| Parâmetro | Especificação |
|---|---|
| Material do rolo | 42CrMo (AISI 4140) steel, hard chrome plated |
| Roller Runout | ≤±0.03 mm (concentricity) |
| Material do eixo | 40Cr steel |
| Diâmetro do eixo | Ø75 mm |
| Shaft Hardness | HB220–260 |
Sistema de acionamento
| Parâmetro | Especificação |
|---|---|
| Main Motor | 7.5 -11 KW C motor |
| Tipo de acionamento | 1.0″ (16B) heavy-duty chain + gear transmission |
| Frequency Inverter | Yaskawa |
| Codificador | Omron / Koyo |
Sistema de corte
| Parâmetro | Especificação |
|---|---|
| Método de corte | Hydraulic shearing (post-cut) |
| Cutting Motor | 7.5 kW hydraulic pump |
| Material da lâmina | Cr12Mov, HRC 58–62° |
| Hydraulic Pressure | 12–16 MPa |
Electrical & Control
| Parâmetro | Especificação |
|---|---|
| Sistema PLC | Siemens PLC + touch screen HMI |
| Frequency Inverter | Yaskawa |
| Codificador | Omron / Koyo |
| Operating Voltage | 380V–480V / 3Phase / 50Hz or 60Hz (customizable) |
| Operating Mode | Automatic / Manual |
| Language Interface | English / Chinese |
Desbobinador
| Parâmetro | Especificação |
|---|---|
| Tipo | 3–10 Ton hydraulic decoiler (expanding mandrel type) |
| Max Coil Outer Diameter | 1200 mm |
| Coil Inner Diameter Range | 480–520 mm |
| Drive | Motor-driven expansion + pneumatic brake |
| Loading Method | Optional 5 Ton coil car available |
Bearing
| Parâmetro | Especificação |
|---|---|
| Brand | NSK (spherical roller bearings) |
Stacker (Optional)
| Padrão | 2 × 3m manual collection tables (included) |
| Option A | 6m pneumatic auto stacker — USD 10,000 |
| Option B | 12m pneumatic auto stacker — USD 18,000 |
Double Layer vs Single Layer Roll Forming Machine
| Recurso | Single Layer Machine | BELI Double Layer Machine |
|---|---|---|
| Profiles per machine | 1 profile per machine | 2 profiles per machine (upper + lower layer) |
| Factory floor space | 2 machines needed for 2 profiles | 1 machine = ~50% space saving |
| Profile changeover time | Full roll change: 2–4 hours | PLC layer selection: under 5 minutes |
| Total forming stations | Typically 15–20 stations | 30–50 stations total (varies by profile) |
| Forming speed | 10–20 m/min | 12–15 m/min (single layer active) |
| Simultaneous operation | N / D | No — layers cannot run simultaneously |
| Investment cost | Cost of 2 separate machines | From USD 35,000 (30–40% less than 2 machines) |
| Best suited for | High-volume dedicated production | Mixed / seasonal production of 2 profile types |
| Roller material | Varies by manufacturer | 42CrMo (4140), hard chrome plated |
| Control system | Varies by manufacturer | Siemens PLC + Yaskawa inverter |
| Rolamentos | Varies by manufacturer | NSK spherical roller bearings |
| Garantia | Varies | 24 months (mechanical & hydraulic) |
Applications of Double Layer Roll Forming Machine
BELI double layer machines produce two profile types on one machine — customizable combinations include trapezoidal roof panels, corrugated sheets, IBR profiles, step tiles, and wall cladding panels.
Common uses:
- 🔧 Roofing — warehouses, commercial buildings, houses, farm buildings
- 🏢 Wall Cladding — steel buildings, facades, insulated sandwich panels
- ❄️ Cold Storage — cold room walls and ceilings (corrosion-resistant cladding)
- 🏗️ Prefabricated Buildings — container houses, modular buildings, site offices
- 🌉 Infrastructure — airport hangars, station canopies, highway toll booths
- 🔨 Renovation — replacing old roofs (produce both wall + roof panels on one machine)
Why Choose BELI ROLLFORMING
Build Quality — Global Parts, Fair Price
BELI uses internationally recognized components throughout every machine:
- 🇩🇪 Siemens — PLC and touch screen
- 🇯🇵 Yaskawa — frequency inverter
- 🇯🇵 NSK — bearings
- 🇯🇵 Omron / Koyo — encoders
- 🔩 42CrMo (4140) — chromed rollers
Every machine runs for 48 hours non-stop at the factory before shipment. This catches problems early — so you don’t find them on your factory floor.
BELI vs Chinese Manufacturers
| Recurso | Typical Chinese Maker | PERFILAGEM BELI |
|---|---|---|
| PLC | Domestic or unbranded | Siemens |
| Inverter | Domestic or generic | Yaskawa |
| Rolamentos | Unbranded or domestic | NSK (Japan) |
| Roller material | GCr15 or 45# steel | 42CrMo (4140) |
| Roller treatment | Chrome (variable) | CNC machined + hard chrome |
| Roller runout | ±0.05 mm or uncontrolled | ≤±0.03 mm |
| Shaft hardness | Not specified | HB220–260 |
| Cutting blade | Generic Cr12 | Cr12Mov, HRC 58–62° |
| Factory testing | None or brief | 48-hour run test |
| Codificador | Unbranded | Omron / Koyo |
| Spare parts | Usually none | Full kit included |
| Garantia | 12 months (limited) | 24 months |
| Overseas install | Usually not available | Available (5–10 days) |
| After-sales | WhatsApp only | Dedicated manager + remote support |
Bottom line: Many Chinese makers cut costs with unbranded parts, cheaper steel, and no factory testing. BELI charges more because Siemens/Yaskawa/NSK components and 48-hour testing cost more — but they last longer and break down less.
BELI vs US / European Manufacturers
| Recurso | US / European Maker | PERFILAGEM BELI |
|---|---|---|
| Machine price | USD 120,000–250,000 | USD 35,000–80,000 |
| PLC | Siemens / Allen-Bradley | Siemens |
| Rolamentos | SKF / Timken / FAG | NSK (equivalent) |
| Roller material | 4140 / D2 / tool steel | 42CrMo (4140 equivalent) |
| Lead time | 16–24 weeks | 90 working days |
| Custom profile design | $5,000–15,000 extra | Included |
| Tensão | Standard (e.g., 480V/60Hz) | Personalizável |
| After-sales response | 1–4 weeks (parts) | 3–5 days (air freight) |
| Training | Usually included | Included (up to 2 operators) |
| Spare parts cost | 2–4× higher | Standard pricing |
| 5-year total cost | USD 180,000–350,000+ | USD 55,000–110,000 |
Bottom line: US and European machines cost 3–5× more for similar specs. Same core brands (Siemens, NSK), a fraction of the price. BELI also provides overseas installation and a 24-month warranty that beats the Chinese 12-month standard.
What Makes BELI Different
80+ Engineers — Deep R&D and production expertise. Factory manager Peter Xu: 30+ years experience.
Global Component Brands — Siemens, Yaskawa, NSK, Omron. Parts available worldwide.
48-Hour Factory Run Test — Every machine tested non-stop before shipping. Problems caught early.
Custom Profile Design Included — No extra charge for roll tooling design. Send your drawing or sample.
Turnkey Service — Design → Build → Test → Ship → Install → Train → Support. Full cycle.
Transparent Pricing — Standard vs optional items clearly listed. No hidden fees.
Full Spare Parts Kit — Limit switches, encoder, NSK bearings, seals, fittings. Enough for the first year.
Working Video
Warranty & Delivery
Garantia
- 🕐 24 months from installation date
- ✅ Covers: mechanical and hydraulic parts (labor + replacement)
- ❌ Excludes: electrical components, wear parts, damage from misuse or poor maintenance
- ⏰ Based on single-shift (40 hrs/week) — pro-rata for multi-shift
Delivery
- 📦 90 working days after 30% deposit
- 🚢 FOB Shanghai, China
Payment
- 💳 30% deposit (non-refundable) + 70% before shipment
- 📋 Quote valid for 30 days (subject to exchange rate)
Installation & Training
- 👷 Overseas installation available (extra cost)
- ⏱️ 5–10 days on-site (setup, calibration, test runs, training)
- 👨🔧 Up to 2 operators trained
Spare Parts Included
- Limit switches ×3, encoder ×1, NSK bearings ×5
- Pneumatic fittings ×5, hydraulic fittings ×5
- O-ring seals, hydraulic hoses, and other consumables
❓Perguntas frequentes (FAQ)
It is a machine that produces two different metal profiles on one base. Common combinations: trapezoidal + corrugated, IBR + step tile, roof panel + wall panel. The two layers share one decoiler, one cutter, and one PLC. They cannot run at the same time — you switch layers on the PLC in under 5 minutes.
Starting from USD 35,000 FOB Shanghai. Price depends on profile types, material thickness, and optional equipment. Popular add-ons: coil car (1,500–3,500),autostacker(1,500–3,500),umutostumcker(8,000–20,000). Contact BELI for a confirmed quote.
Galvanized steel, color-coated steel, ZINCALUME®, COLORBOND®, aluminum, and stainless steel. Thickness: 0.25–0.8 mm. Yield strength: up to 550 MPa. Feed width: 750–1250 mm (varies by profile). Custom configs available.
A single layer machine makes one profile. To switch, you need a full roll change (2–4 hours). A double layer has two stacked forming lines sharing one base. You switch profiles in under 5 minutes via PLC. It saves ~50% floor space e 30–40% investment vs buying two machines.
12–15 meters per minute. Driven by a 7.5 kW motor with Yaskawa inverter for speed control. Actual speed depends on material and profile type.
Siemens PLC and touch screen, Yaskawa inverter, Omron/Koyo encoder, NSK bearings. All CE certified. Supports automatic and manual modes. English and Chinese interface.
42CrMo (4140) steel, hard chrome plated. Runout: ≤±0.03 mm. Shafts: 40Cr steel, Ø75 mm, HB220–260. Sizing rollers at key stations for shape control.
24 months from installation. Covers mechanical and hydraulic parts. Excludes electrical components and damage from misuse. Based on single-shift operation.
90 working days after deposit. Overseas installation available (5–10 days on-site: setup, calibration, testing, training). Payment: 30% deposit + 70% before shipment, FOB Shanghai.
Conclusão
A BELI double layer roll forming machine is a smart investment when you need to produce two different profiles — without buying two machines, without doubling your floor space, and without spending hours on roll changes.
Here is what you get with BELI:
- ✅ 2 profiles on 1 machine — switch in under 5 minutes via Siemens PLC
- ✅ Built to last — 42CrMo chromed rollers, NSK bearings, Cr12Mov cutting blades
- ✅ Global brands — Siemens PLC, Yaskawa inverter, Omron/Koyo encoder
- ✅ Tested before shipping — 48-hour non-stop factory run test
- ✅ Garantia de 24 meses — double the standard Chinese 12-month warranty
- ✅ Full support — custom profile design, overseas installation, operator training, spare parts kit
- ✅ Fair price — from USD 35,000 FOB Shanghai (30–40% less than two single machines)
Not sure which profile combination suits your market? Contact our sales team with your profile drawings or reference samples. We will recommend the best configuration for your needs — at no extra cost.
📞 Get a free quote: enquiry@belirollforming.com | WhatsApp: +8618616927760
