🛠️ Solar Panel Mounting Frame Roll Forming Machine | Automated Precision & High-Efficiency Production
Beli RollForming’s Solar Panel Mounting Frame Roll Forming Machine is a comprehensive production system designed for manufacturing steel frames used in photovoltaic (PV) module mounting. This complete line processes HSLA70KS/ZAM115 steel coils (0.6mm thickness, 155mm width) through 45 precision roller stations at speeds of 15-30 meters per minute, producing finished frames with ±1.0mm/3m accuracy.
💡 The Core Output: What Our Solar Panel Mounting Frame Roll Forming Machine Produces
Our machine’s primary output is the essential, high-strength mounting structure for photovoltaic (PV) modules. These frames are critical for securing panels, distributing weight, and enduring extreme environmental loads (wind, snow).
Material Flexibility: Production handles lightweight, rust-proof Aluminum frames and heavy-duty, cost-effective Galvanized Steel frames.
Target Applications:
Residential Solar: Lightweight, non-intrusive rooftop frame solutions.
Commercial & Utility-Scale Farms: Durable, high-volume frames designed for 25+ year lifecycles and massive panel arrays.
Focus on Consistency: Every frame produced by our Solar Panel Mounting Frame Roll Forming Machine ensures universal compatibility with major solar panel brands.

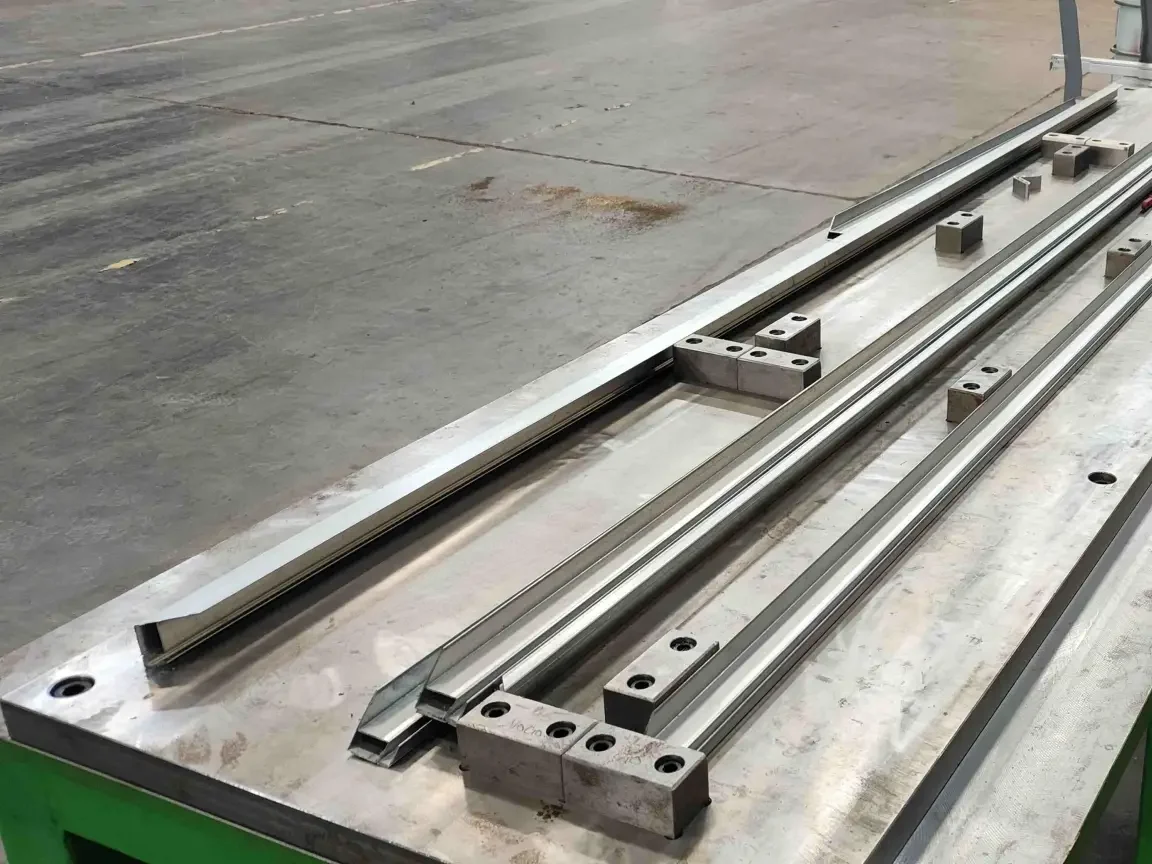

☀️Solar Panel Mount Frame Drawing

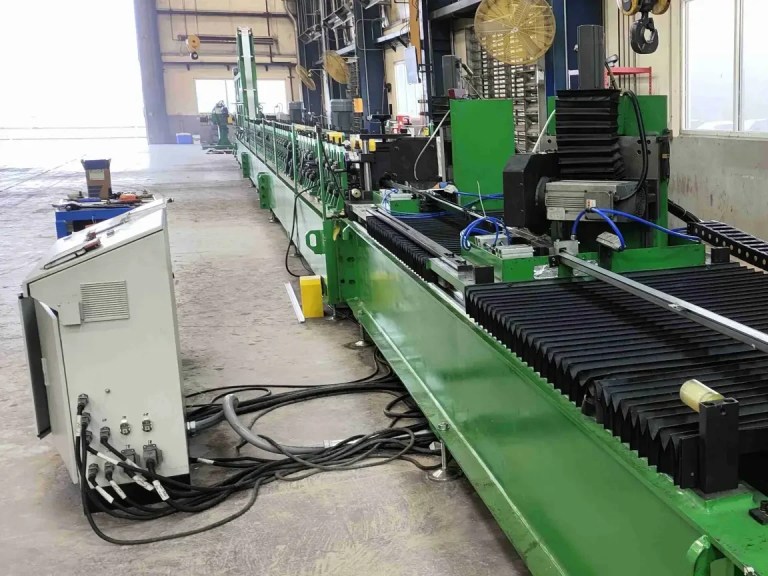

⚙️ Key Components of the Beli RollForming Machine for Solar Frame Production
This modular, heavy-duty production line is engineered for non-stop, 24/7 operation. The integration of advanced features ensures maximum uptime and superior product quality.
1. Zero-Downtime Coil Handling

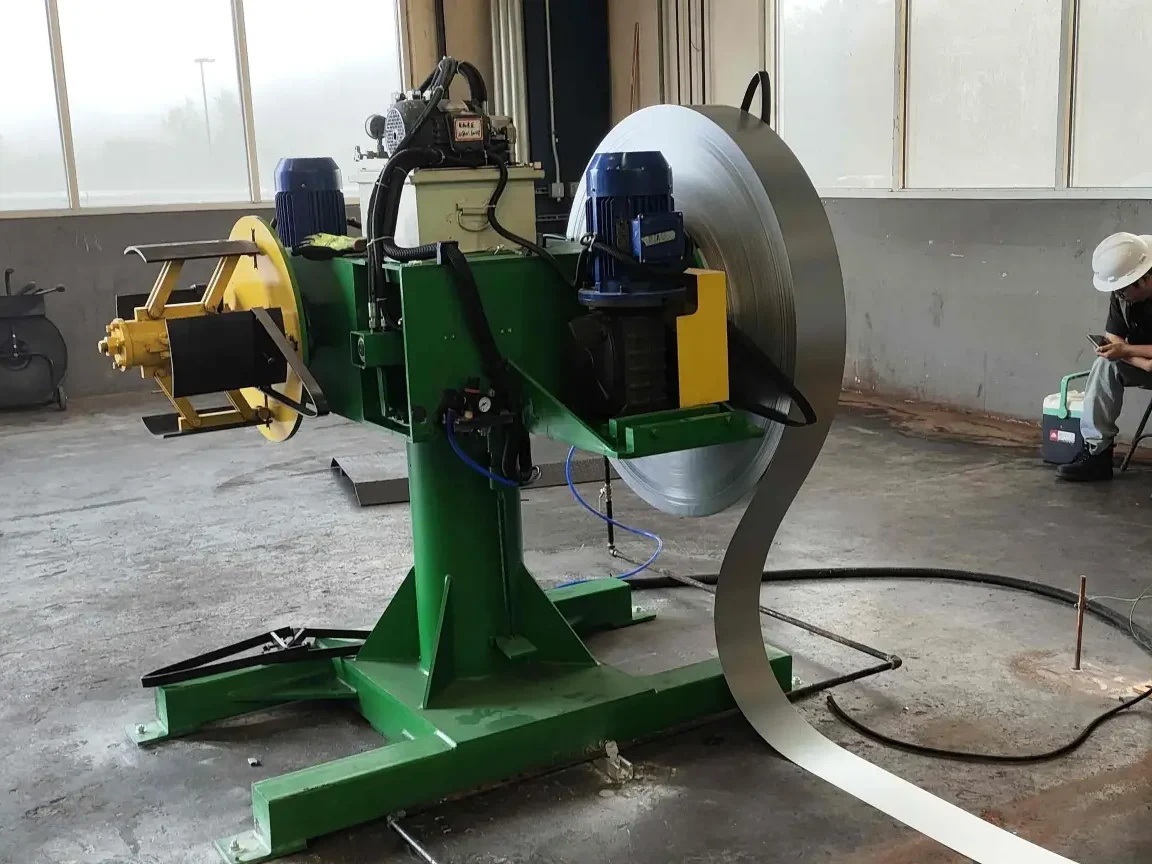

Double Head Uncoiler: Hydraulic system supports dual coils (up to 10-ton optional), eliminating reel change downtime.

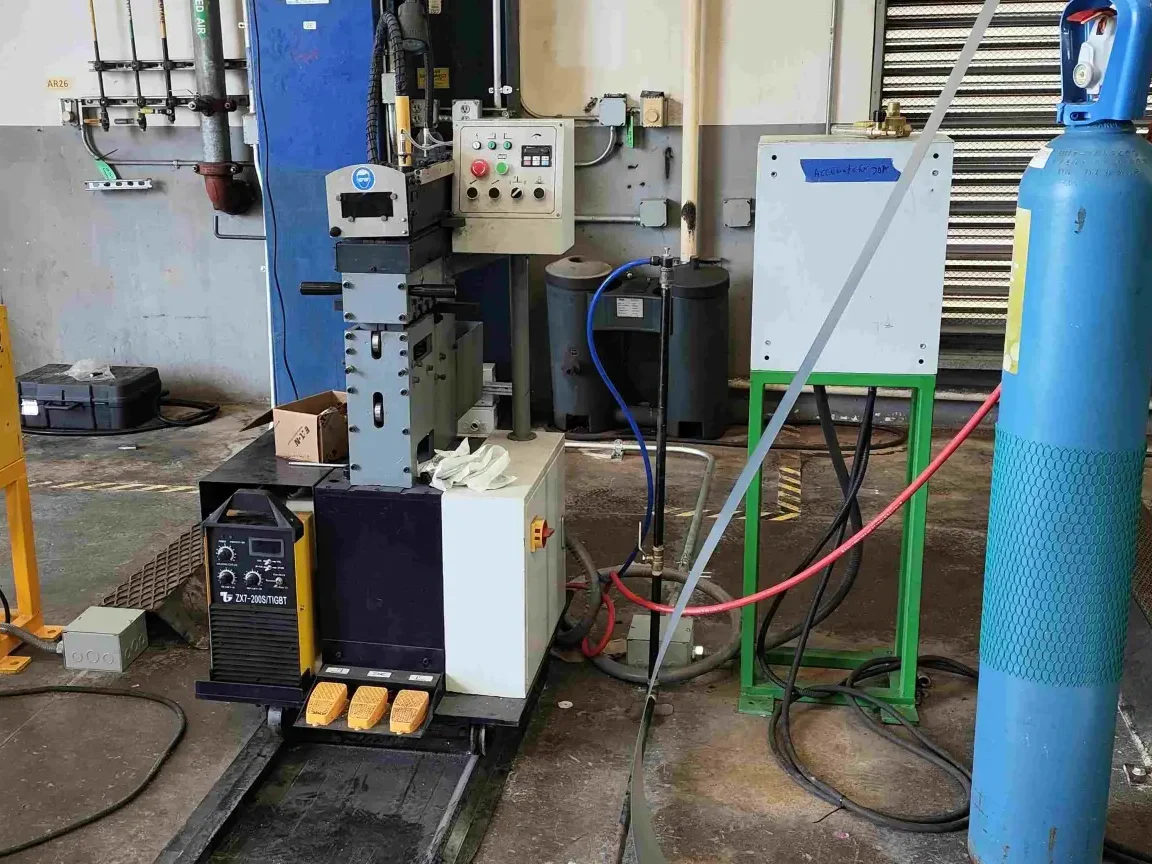

Coil Ends Shearing & Butt Welder: Automates the joining of new coil ends for truly non-stop material feeding.

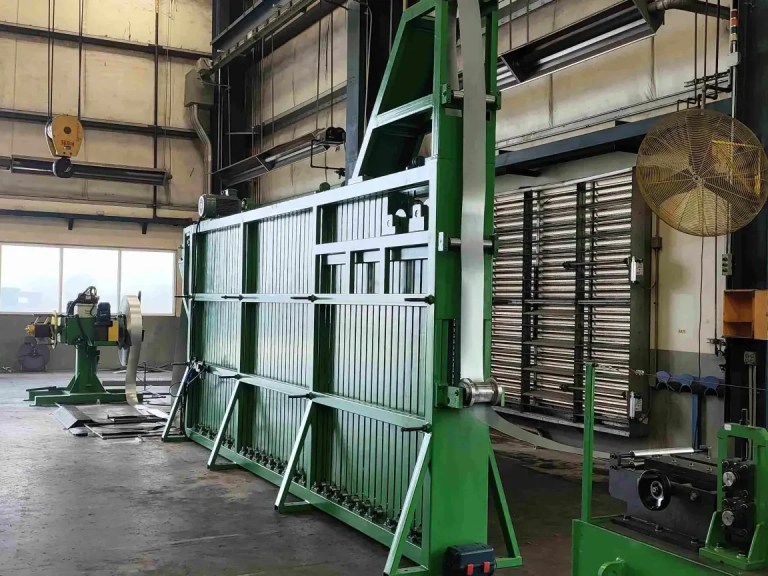

Vertical Material Storage Accumulator: Holds 100+ meters of coil, allowing reel changes while the main line is running (boosting uptime by 30%).
2. High-Precision Forming & Cutting
The Core: Roll Forming Machine: 48 forming stands with GCr15 bearing steel rollers for exceptional wear resistance.
Flying 45º Saw Cutting: Servo-driven technology delivers clean, burr-free cuts to exact lengths at speeds up to $\mathbf{20\ m/min}$.
3. Integrated Automation & Control
Auto Punch Holes System: Creates mounting holes with ultra-tight ±0.5 mm accuracy, eliminating secondary drilling.

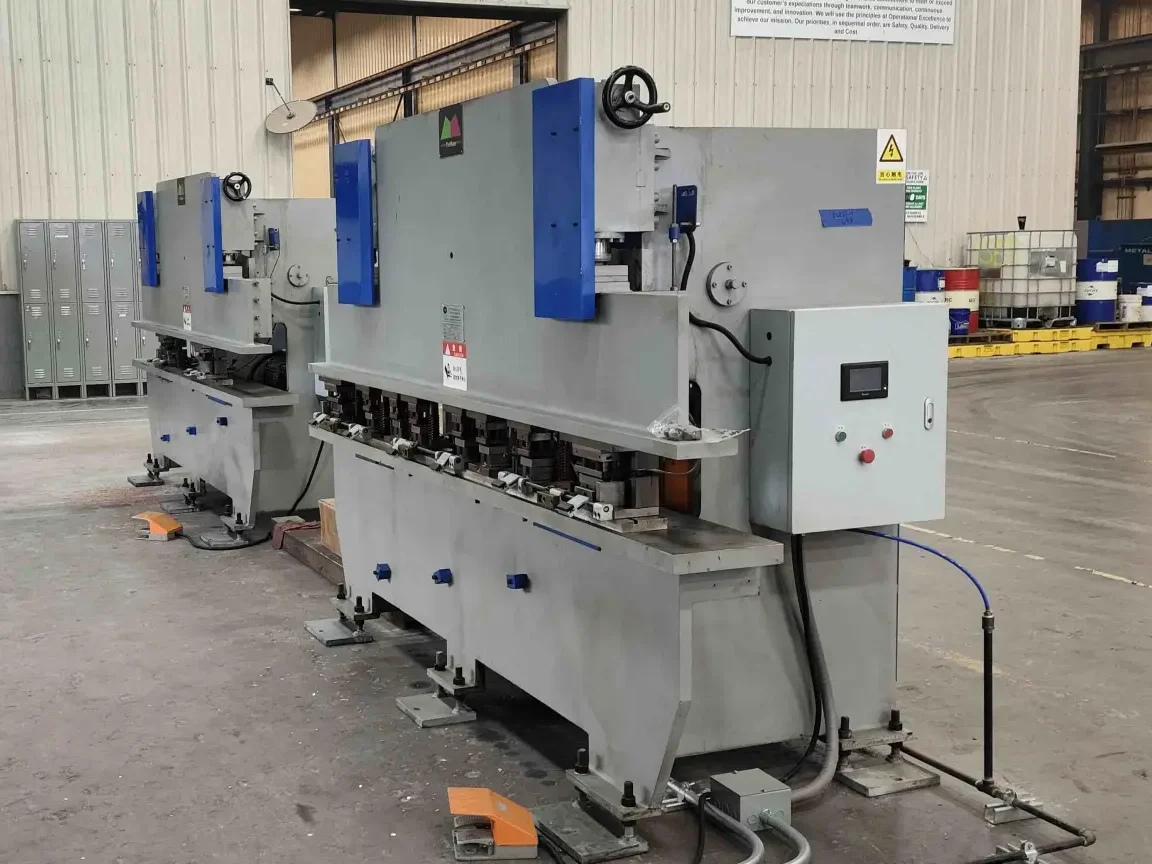

Auto Corner Key Assembly System: A unique, labor-free unit for reinforcing frame joints with consistent strength.
PLC Controller (Siemens/Allen-Bradley): User-friendly HMI allows operators to save frame recipes and manage error detection, ensuring quick changeovers.
📊 Technical Specifications of Our Solar Panel Mounting Frame Roll Forming Machine
Choose standard or upgraded options to match your needs:
Parameter | Standard Option | Optional Upgrade |
|---|---|---|
Uncoiler Type | Double Head Hydraulic | Single Head Manual |
Uncoiler Capacity | 3 Ton | 5 Ton |
Material | Galvanized Steel | Aluminum |
Thickness | 0.6 mm | 0.8-1.0 mm |
Product Length | Long edge: 2384 mm Short Edge: 1303 mm | Customizable |
Feeding Width | 155 mm | Customizable |
Roller Material | GCr15 Bearing Steel | D 2 |
Forming Stands Quantity | 48 Stations | Subject to final design |
Forming Stands Type | Cast-Iron | Steel Plate Welded |
Driven System | Gear box | Chain and Gear |
Cutting Type | Flying 45° Saw | Hydraulic Shear Cutter |
Line Speed | 15-20 m/min | Up to 30 m/min |
Voltage | 480V/60Hz/3Ph | 380V/50Hz/3Ph (Custom) |
Why Beli RollForming Stands Out
Complete Integration — Single production line includes: uncoiler, shearing/welder, accumulator, 45-station roll forming, laser marking, servo saw cutting, and punching system
Professional Components — Only named brands:
- Siemens S7-200 SMART PLC
- Yaskawa inverter
- NSK bearings
- Schneider plugs
- Autonics sensors
- Beijing Huade hydraulic valves
Precision Engineering — 45 roller stations with CR12MO (HRC58-62) rollers deliver ±1.0mm/3m precision
Clear Terms — Transparent pricing, documented specifications, 120-day lead time
Beli Rollforming VS Mid-Tier China VS US Manufacturer
| Specification | Beli RollForming | Mid-Tier China | US Manufacturer |
|---|---|---|---|
| Roll Forming Line Price | $169,000 | $80,000-120,000 | $350,000-450,000 |
| Complete Line Price | 239,000−244,000 | $120,000-180,000 | $500,000-600,000 |
| Material Spec | HSLA70KS/ZAM115, 0.6mm | General steel | Full range |
| Line Speed | 15-30 m/min | 8-25 m/min | 20-40 m/min |
| Production Cycle | 3 sec/piece | 5-8 sec/piece | 2-4 sec/piece |
| Roller Stations | 45 stations | 20-30 stations | 35-50 stations |
| Tolerance | ±1.0mm/3m | ±1.5-2.0mm/3m | ±0.5mm/3m |
| Control System | Siemens S7-200 SMART | Basic PLC | Siemens/AB Premium |
| Punching Force | 63 Ton × 2 | 30-40 Ton | 50-80 Ton |
| Lead Time | 120 days | 60-90 days | 6-12 months |
| Warranty | 12 months | 6-12 months | 24-36 months |
| Payment Terms | 30/70 | 30/70 or L/C | 30/70 |
| Shipping | FOB Shanghai | FOB China | DDP available |
Customer Testimonials
"We switched from extrusion to Beli RollForming's solar frame machine 18 months ago. The difference in our production efficiency has been remarkable. Our material waste dropped from 25% to under 2%, and we're now producing 450,000 frames monthly with just two operators. The machine paid for itself in 14 months — faster than the 18 months Beli projected."
Marcus Weber
SunModule Europe GmbH, Germany
"As a distributor of solar mounting solutions in the US market, I needed equipment that could handle diverse profile requirements from different clients. The quick-change cassette system allows us to switch between five different frame profiles in under two hours total. This flexibility has helped us win contracts we would have lost to competitors with less adaptable equipment."
Peter M,D
SolarMount Distribution
"We needed frames for commercial rooftop installations across multiple building types. Beli RollForming's ability to customize profiles was essential — they engineered a 45x35mm aluminum frame specifically for our roof mounting system. The collaboration took about six weeks from initial discussion to first production run. The custom profile has become one of our best-selling mounting solutions."
David Chen
SkyPower Commercial
📞 Conclusion & Next Step
If you’re looking for a Solar Panel Mounting Frame Roll Forming Machine that delivers speed, precision, and scalability—Beli RollForming is your choice. Our 9-station line combines industry-leading technology with modular design to help you dominate solar frame production.
Ready to get started? Contact us for a custom quoteor watch our machine in action. Let’s build the future of solar—together.
❓ Frequently Asked Questions (FAQ)
A solar panel mounting frame roll forming machine is specialized manufacturing equipment that uses cold roll forming technology to produce steel frames for solar panel mounting. Beli RollForming’s machine transforms HSLA70KS/ZAM115 steel coils (0.6mm thickness, 155mm width) into precision mounting frames through 45 progressive roller stations at speeds of 15-30 meters per minute.
The Beli RollForming Solar Panel Mounting Frame Roll Forming Machine achieves line speeds of 15-30 meters per minute, processing material at 0.6mm thickness. With a production cycle of 3 seconds per piece, the machine delivers high-volume output for solar frame manufacturing.
The Solar Panel Mounting Frame Roll Forming Machine processes HSLA70KS/ZAM115 steel (or equivalent materials) with specifications:
- Thickness: 0.6mm
- Coil width: 155mm
- Coil weight: up to 3,000 kg per side
- Coil diameter: Inner 480-520mm, Outer up to 1,350mm
Yes, our line is a complete, automated solution. It features an integrated Auto Punch Holes System for precise mounting holes and a Flying 45° Saw Cutting unit. Both are servo-driven, delivering a high degree of accuracy (±0.1 mm tolerance) and eliminating the need for off-line post-processing.
We ensure quality through three main factors:
Servo Control: Servo motors and PLC control maintain precise tension and speed throughout the process.
Durable Tooling: Rollers are made from durable GCr15 bearing steel, guaranteeing long-term profile accuracy.
In-Line Assembly: The unique Auto Corner Key Assembly System reinforces joints consistently, eliminating manual variability.
Absolutely. Our Solar Panel Mounting Frame Roll Forming Machine features a modular design, and the number of forming stands is expandable (from 36 to 48). While the tooling (rollers) is specific to the frame profile, the machine is designed for fast tooling changes and can be customized to produce unique U-channels, Z-profiles, or other proprietary solar panel mounting frame designs upon request.
As a leading Chinese exporter, we provide comprehensive support:
Detailed training for your operators.
Remote diagnostics and technical support via the PLC system.
A robust warranty covering all key components.
Fast spare parts availability to minimize downtime.
Beli RollForming provides:
- 12-month warranty on all equipment
- On-site installation and commissioning supervision
- Professional operator training
- Remote technical support
- Spare parts included (encoders, sensors, bearings, punch pins, saw blades)
- Engineers available Monday-Friday, 8:00am-4:00pm
- Lead Time: 120 working days from order confirmation and deposit receipt
- Payment Terms:
- 30% non-refundable security deposit upon order
- 70% balance paid before delivery
- FOB Shanghai, China (freight, insurance, customs not included)
