Beli RollForming, a leading manufacturer and exporter of roll forming machines in China, specializes in delivering high-performance solutions for global steel fabrication. Our flagship High Speed C Z Purlin Roll Forming Machine is designed to meet the growing demand for fast, precise, and cost-effective purlin production—critical for construction, agriculture, and commercial projects worldwide. With a focus on innovation and durability, this machine combines speed, accuracy, and flexibility to help you scale your business and stay ahead of competition.

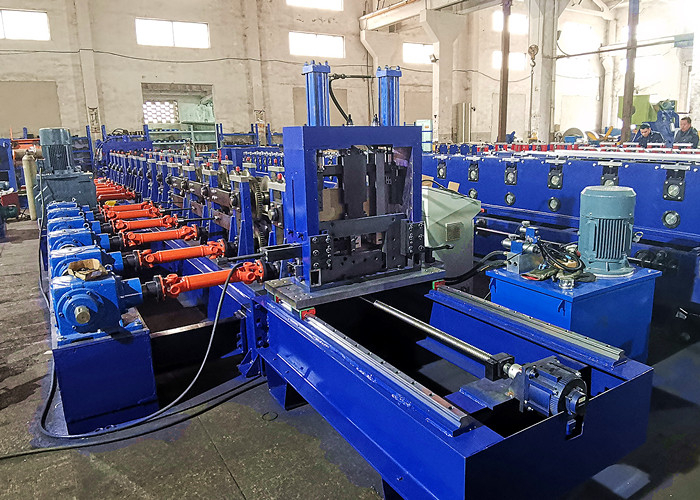

Description of the High Speed C Z Purlin Roll Forming Machine
The High Speed C Z Purlin Roll Forming Machine is a specialized automated system built to produce C-shaped and Z-shaped purlins—essential structural steel components for roof and wall framing. Unlike traditional machines, our unit prioritizes speed without compromising quality: it can produce up to 40 meters of purlin per minute, reducing labor costs and increasing output. Equipped with PLC controls, hydraulic cutting, and adjustable roller stands, it’s perfect for manufacturers looking to handle large orders with consistency.
What Does This Machine Produce? C/Z Purlin Applications Explained
This machine manufactures C purlins (curved profiles) and Z purlins (angular profiles)—cold-formed steel sections used to support roofs, walls, and ceilings. Here’s how they’re used:
C Purlins: Ideal for residential roofs, small warehouses, and agricultural sheds. Their curved shape provides excellent load distribution for lightweight structures.
Z Purlins: Preferred for industrial buildings, large retail spaces, and warehouses with wide spans. Their overlapping design offers superior strength and reduces material waste.
According to the Steel Construction Institute (SCI), cold-formed steel purlins like those produced by our machine are 20% more sustainable than hot-rolled alternatives—they use less raw material and are 100% recyclable. This makes them a top choice for eco-friendly construction projects.
Learn more about purlin introduction from Wikipedia
Key Components of the High Speed C Z Purlin Roll Forming Machine
Our machine is built with heavy-duty, precision-engineered parts to ensure long-term reliability:

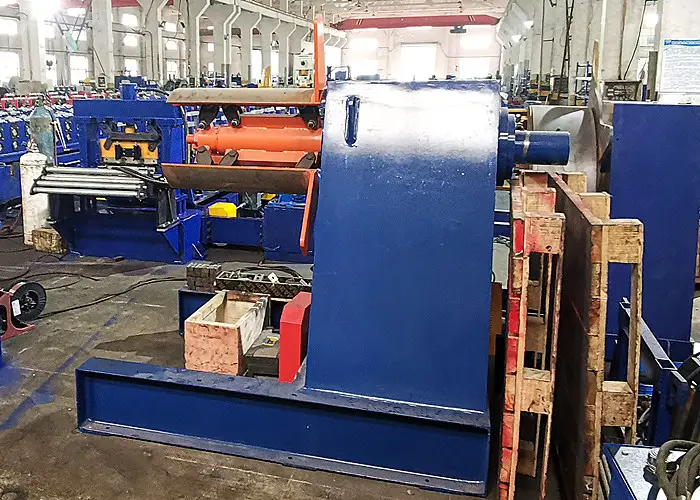

High-Speed Hydraulic Uncoiler
Options: Manual or Hydraulic (capacity: 5-15 tons). Features automatic decoiling and tension control to prevent material jamming.

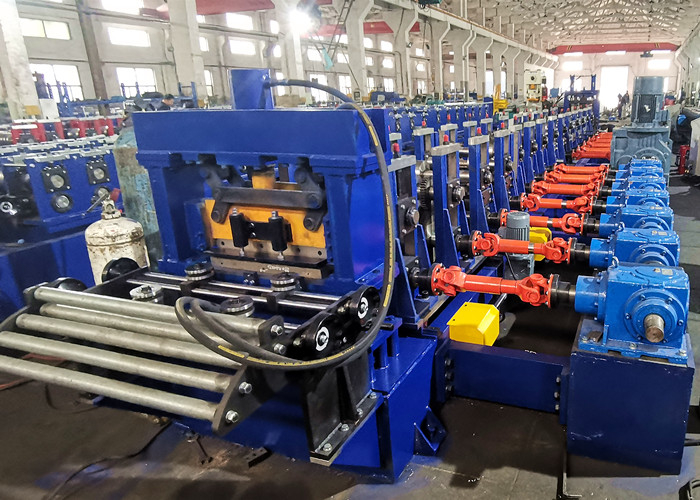

Precision Roller Stands
Roller Material: GCr15 bearing steel (hardened and ground for wear resistance).
Quantity: 20-24 stands (adjustable based on purlin size).
Type: Adjustable shafts for quick profile changes.
PLC-Controlled Automation System
A touchscreen interface allows operators to program settings (e.g., length, quantity) and monitor production in real time. Reduces human error and increases efficiency.

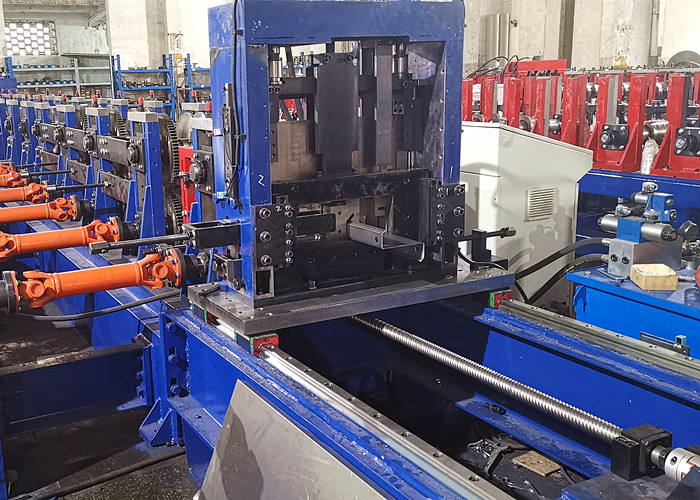

Flying Shear Cutting System
Cutting Type: Hydraulic flying shear (accuracy: ±0.5mm). Cuts purlins to length while the machine is running—no downtime between cuts.
Material Handling System
Conveyor belts and stackers automatically collect finished purlins, minimizing manual labor.
Brief Specification Parameters (With Options)
Below is a table of standard specifications—customizations are available for specific project needs:
Parameter | Standard Option | Optional Choices |
|---|---|---|
Uncoiler Type | Hydraulic | Manual |
Uncoiler Capacity | 5 Tons | Up to 20 Tons |
Material | Galvanized Steel Coil | Hot Roll, Cold Roll, SS Steel |
Thickness | 1.5-3.0 mm | 4.0 mm (with roller and power upgrades) |
Coverage Width | 80-300mm (C/Z Purlins) | Custom widths (up to 400mm) |
Feeding Width | 490-510mm | Adjust to coil width |
Roller Material | GCr15 Bearing Steel | D 2 |
Forming Stands Quantity | 22 Stands | 24-28 Stands |
Forming Stands Type | Cast-Iron | Steel Plated Welded |
Driven System | Gear Box | Chain And Gear |
Cutting Type | Hydraulic Flying Shear | Guillotine Cut (for thick materials) |
Line Speed | 40 m/min | 5-10m/min to up to 60 m/min |
Voltage | 380V/50Hz | 480V/60Hz (for international markets) |
Conclusion: Invest in Speed, Quality, and Growth with Beli’s Machine
Beli RollForming’s High Speed C Z Purlin Roll Forming Machine is more than just equipment—it’s a tool to grow your business. With its ability to produce 40+ meters per minute, customizable configurations, and durable components, it’s designed to handle the demands of global construction projects. Whether you’re manufacturing for residential roofs or industrial warehouses, this machine delivers consistent, high-quality purlins that meet international standards.
As a trusted exporter, Beli RollForming offers full after-sales support—including installation training, spare parts, and maintenance services. We’ve supplied machines to over 30 countries, helping manufacturers scale their production and stay competitive.
Ready to take your purlin production to the next level? Contact our team today to request a personalized quote or schedule a factory visit. Let’s build the future of steel construction together!
Frequently Asked Questions (FAQs)
Our High Speed C Z Purlin Roll Forming Machine is engineered for efficiency. It typically achieves production speeds of 30 to 60 meters per minute, depending on the punching requirements and the specific profile dimensions.
Changing profiles is seamless. This machine utilizes an automated PLC control system (often powered by Siemens or Schneider) to adjust the rollers. You do not need to manually dismantle rollers or spacers.
By simply entering the data into the touch screen, the High Speed C Z Purlin Roll Forming Machine automatically adjusts the station gap and shearing tooling, reducing changeover time from hours to just a few minutes.
The machine is designed to handle heavy-duty industrial needs. Generally, it supports a material thickness range of 1.5mm to 3.0mm using Galvanized Steel or Black Steel coils.
If your project requires processing thicker materials (up to 4.0mm), we can customize the hydraulic station and motor power to ensure the machine remains stable and durable.
Yes, Beli RollForming prioritizes reliability. We equip our machines with top-tier components from globally recognized brands. This usually includes PLC systems from Siemens (Germany) or Delta (Taiwan), and bearings from SKF.
Using standardized parts ensures that if you need a replacement part in the future, you can easily find it locally. You can read more about standard industrial automation components Siemens Automation
Absolutely. One of the primary benefits of a High Speed C Z Purlin Roll Forming Machine is its versatility. It acts as an all-in-one solution.
The web width (usually 80mm–300mm) and flange height are fully adjustable via the control panel. This allows you to produce a vast array of C and Z profile specifications without purchasing multiple machines, maximizing your ROI.
We stand by our manufacturing quality. Beli RollForming offers a 2-year warranty on main parts (excluding consumables like cutter blades).
We also provide lifetime technical support. If you encounter issues, our engineers can assist via video call 24/7.
Maintenance is straightforward but vital for high-speed operations. Key steps include:
Lubrication: Regularly grease the chain and bearing parts every month.
Hydraulic Oil: Check the hydraulic station oil level and clean the filter.
Sensors: Ensure the encoder and cut-to-length sensors are free of dust.
Regular maintenance ensures the machine maintains its “high speed” accuracy for years. Study More at Roll Forming Machine Maintenance
As a direct manufacturer, we strive for speed. The standard manufacturing time for a High Speed C Z Purlin Roll Forming Machine is approximately 60 to 75 working days after design confirmation.
We ensure the machine is tested, anti-rust oil is applied, and it is securely loaded into the container before shipping from our factory in China.
