What Is a Z Purlin Roll Forming Machine?
A high-efficiency Z purlin roll forming machine is your automated solution for producing consistent, high-strength Z-shaped purlins for steel buildings. This industrial workhorse transforms flat steel coils into precise Z profiles using a continuous sequence of precision rolls.
Unlike slow, error-prone manual fabrication, our roll former guarantees every purlin meets strict dimensional standards—a non-negotiable for structural integrity. Equipped with programmable controls, operators can easily adjust settings for various steel grades, thicknesses, and coil widths, making it the ideal machine for manufacturers who demand reliable, high-volume output.
What Does Our Z Purlin Roll Forming Machine Produce? Applications of Z Purlins

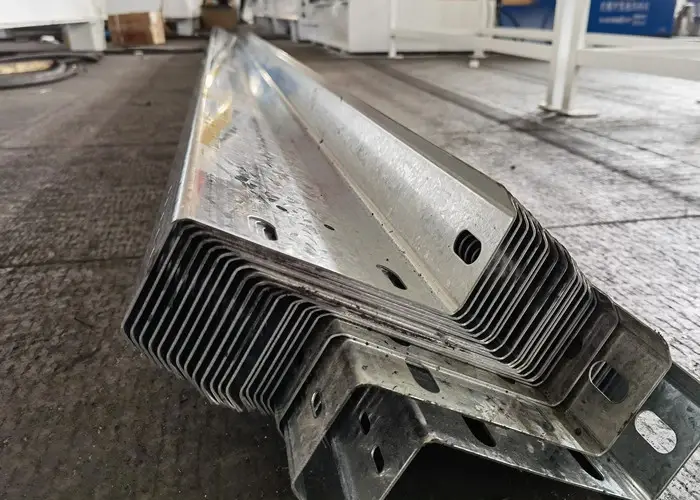

Our machine produces Z purlins—versatile building components used in both commercial and residential projects. Z purlins act as roof trusses, wall supports, and framing for metal buildings. Their interlocking design simplifies installation, cutting labor time and costs for contractors.
You’ll find our purlins in:
Warehouses and factories: Where heavy loads and wide spans require durable framing.
Retail centers: For lightweight yet strong roof systems.
Residential complexes: In metal-roofed homes, where Z purlins provide a clean, modern look.
Because our machine ensures uniform thickness and shape, these purlins resist bending, corrosion, and extreme weather. Builders trust them for projects that demand longevity and safety—key reasons why our clients call our Z purlin roll forming machine a “game-changer” for their business.
Read more about C and Z purlin applications from the SteelCorp ↗
Z Purlin Profile Drawing and Dimensions
Beli RollForming offer a complete range of Z purlin roll forming machines designed to match your specific production requirements and investment level. Whether you’re a growing fabricator or a large-scale manufacturer, we have the right solution.
Choose from:
Fully Automatic Changeover Systems: Perfect for high-volume, high-mix production with minimal downtime.
Semi-Manual Changeover Systems: A cost-effective and robust solution for more standardized production runs.
Our versatile machines are engineered for a wide range of profiles, featuring adjustable web sizes from 100mm to 450mm and flange sizes from 50mm to 200mm. With thickness up to 4.5 mm full hard material.
Key Components of Beli RollForming’s Z Purlin Roll Forming Machine
Boost your production efficiency with our Z Purlin Roll Forming Machine. Engineered for 24/7 reliability, this fully automatic production line transforms raw steel coils into precise, high-strength Z purlins with minimal downtime.
We designed every component for high-speed operation and low maintenance, ensuring your manufacturing line achieves maximum uptime and a rapid return on investment. This Z purlin machine is the ideal solution for steel fabrication, pre-engineered buildings, and construction suppliers demanding accuracy and speed.
Key features of our automatic Z purlin line include:

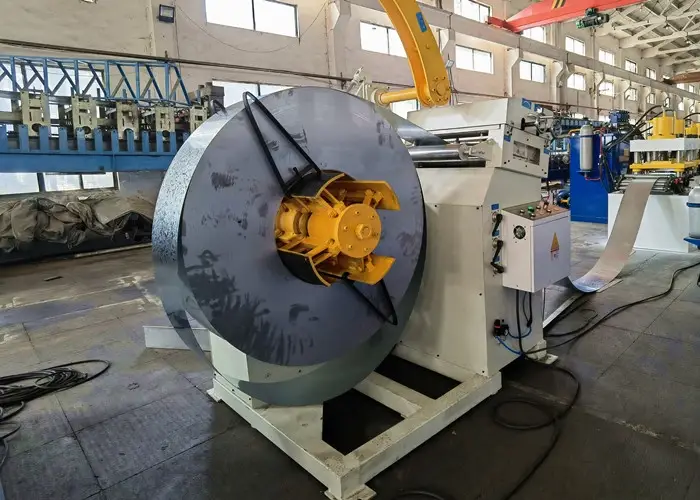

Stable Coil Handling (Uncoiler): Securely feeds steel coils (up to 10 tons) for continuous operation. Choose from manual or high-volume hydraulic models to match your workflow.

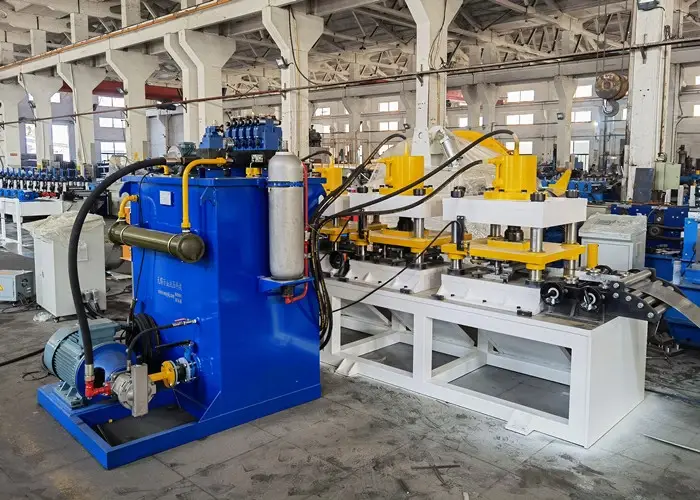

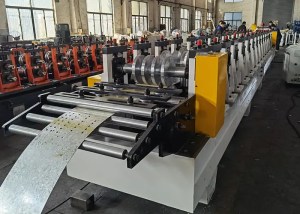

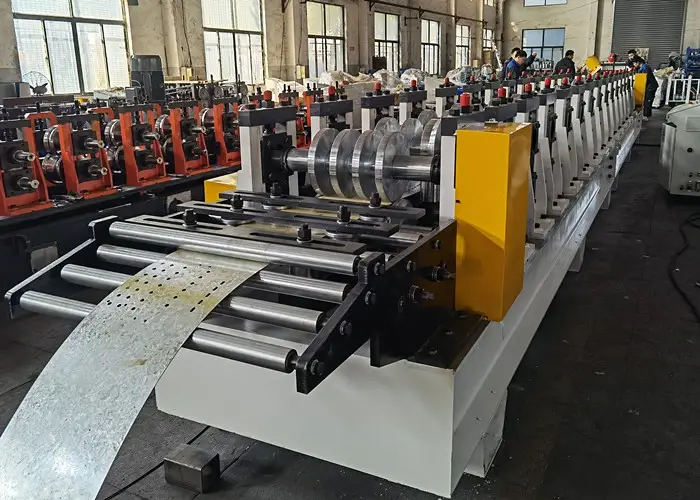

High-Speed Servo Punching: A precision servo feeder and puncher integrated before the forming process ensures accurate hole placement at maximum line speed.
Durable, Precision Forming (18-24 Stands): Features robust GCr15 bearing steel rollers (or optional CR 12 Mov) to precisely shape the Z purlin profile, guaranteeing smooth, consistent results on every piece.

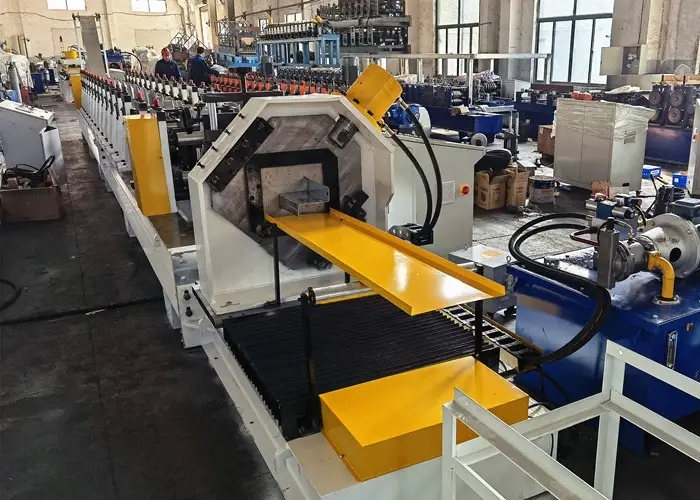

Advanced Cutting Solutions: Select a hydraulic shear for fixed-length cutting or a flying shear for non-stop, continuous production. Both systems deliver clean, accurate cuts and minimize material waste.
Smart PLC Automation: An intuitive touchscreen control panel allows operators to program and adjust length, thickness, and speed settings in seconds. Store project “recipes” to instantly switch between different client specifications.
Profile Support (Run-Out Table): A roller-equipped table supports finished purlins as they exit the line, preventing any warping or deformation.
Detailed Specifications of Our Z Purlin Roll Forming Machine
To help you choose the right model, here’s a spec table with standard and optional features:
Parameter | Standard Option | Optional Upgrade |
|---|---|---|
Uncoiler Type | Manual | Hydraulic |
Uncoiler Capacity | 5 Tons | 10 Tons |
Material | Galvanized Steel, Cold Roll | Stainless Steel |
Thickness | 1.5-3.0 mm | 2.5-4.5 mm |
Web Width | 100-300 mm | 100-450 mm |
Flange Width | 50-100 mm | 80-200 mm |
Roller Material | GCr15 Bearing Steel | CR 12 Mov |
Forming Stands Quantity | 16-18 Stands | 20–24 Stands |
Adjustment Method | Manual | Automatic |
Driven System | Chain Drive | Gear Box |
Cutting Type | Stationary Hydraulic Shear | Flying Shear |
Line Speed | 0–8 m/min | 0–20 m/min |
Voltage | 380V/50Hz | 480V/60Hz |
All specs can be customized to meet your specific production needs—we work with you to tailor the machine to your target materials and output goals.
Conclusion
If you’re looking to boost production capacity, improve product quality, or stay ahead in the competitive construction market, Beli RollForming’s Z purlin roll forming machine is the right choice. With its robust design, advanced features, and customizable options, it delivers consistent results for projects of any size.
Contact us today to learn more about our Z purlin roll forming machine—or request a custom quote tailored to your business needs. We’re here to help you grow!*
