Cable Tray Roll Forming Machine for Saudi Arabia: A High-Speed Buyer’s Guide

Saudi Arabia is building fast. New cities, data centers, factories, and power plants need safe cable routing. A cable tray roll forming machine for Saudi Arabia helps local manufacturers produce perforated trays, ladder trays, trunking, and covers at scale. The right line cuts labor costs, meets regional standards, and keeps pace with Vision 2030 infrastructure goals.

This guide explains what makes a perfiladora de bandejas portacables ready for the Saudi market. We focus on Believe Industry’s proven advantages: automatic width adjustment, three punch speed options, and multi-profile output from one line.

Why Saudi Arabia Needs Local Cable Tray Production

The Kingdom is diversifying beyond oil. Mega-projects like NEOM, the Red Sea Project, and Qiddiya are driving demand for electrical support systems. Imported trays are costly and slow. Local production solves both problems.

A Cable Tray Roll Forming Machine for Saudi Arabia offers a faster payback than relying on imported trays. A Línea de producción de bandejas portacables built for Saudi conditions should handle galvanized steel, hot-rolled coils, and stainless steel. It should also produce profiles that match local contractor preferences. Short delivery times matter. So does compliance with SASO and international standards.

What a Cable Tray Roll Forming Machine Does

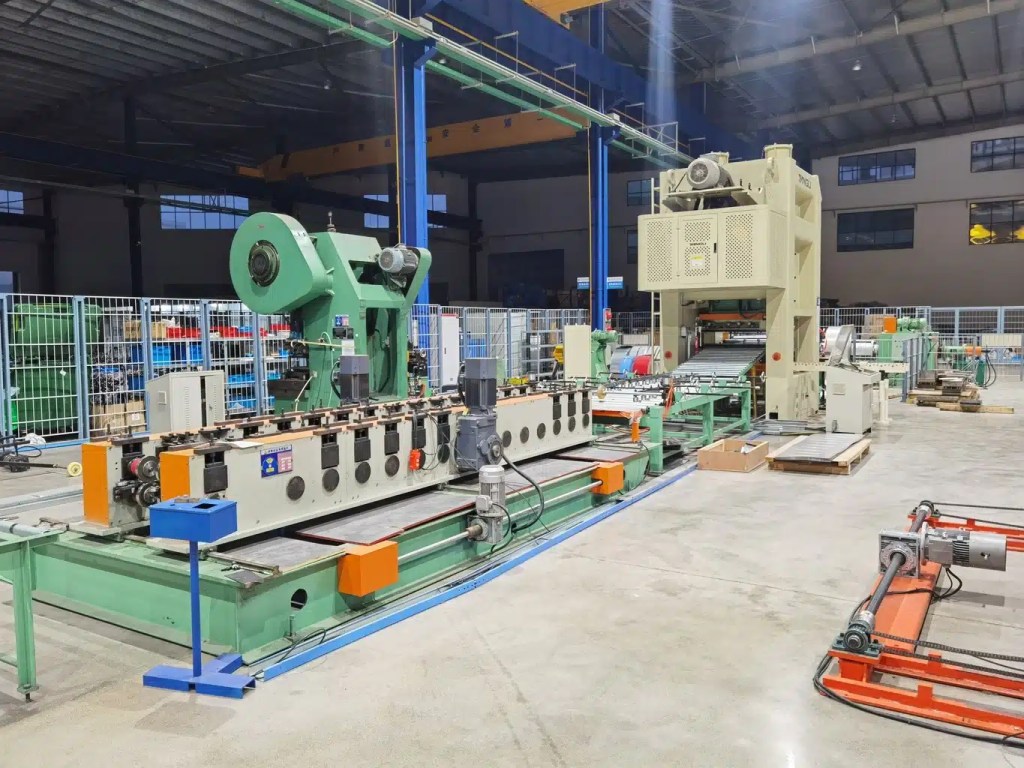

A perfiladora de bandejas portacables turns a flat metal coil into a finished cable tray. The process includes uncoiling, leveling, punching, forming, cutting, and stacking. Each station bends the strip a little more until the final cross-section is ready.

Modern machines use PLC control. Operators enter length, width, and hole patterns on a touchscreen. The line then runs automatically. This reduces setup time and human error.

Supplier Comparison: Believe Industry vs China vs US/EU

Not all cable tray machine suppliers offer the same value. Below is a side-by-side comparison of Believe Industry, typical China suppliers, and US/EU suppliers.

Factor	Industria Believe	Otros proveedores de China	US/EU Suppliers
Precio	Competitive, factory-direct	Lower possible, but inconsistent	Premium, often 2–3x higher
Personalización	High, profile-specific tooling	Variable, sometimes limited	Standardized, limited custom
Max forming speed	Hasta 15 m/min	Typically 5–8 m/min	Hasta 20 m/min
Width range	50–1000 mm	50–300 mm common	50–600 mm common
Delivery time	60–90 días	45–120 days	120–180 days
Soporte postventa	On-site global commissioning	Often remote only	Strong but expensive
Standards	CE, ISO, NEMA, IEC, SASO ready	Varies widely	Full local certifications

Believe Industry sits in the middle. It offers China-level pricing with export-grade support and flexible customization.

Believe Industry Equipment Advantages

Believe Industry has shipped máquinas perfiladoras to more than 50 countries. Their cable tray systems are designed for export markets, including the Middle East. Here are the three key advantages.

1. Automatic Width Adjustment from 50 mm to 600 mm (Up to 1000 mm)

Cable tray widths vary by project. Some jobs need 50 mm trays for light control cables. Others need 600 mm trays for heavy power bundles. Believe Industry’s machine covers 50–600 mm as standard. Optional setups can reach 1000 mm.

The width adjustment is automatic. Operators do not need to change rollers manually. This saves hours during changeovers. It also improves repeatability from batch to batch. For Saudi manufacturers serving multiple contractors, this flexibility is a major cost advantage.

2. Three Punch Options for Different Speed Requirements

Punching is often the bottleneck in a cable tray line. Believe Industry offers three punching solutions. Each balances speed, tooling cost, and hole quality.

Punch Method	Velocidad	Lo mejor para
Servo hydraulic punching	2–3 m/min	Complex patterns, lower volume, lower tooling cost
Servo hydraulic punch press punching	4–6 m/min	Medium volume, balanced speed and precision
Servo high-speed mechanical punch press punching	12–15 m/min	High volume, simple patterns, maximum throughput

En unidad de perforación uses servo motors for precise hole placement. Hydraulic systems handle thicker material. Mechanical punch presses deliver the highest speed for long runs. Buyers can choose the option that matches their order mix and budget.

3. One Machine Produces Multiple Cable Tray Types

A single Believe Industry line can produce several products. This reduces capital investment and factory floor space. Supported profiles include:

Profile	Forma	Uso típico
Inner bend cable tray	Inward return edges	Compact cable runs, tight corners
Outer bend cable tray	Outward return edges	Standard commercial installations
Cable tray cover	Flat or slightly formed cover	Dust and overhead protection
Cable tray trunk	Deep channel profile	High-density cable routing

Switching between profiles is fast. Quick-change tooling and saved recipes on the PLC make it practical. For a Saudi factory, this means one machine can serve construction, oil and gas, data center, and power plant customers.

Saudi Standards and International Compliance

Cable trays in Saudi Arabia must meet safety and quality requirements. Local projects often reference NEMA, IEC, and NFPA standards. A formadora de rodillos para bandejas portacables estándar NEMA ensures compatibility with North American specifications used in many oil and gas projects.

En NFPA 70 National Electrical Code defines installation rules. IEC standards cover international performance requirements. Buyers should confirm that the machine can produce trays that meet the relevant standard before signing a contract.

Material Handling and Line Layout

Un completo Línea de producción llave en mano de bandejas portacables includes more than just the forming mill. Typical components are:

Hydraulic uncoiler with loading car
Straightener or leveler
Servo feeder
Punching unit
laminadora de perfilado
Flying shear or hydraulic cutter
Auto stacker or run-out table

Good material handling prevents coil jams and profile distortion. A aplanadora perfiladora removes coil curvature before punching. This improves hole accuracy and final profile quality.

Installation and After-Sales Support

Buying a machine from abroad is only the start. Roll forming machine installation and commissioning must be planned carefully. Believe Industry provides on-site support, operator training, and spare parts. Their experience with export packaging and shipping reduces customs delays.

Long-term support matters too. A mantenimiento preventivo del proceso de laminado plan keeps uptime high. D2 or GCr15 rollers last longer when lubrication and inspection schedules are followed.

Cable Tray vs Cable Ladder: Know the Difference

Some buyers confuse cable trays with cable ladders. They serve similar purposes but have different designs. A bandeja de cables frente a escalera de cables comparison helps you choose the right product line.

Característica	Bandeja de cables	Escalera de cables
Base	Solid or perforated sheet	Open rungs between two side rails
Lo mejor para	Power and control cables, dust protection	Heavy cables, long spans, ventilation
Typical widths	50–1000 mm	150–900 mm
Ventilation	Moderado	Alto
Common markets	Commercial, data centers, industrial	Oil and gas, power plants, heavy industry

Some factories produce both to maximize market coverage.

If you plan to produce ladder trays, consider a perfiladora de bandejas portacables. It forms the side rails and rungs in a coordinated process.

Pricing and ROI

The price of a Cable Tray Roll Forming Machine for Saudi Arabia depends on width range, punching speed, automation level, and auxiliary equipment. A basic perforated tray line starts lower. A high-speed automatic line with multi-profile tooling costs more but pays back faster.

The Saudi market is price-sensitive but quality-driven. Cheap machines often have hidden costs: poor tooling, weak frames, and limited support. A Guía de compra de máquinas para bandejas portacables helps you compare real total cost of ownership, not just the invoice price.

Conclusión

A cable tray roll forming machine for Saudi Arabia must handle wide trays, punch fast, and switch profiles quickly. Believe Industry’s design meets these needs with automatic width adjustment from 50 mm to 600 mm (extendable to 1000 mm), three servo punch options from 2–3 m/min up to 12–15 m/min, and multi-profile output from one machine.

Local manufacturing in Saudi Arabia is growing. The right equipment helps you win contracts, reduce lead times, and meet local and international standards. Contact a fabricante de perfiladoras with proven export experience to discuss your specific profile and speed requirements.

Preguntas frecuentes

What width range should a cable tray machine for Saudi Arabia handle?

Most projects need 50–300 mm. Heavy industrial and power plant jobs may require 600 mm or more. A machine rated up to 1000 mm future-proofs your investment.

Can one machine make both cable trays and covers?

Yes. Believe Industry’s line produces inner bend trays, outer bend trays, covers, and trunking by changing tooling and selecting the recipe on the PLC.

Which punch option is best for high-volume production?

The servo high-speed mechanical punch press runs at 12–15 m/min. It is ideal for long runs with standard hole patterns.

How long does installation take?

Typical installation and commissioning take 2–4 weeks, depending on line complexity and local preparation. Experienced suppliers provide on-site support throughout the process.

What certifications should I look for?
