Μηχανή σχηματισμού ρολού σανίδας ικριώματος

Speed is a critical factor for ROI. Our standard μηχανή σχηματισμού κυλίνδρων σανίδων ικριωμάτων typically operates at a speed of 10 to 15 meters per minute.

However, this speed can vary depending on the complexity of the punching pattern. Since scaffold planks require dense anti-slip perforations, the punching process often dictates the overall line speed. For clients requiring higher output, we can integrate a high-speed servo feeder and a rotary punching press to significantly increase efficiency.

Scaffolding safety relies heavily on material strength. Our machines are engineered to process Galvanized Steel coils (GI) or Cold Rolled Steel with a thickness range typically between 1.2mm and 2.0mm.

If your market requires heavy-duty planks (up to 2.5mm or 3.0mm), we can customize the rollers and the hydraulic cutting power to accommodate these thicker gauges without compromising the machine’s lifespan.

Yes, versatility is key. While a standard machine is fixed to one profile, we offer adjustable μηχανή σχηματισμού κυλίνδρων σανίδων ικριωμάτων models.

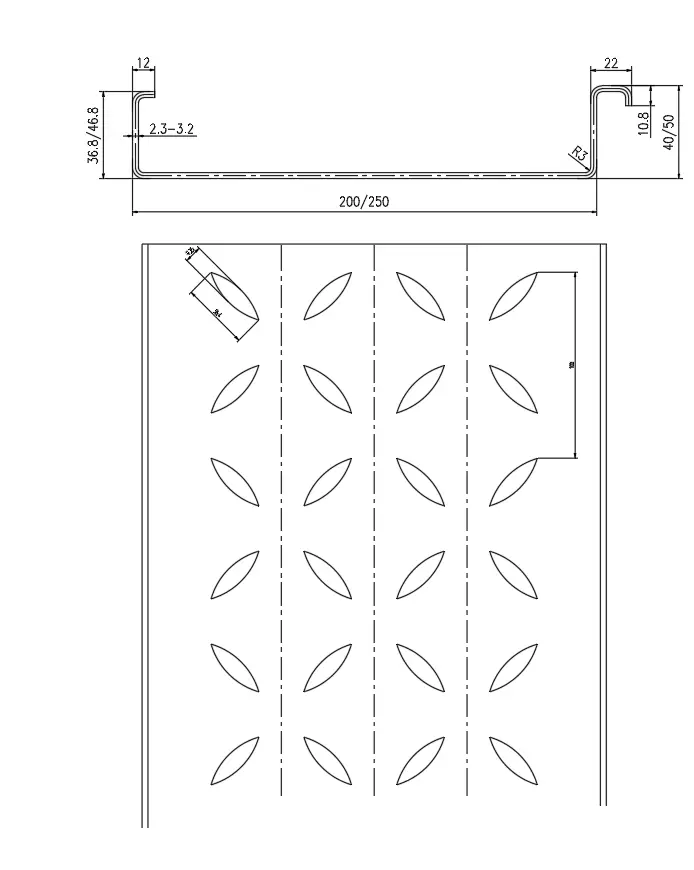

Through an automated width-adjustment system, you can produce planks of varying widths—common sizes include 210mm, 225mm, 240mm, and 250mm—on a single machine. This flexibility allows you to meet diverse customer demands without purchasing multiple machines.

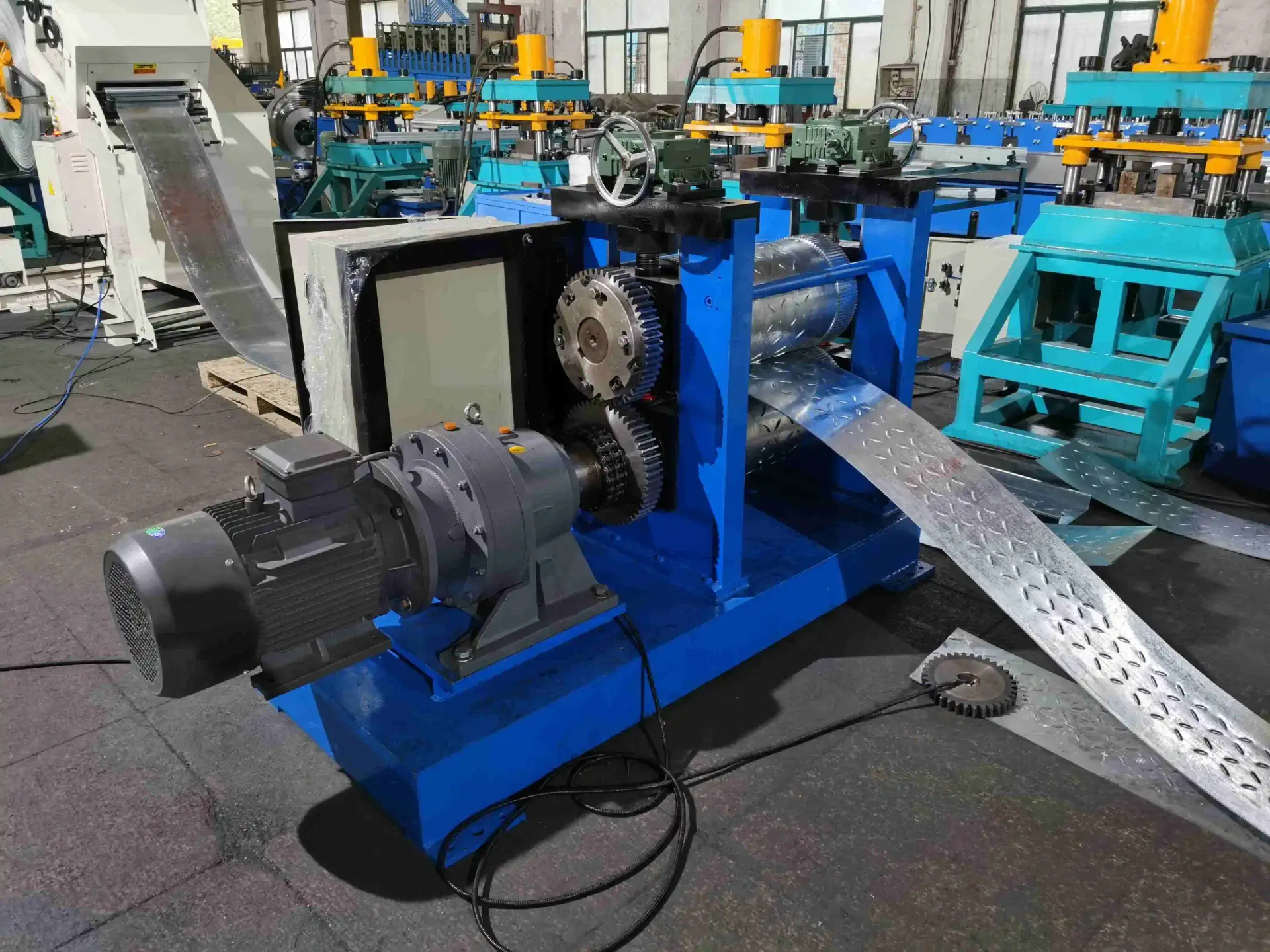

The anti-slip “embossing” or holes are created before the roll forming process. The line includes a hydraulic punching press or a mechanical press.

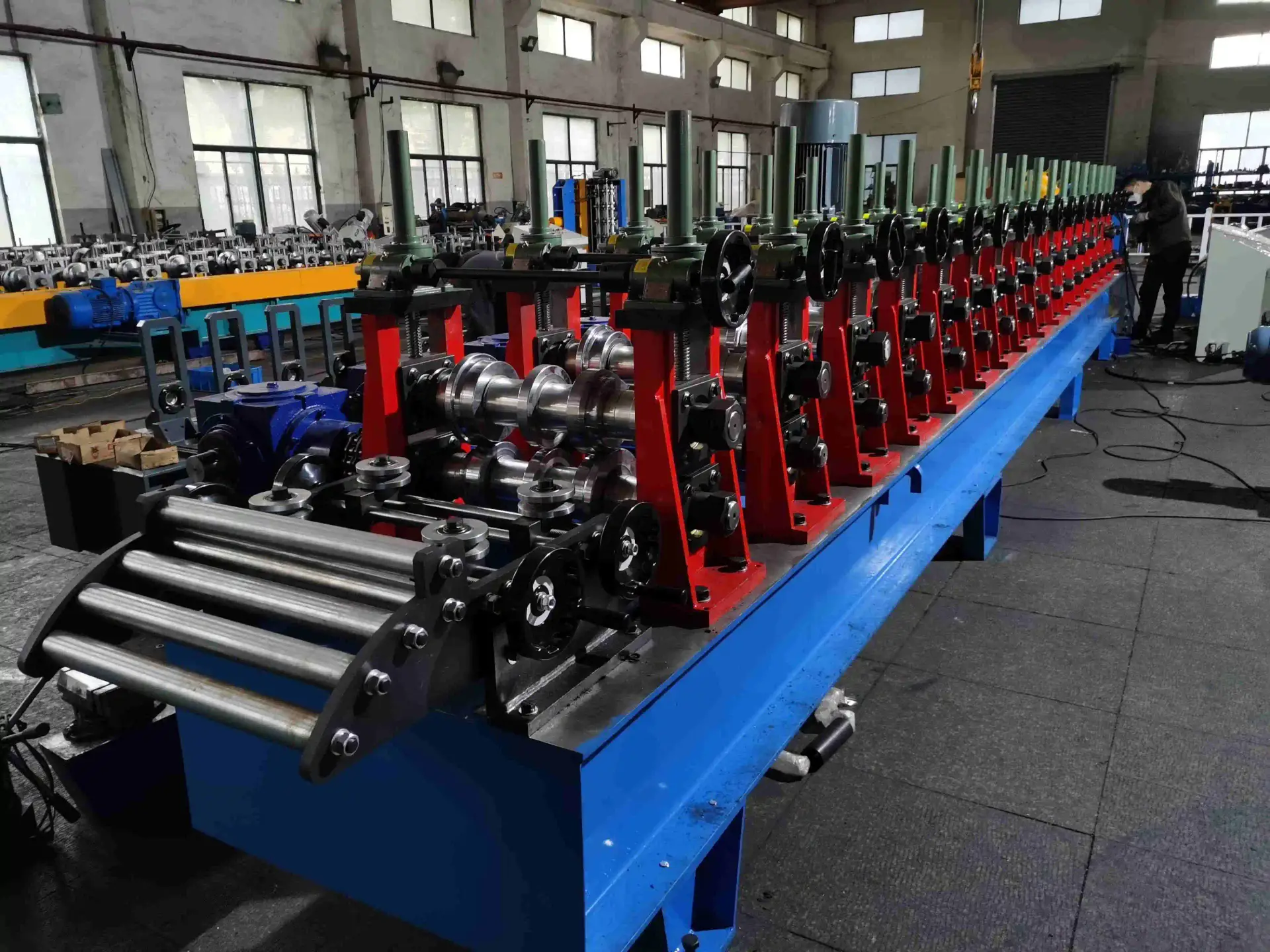

To ensure precision, we use a servo feeder that feeds the steel strip into the press with sub-millimeter accuracy. This ensures that the anti-slip holes and the water drainage slots are perfectly aligned every time.

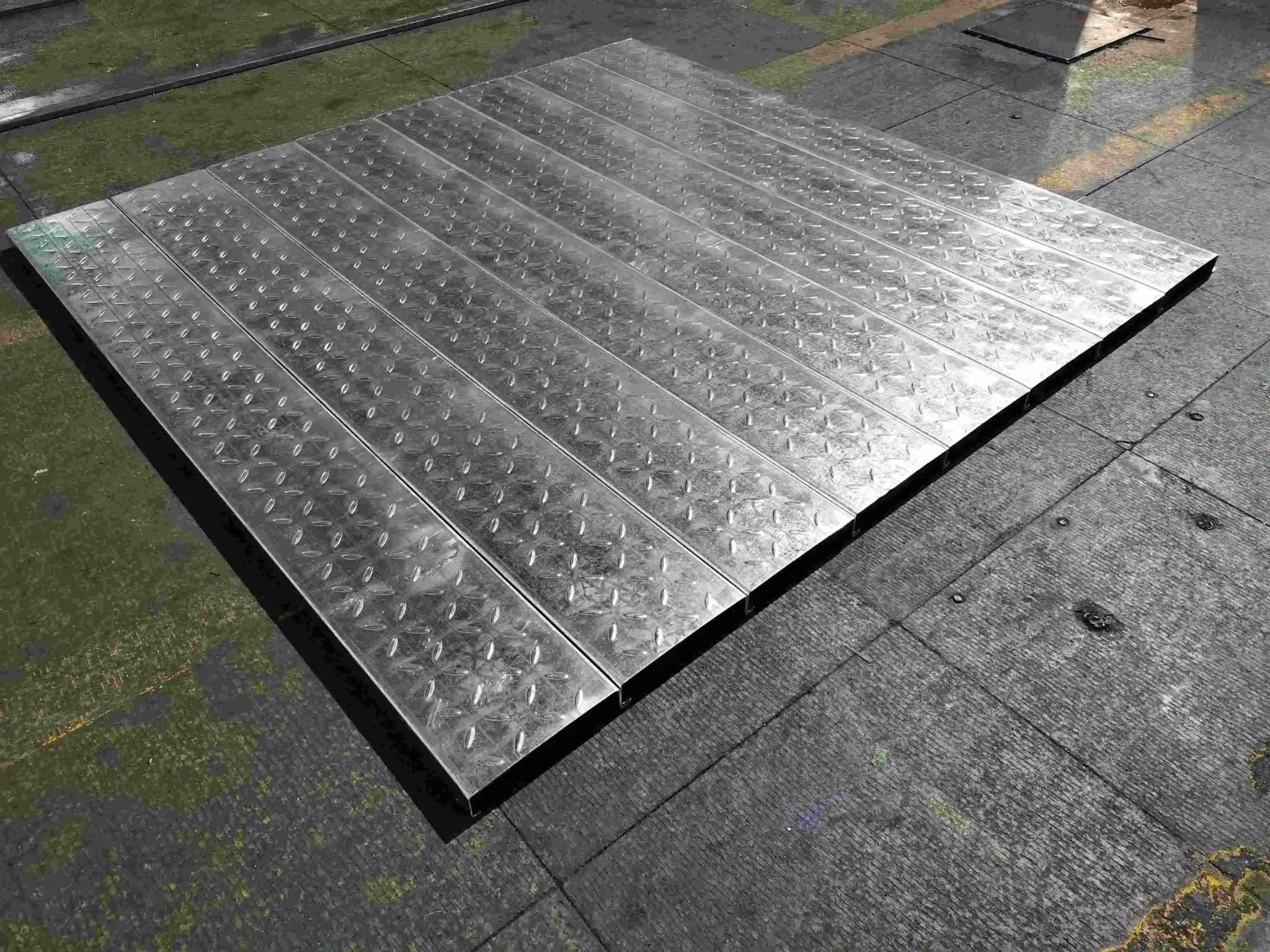

The unique “box” profile of a scaffold plank provides its structural integrity. This is achieved through the multi-station roll forming process.

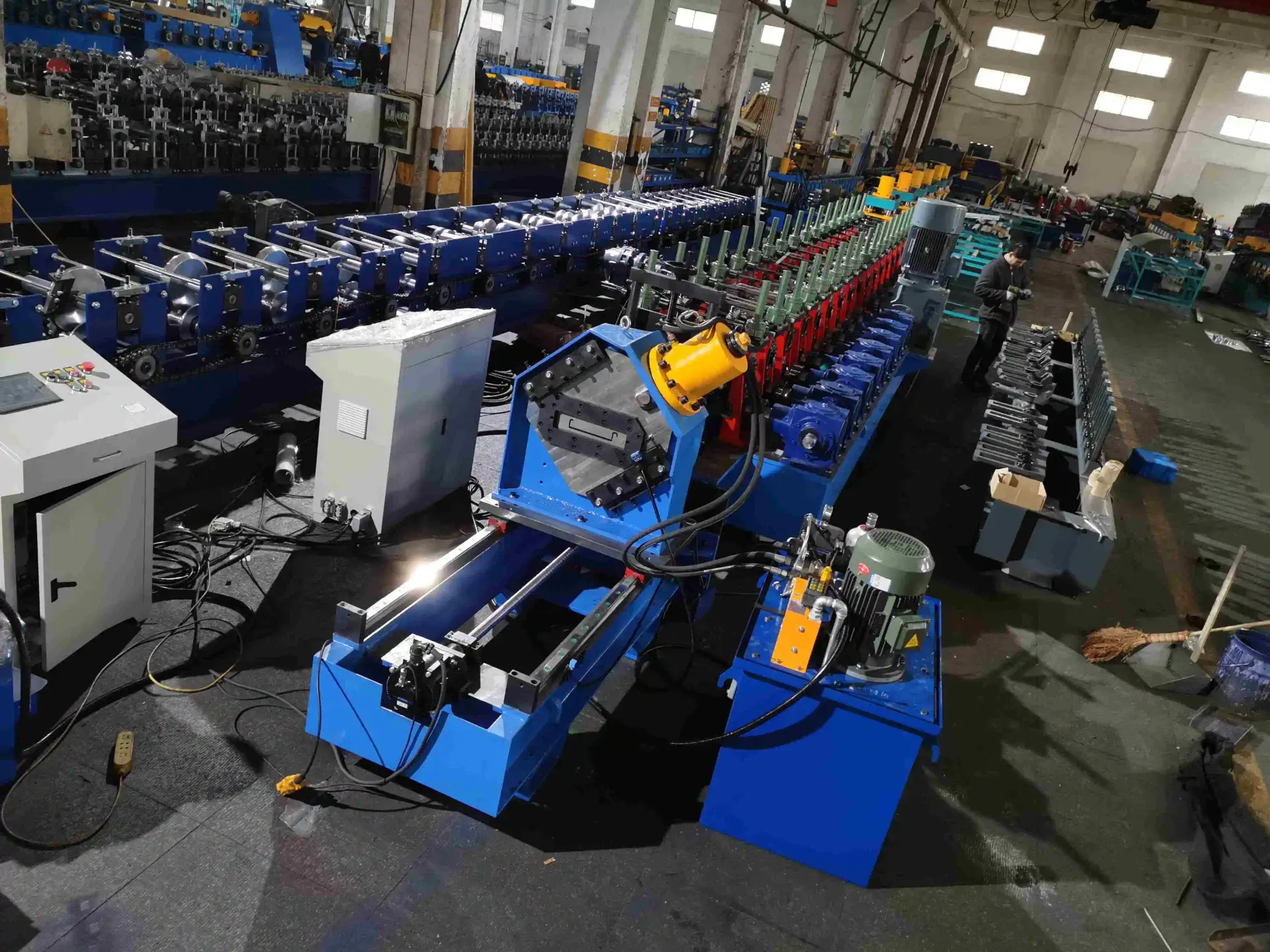

After punching, the μηχανή σχηματισμού κυλίνδρων σανίδων ικριωμάτων uses a series of 20 to 28 roller stations to gradually fold the metal edges. This forms the strengthening ribs and the side-lock channels, which allow the planks to connect securely when installed on a scaffold tower.

Absolutely. As a leading exporter, Beli RollForming designs machines to produce planks that meet global safety standards, such as EN 12811 (Europe) or OSHA standards (USA).

For detailed information on safety load requirements, you can refer to this resource on OSHA Scaffolding Regulations. We ensure our rollers form the stiffening ribs exactly where needed to meet these load-bearing tests.

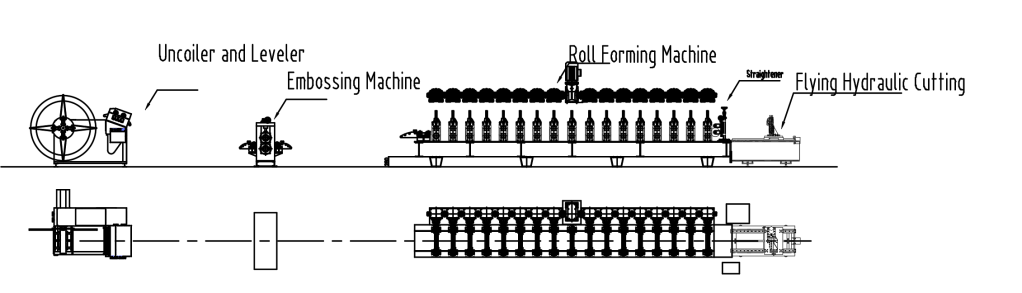

A complete line is substantial. You should allocate a length of approximately 20 to 25 meters for the full setup.

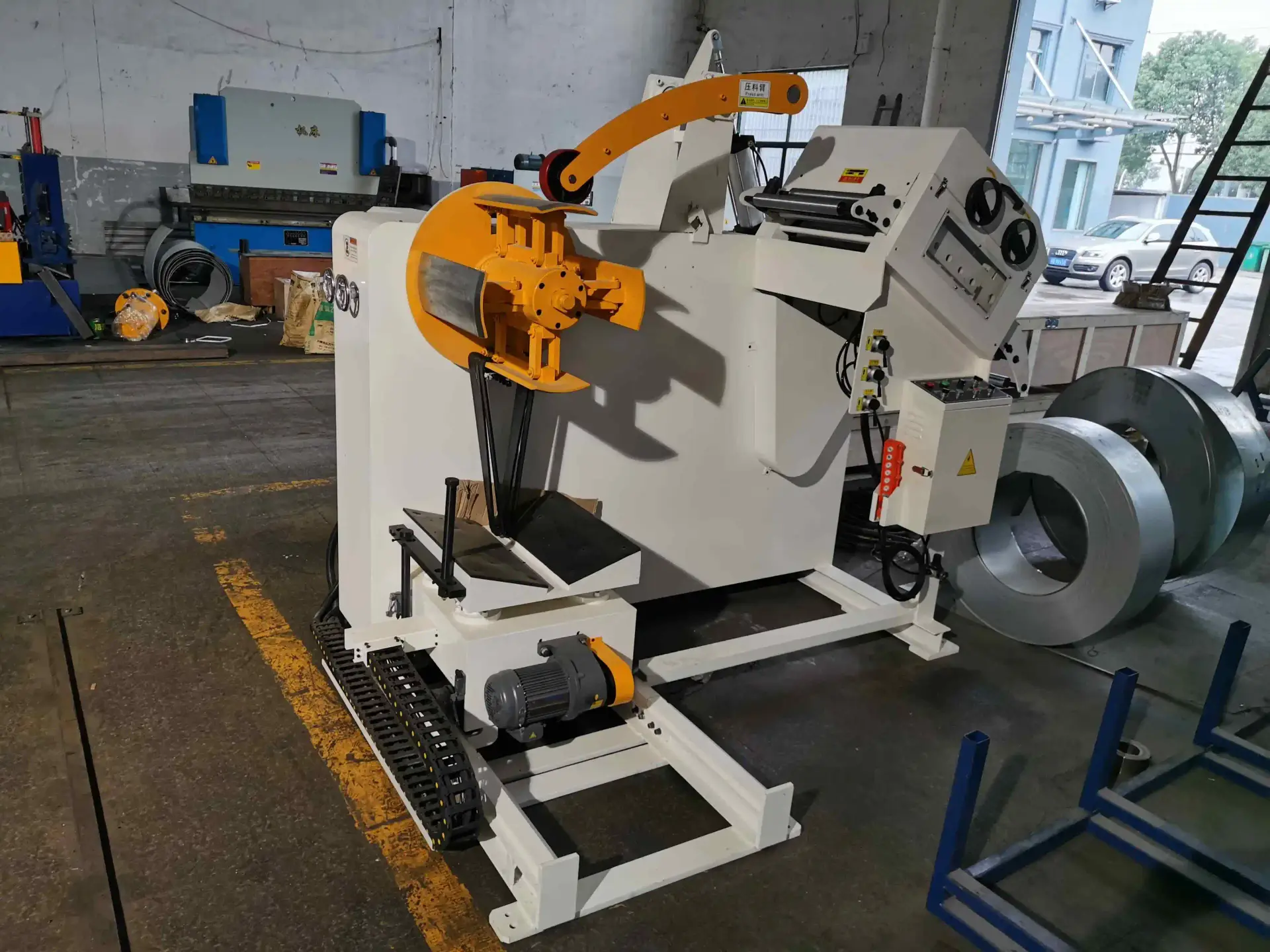

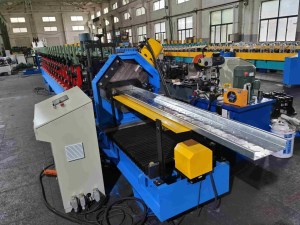

This footprint includes the uncoiler, the leveling and feeding unit, the punching press, the main roll former, the hydraulic cutter, and the run-out table. Proper spacing ensures safe operation and easy maintenance access.

We stand by our equipment. Every μηχανή σχηματισμού κυλίνδρων σανίδων ικριωμάτων comes with a standard 24-month warranty.

Beyond the warranty, we provide lifetime technical support. We can send technicians to your facility for installation and training, or provide 24/7 video guidance to your maintenance team. Our goal is to ensure your machine runs continuously with minimal downtime.

Roll forming is purpose-built for high-volume continuous production, while press brakes handle low-volume or prototype work. Read our full roll forming vs press brake comparison for detailed analysis. Key differences:

For manufacturers producing scaffold planks in volume, roll forming delivers a cost-per-meter 40–60% lower than press brake fabrication.

Standard lead time is 75-90 days from order confirmation. The machine ships fully assembled and tested from Wuxi, China. Installation typically requires 7–14 days επί τόπου, συμπεριλαμβανομένων:

1. Foundation and utility preparation (buyer’s responsibility)
2. Machine positioning and leveling
3. Electrical connection and PLC configuration
4. Trial runs with customer’s coil material
5. Operator training (included)
