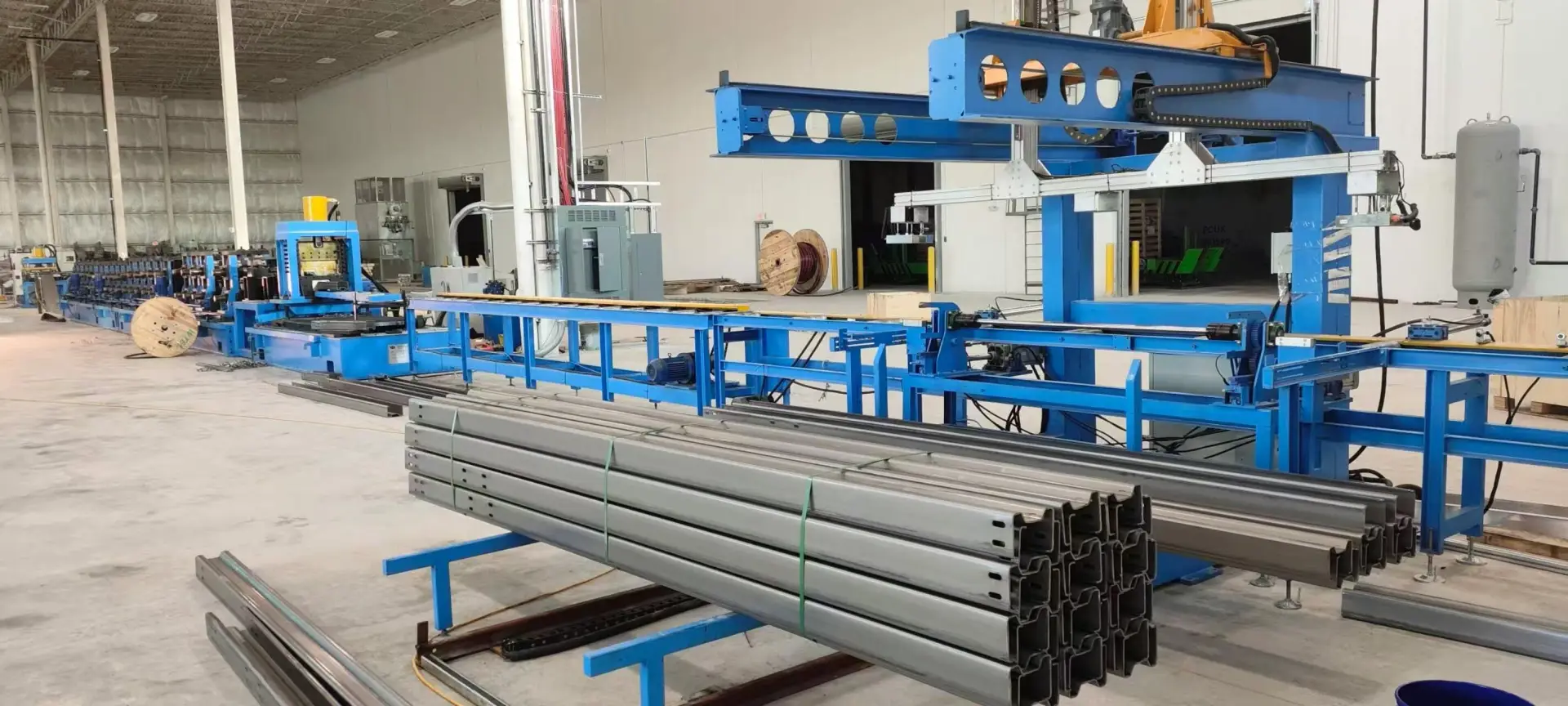

🏆Sigma Purlin Roll Forming Machine: The Ultimate 3-in-1 System for High-Volume Production
When it comes to manufacturing high-quality Σ purlins (or Sigma beams) for commercial and residential construction, Beli RollForming’s Sigma Purlin Roll Forming Machine stands out as the ultimate solution for global manufacturers. This fully automated 3-in-1 system—integrating a heavy-duty uncoiler, leveler, and feeder with a precision roll former and flying cutter—combines unmatched speed and durability to streamline your production. Choosing our top-tier sigma purlin roll forming machine helps you reliably increase output by up to 50% while cutting down on operating costs. For manufacturers searching for a high-performance sigma beam roll forming machine, this equipment offers the precision and speed required by modern structural standards. Invest in the best roll forming technology to secure your market position.
💡What Is the Sigma Purlin Roll Forming Machine Used For?

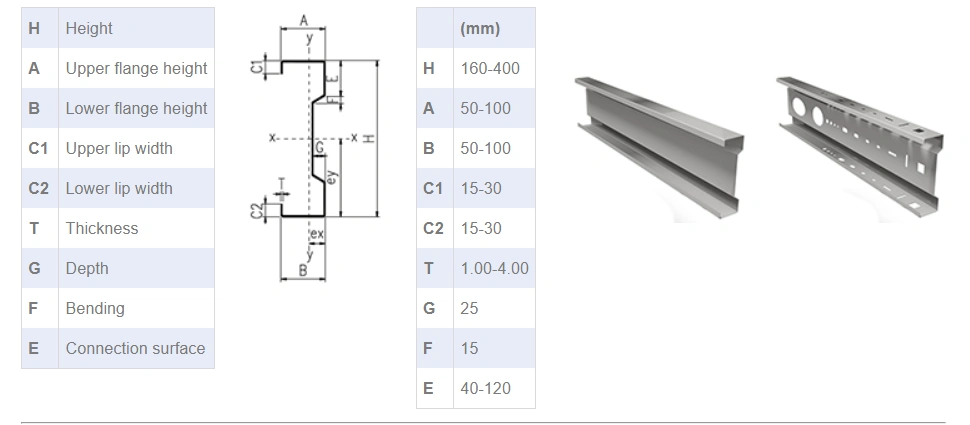

The sigma purlin roll forming machine specializes in producing high-strength Σ purlins—cold-formed steel sections with a unique sigma (Σ) profile. These purlins are essential, load-bearing components in modern construction, often referred to colloquially as sigma beams due to their structural use. They are critical for supporting roof sheets, wall cladding, and ceiling panels across various sectors, including large-scale warehouses, industrial factories, commercial buildings, and residential homes. Their exceptional strength-to-weight ratio makes them a preferred choice for large-span structures where material efficiency and structural integrity are paramount. If your business needs a durable, high-speed sigma beam roll forming machine, Beli RollForming has the solution.
Versatility and Production Capabilities
Our advanced sigma purlin roll forming machine is designed for maximum versatility, allowing you to cater to a diverse range of project requirements. You can use our machine to create purlins in customizable sizes:
Purlin Height: Ranging from 80mm to 300 mm (custom heights readily available).
Material Thickness: Standard production handles 1.5-3.0 mm mm, with specialized models capable of running 2.5 up to 5.0 mm.
Material Type: Optimized for Galvanized Steel Coil, but compatible with Stainless Steel options.
This wide operational range ensures that your investment in a sigma purlin roll forming machine can handle everything from small residential roofing projects to major industrial infrastructure. A key feature is the integrated flying hydraulic cutting system, which guarantees clean, accurate lengths without the need to stop the production line. This continuous operation capability is critical for achieving high daily output and meeting tight construction deadlines globally.
🗝️Key Components of the Sigma Purlin Roll Forming Machine
Our sigma purlin roll forming machine is built using heavy-duty, low-maintenance components, engineered for industrial-scale reliability and uptime.

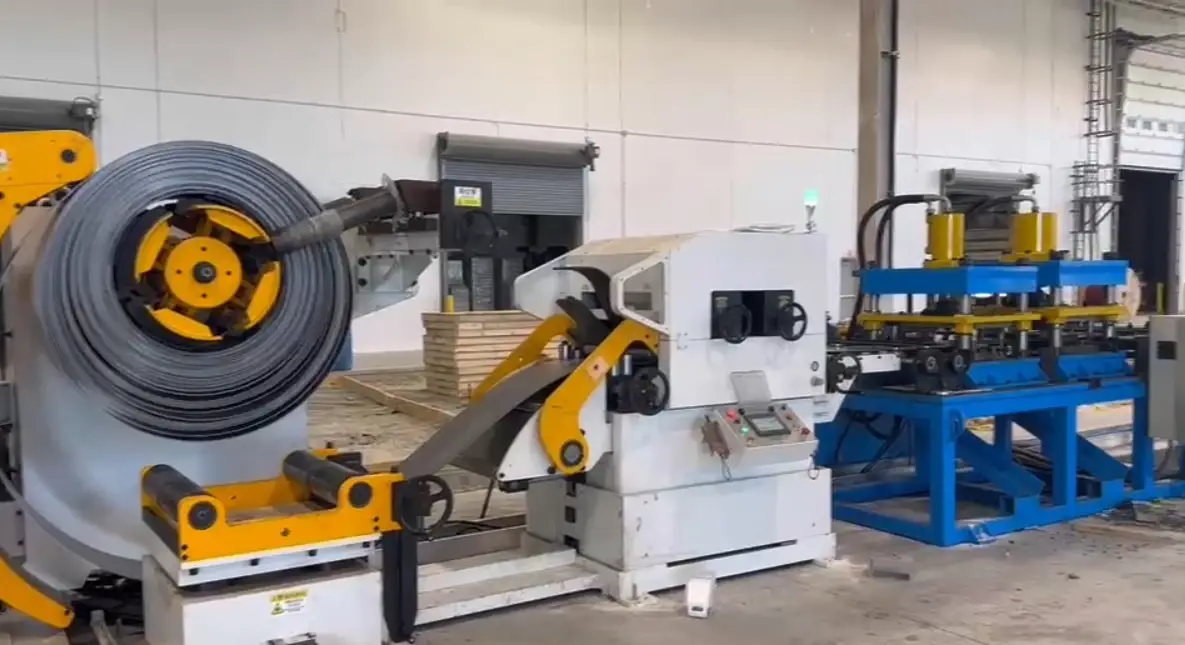

🛠️ 3-in-1 Heavy Duty Uncoiler, Leveler, and Feeder
This integrated unit is the starting point for high-efficiency production and is a hallmark of our premium sigma purlin roll forming machine design. It eliminates the need for standalone equipment, saving valuable factory floor space:
Uncoiler: Robustly handles standard 5-ton steel coils, with a 10-ton option available for extended, uninterrupted runs. Features tool-free coil loading for rapid changeovers.
Leveler (Straightener): Actively corrects the curvature and shape of the coiled material, ensuring perfectly flat material feed into the main mill. This critical step drastically reduces material waste caused by bent or stressed steel, optimizing the output of the sigma purlin roll forming machine.
Feeder: Utilizes a precise servo-driven mechanism to exactly match the material speed to the roll forming mill. This synchronization prevents material jams, reduces wear on the rollers, and ensures the uniform quality of the finished sigma purlin.
⚙️ Precision Punch Holes Device
Integrated directly into the line of the sigma purlin roll forming machine, the servo-motor driven punch system delivers superior accuracy. It can create pre-set holes for fasteners, ventilation, or custom architectural patterns. This feature allows for flexible customization—for instance, 20mm spacing for screws—and eliminates the need for slower, post-forming drilling operations.

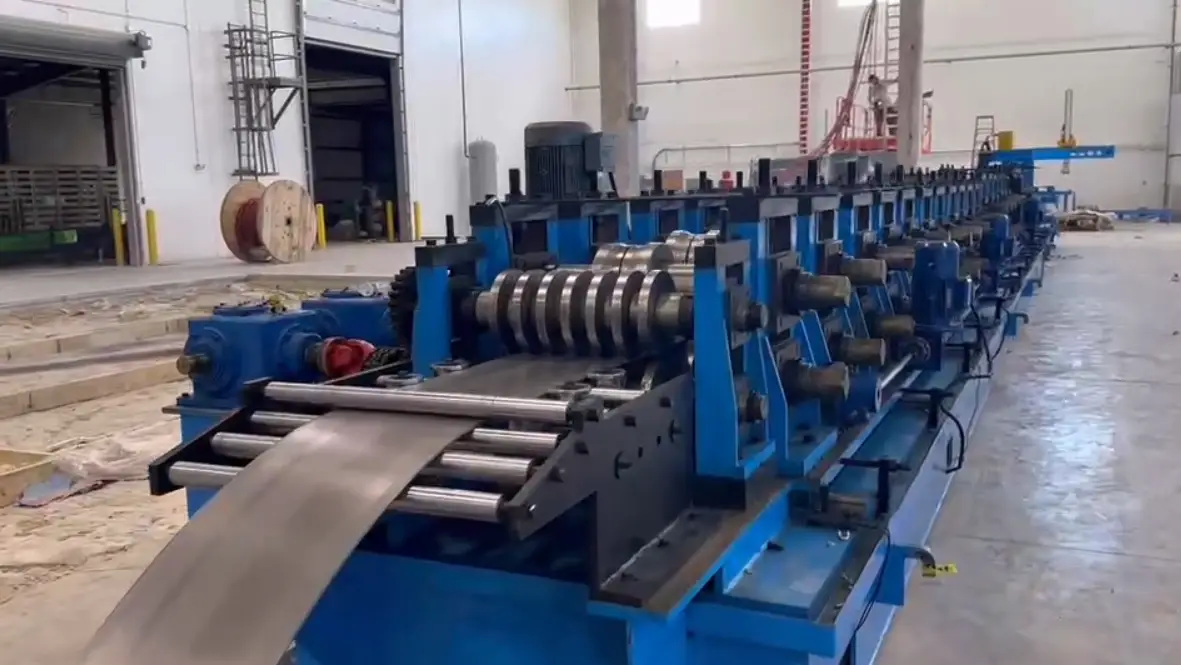

🏭 Heavy Duty Roll Forming Part – The Heart of the Machine
The core of the sigma purlin roll forming machine is engineered for high-speed, long-term performance:
Roll Forming Feeder: Ensures a steady, consistent material flow into the forming mill at high speeds.
Heavy Duty Roll Forming Mill: Features 18 robust forming stands (with 20-24 stands optional). The rollers are precision-machined from D2 steel, which offers exceptional hardness and wear resistance, guaranteeing a lifespan of 10+ years with proper maintenance. This machinery is often considered the most efficient type of sigma beam roll forming machine available on the market today.
Gear Box Transmission: Provides smooth, reliable torque delivery to all forming stands, essential for handling thick gauge materials quietly and efficiently.
Straightener: A post-forming straightener fixes any residual shape deviation, ensuring every purlin exits the sigma purlin roll forming machine perfectly straight and ready for construction.

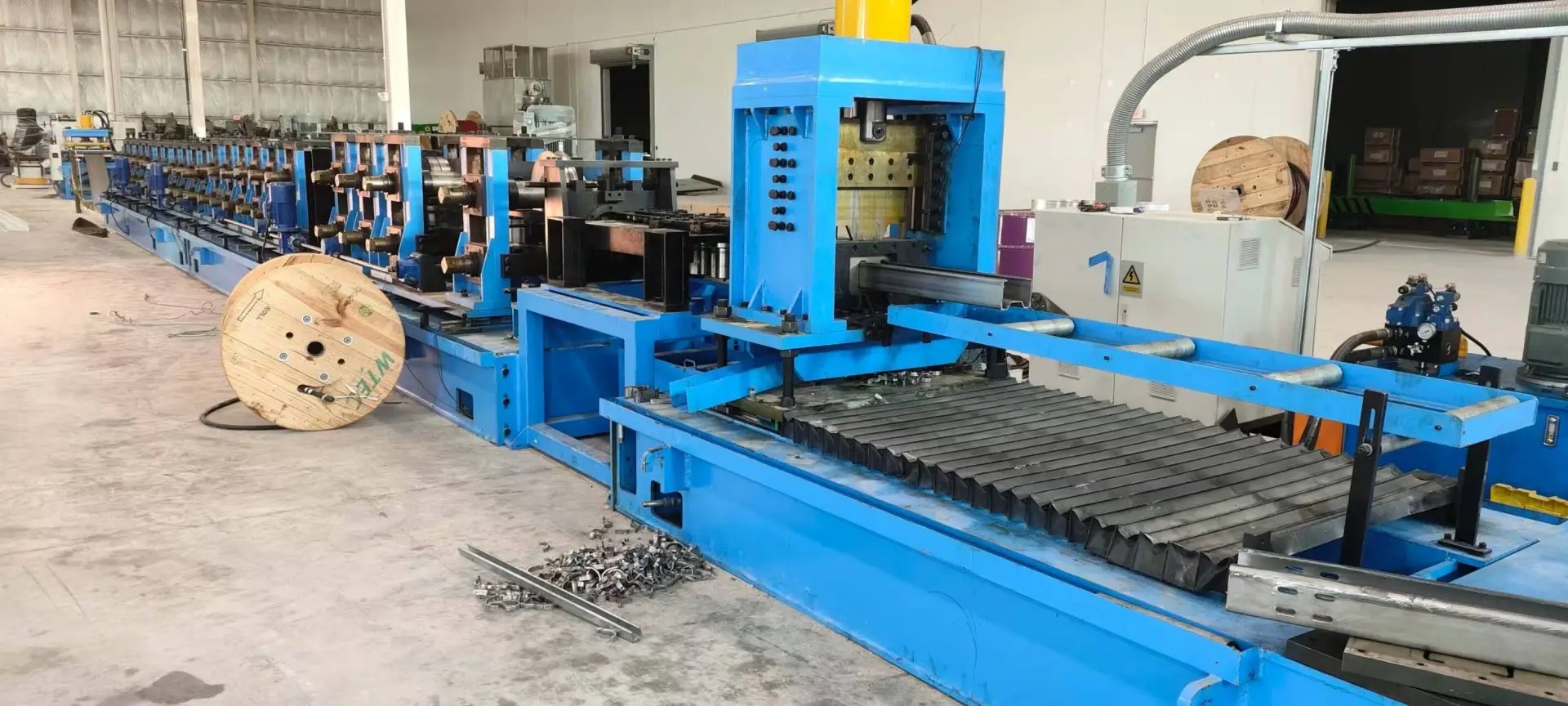

Flying Hydraulic Cutting: The high-speed hydraulic cutter performs clean, precise cuts on the fly, maximizing the effective line speed up to 15 M/Min without pausing the roll forming process.
🖥️ Advanced Controller System
Touchscreen PLC (Siemens/Mitsubishi optional) with real-time monitoring. Operators can adjust settings, view error logs, and export production data—user-friendly for global teams.
🔋 Hydraulic System
3 kW motor powers the uncoiler, 22 KW for punch, and 11 KW for cutting mechanism. Sealed components prevent leaks—ideal for dusty factory environments.

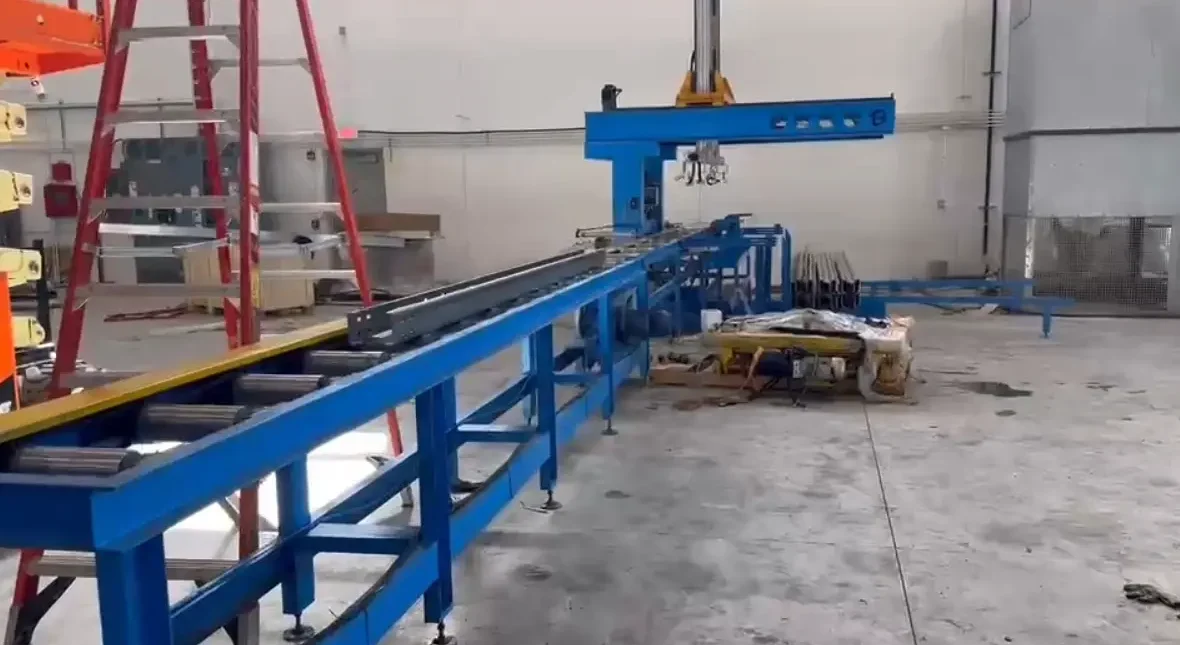

📦 Auto Stacker
Collects finished purlins automatically—holds up to 100 units (size-dependent). Reduces manual labor and keeps production running smoothly.
⚙️ Sigma Purlin Roll Forming Machine: Technical Parameters
These specifications detail the standard and optional configurations available for the Beli RollForming machine.
Core Machine Specifications
| Parameter | Standard Specification | Optional Options / Customization |
| Product Profile | Sigma (Σ) Purlin (Structural Beam) | Custom profiles available upon request |
| Material Type | Galvanized Steel Coil (GI) | Stainless Steel, Aluminum Coil |
| Material Thickness | 1.5-3.0 mm | 3.0-5.0 mm |
| Coverage Width (Purlin Height) | 100 mm – 300 mm | 150 mm – 400 mm (Custom) |
| Flange Height | 50-100 mm | Customized |
| Effective Line Speed | 6 M/Min – 12 M/Min (Avg.) | Up to 15 M/Min (High-Speed Model) |
| Cutting Type | Flying Hydraulic Cutting (on-the-fly) | Standard Shear Cutting |
| Control System | Touchscreen PLC (Programmable Logic Controller) | Siemens or Mitsubishi PLC |
| Operation | Fully Automated 3-in-1 System (Uncoiler/Leveler/Feeder) | Manual Uncoiler option |
Roll Forming Mill Details
| Parameter | Standard Specification | Optional Options / Customization |
| Forming Stands Quantity | 18 Stands | 20 Stands – 24 Stands |
| Forming Stands Type | Heavy Duty Construction | Precision-Ground Rollers |
| Roller Material | GCr15 Bearing Steel (High Hardness) | D 2 Steel (Enhanced Durability) |
| Driven System | Gear Box Transmission | Chain Transmission |
| Straightener | Integrated Post-Forming Straightener | |
| Punching Device | Servo-Motor Driven Punch Holes Device | Custom hole patterns and spacing |
Power and Ancillary Equipment
| Parameter | Standard Specification | Optional Options / Customization |
| Voltage | 380V / 50Hz / 3Ph | 415V/50Hz/3Ph, 220V/60Hz/3Ph |
| Hydraulic Motor Power | 4 KW, 22 KW and 11 KW | Increased power for thicker gauges/faster speed |
| Uncoiler Type | 3-in-1 Hydraulic Heavy Duty | 2 in 1, hydraulic or manual |
| Uncoiler Capacity | 5 Tons | 10 Tons, 15 Tons |
| Outfeed System | Automatic Stacker (Capacity up to 100 units) | Manual Runout Table |
Conclusion
The Sigma Purlin Roll Forming Machine from Beli RollForming is the definitive solution for manufacturers committed to producing the highest quality sigma purlins (or structural sigma beams) efficiently and consistently. With its automated workflow, customizable specifications, and robust industrial design, this machine is your competitive advantage in the global steel construction market.
Ready to invest in a machine that is guaranteed to grow with your business and deliver a 50% boost in productivity? If you need a reliable sigma beam roll forming machine, Contact us Now and transform your production!
❓ Frequently Asked Questions (FAQs)
Our standard sigma purlin roll forming machine is designed to process steel coil thicknesses ranging from 0.8mm to 2.0mm. We also offer heavy-duty optional configurations capable of handling up to 2.5mm thickness for specialized structural sigma beam roll forming machine requirements.
The 3-in-1 system integrates the Uncoiler, Leveler, and Servo Feeder into one unit. This streamlined design cuts down on material setup and handling time by up to 40% compared to standalone equipment, ensuring a perfectly aligned material flow directly into the sigma purlin roll forming machine for continuous, high-speed forming.
Yes. Our sigma purlin roll forming machine is highly adjustable. It can produce purlins with heights (coverage widths) ranging from 100mm to 300mm as standard, with options available up to 400mm. The PLC controller allows for quick, pre-set changes between different profiles and lengths.
The Flying Hydraulic Cutting system allows the sigma purlin roll forming machine to cut the material to the specified length without stopping the production line. This non-stop operation is essential for achieving the maximum line speed of up to 15 M/Min, drastically improving daily output and minimizing wasted time.
The rollers on our sigma beam roll forming machine are manufactured from high-grade GCr15 bearing steel, which is treated for superior hardness and wear resistance. With proper regular maintenance, the rollers are designed to have a lifespan of 10 to 15 years before replacement is typically necessary.
While the machine is heavy-duty, it is designed for low maintenance and ease of use. The Gear Box Transmission reduces wear compared to chain drives, and the PLC controller is user-friendly. Beli RollForming provides free installation training and 24/7 technical support to ensure your global team can operate and maintain the sigma purlin roll forming machine effectively.
The standard machine is optimized for galvanized steel coil. However, we can customize the roller material and tensioning system to successfully process other materials, including stainless steel and aluminum coil. Please specify your material requirements when requesting a quote.
We custom-configure the motor and electrical system to meet various global standards. While our standard is 380V/50Hz/3Ph, we routinely supply the sigma purlin roll forming machine in configurations such as 415V/50Hz/3Ph or 220V/60Hz/3Ph. Simply provide your factory voltage details with your inquiry.
