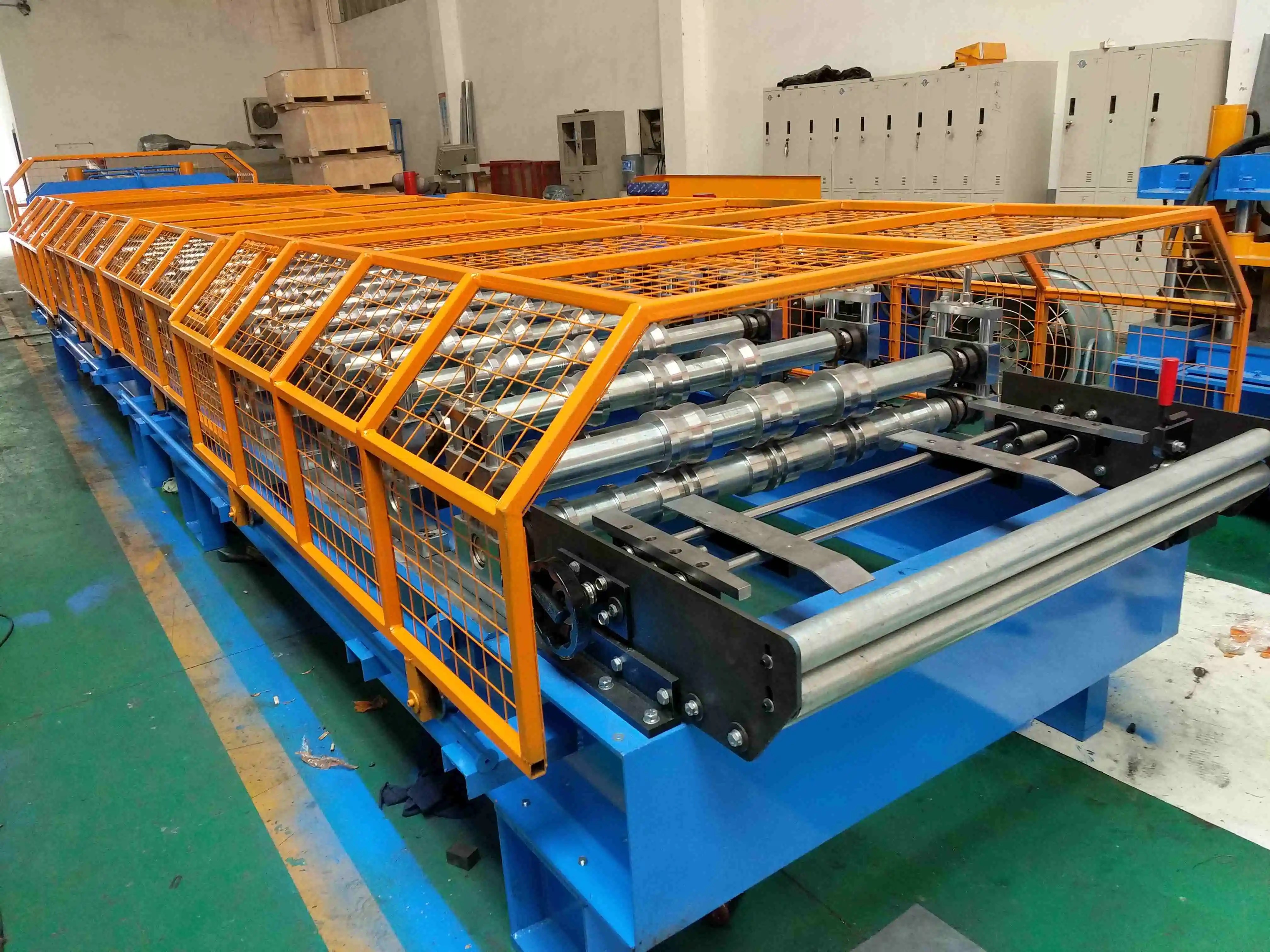

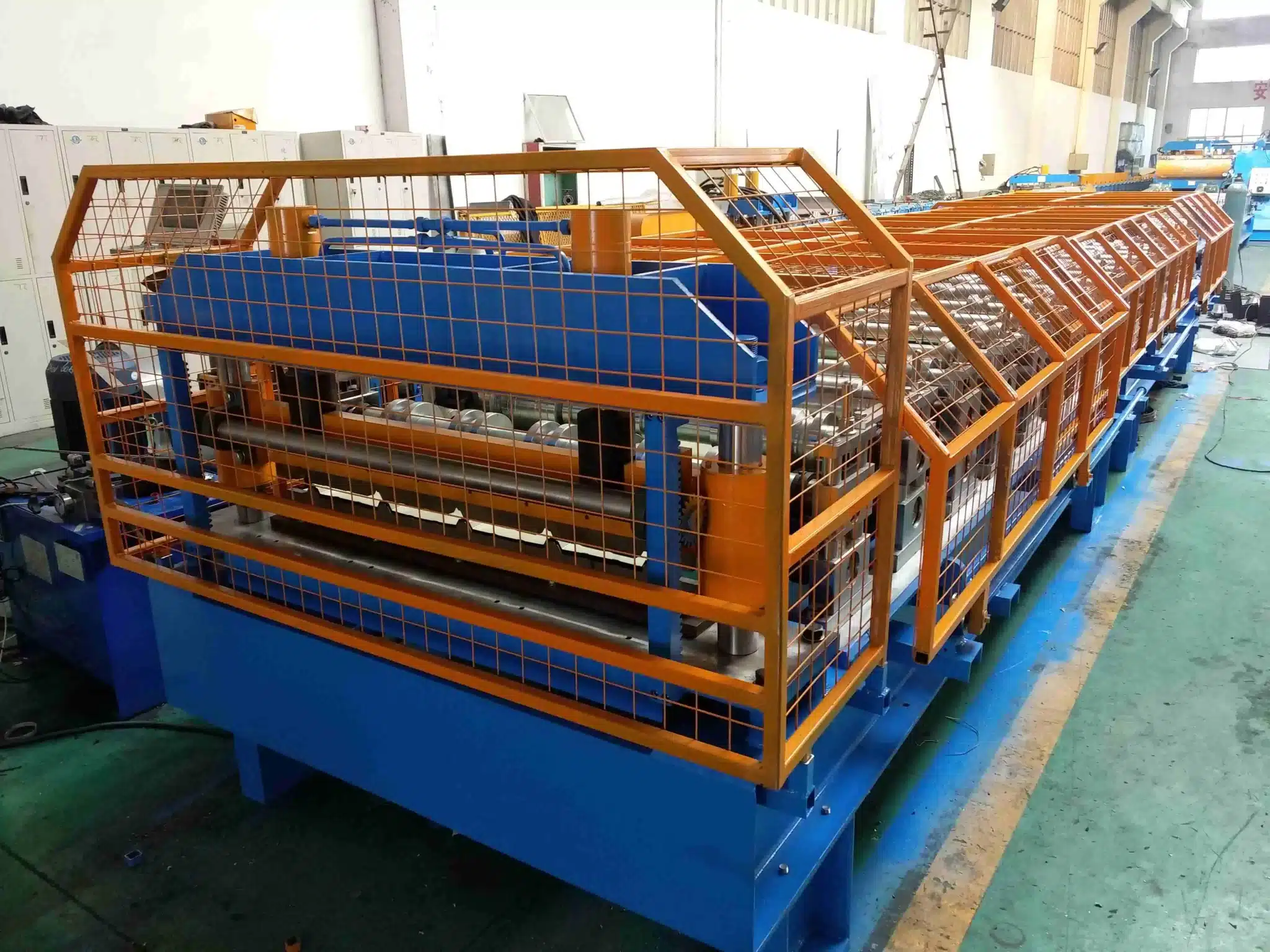

An R Panel Roll Forming Machine is a specialized cold roll forming system that continuously bends metal coils through multiple steel roller stations to produce R Panel metal roofing and siding sheets. Designed for exposed fastener applications, the machine produces panels with a 36-inch (914 mm) coverage width, 1.25-inch (31.75 mm) rib height, and supports material thickness of 22–24 gauge (0.76–0.53 mm). R Panel profiles are widely used across residential, commercial, and agricultural construction in North America (Source: Metal Construction Association, 2024).
What Is a R Panel
R Panel roofing is an exposed fastener metal roofing and siding panel with raised ribs with a flat area between the ribs. R-Panel is 1.25” deep, it measures 12” from each high corrugation, and provides 36” of coverage. It’s used in residential, commercial, and agricultural applications.
R Panel vs PBR Panel — Competitive Comparison
| Feature | R Panel | PBR Panel |
|---|---|---|
| Rib Height | 1.25″ | 1.25″ |
| Coverage Width | 36″ | 36″ |
| Overlap Zone | None | Yes (“B” = Overlap) |
| Primary Application | Residential / Commercial / Agricultural | Industrial / Commercial (higher waterproofing) |
| Beli Machine Compatibility | Native | Same machine, interchangeable dies |
Beli RollForming’s R Panel machines feature a quick-change roller system that allows switching between R Panel and PBR Panel profiles without replacing the full roller set — reducing tooling investment for multi-product fabricators. Learn more about our Strut Channel Roll Forming Machine and other US Standard Panel Machines.
What Is a R Panel Roll Forming Machine
A R roll forming machine is only as reliable as its individual components. These specialized parts work in harmony to transform raw metal coils into durable, ribbed R panels—critical for roofing, cladding, and construction. Let’s break down the essential components that make this machinery a cornerstone of modern metal fabrication.

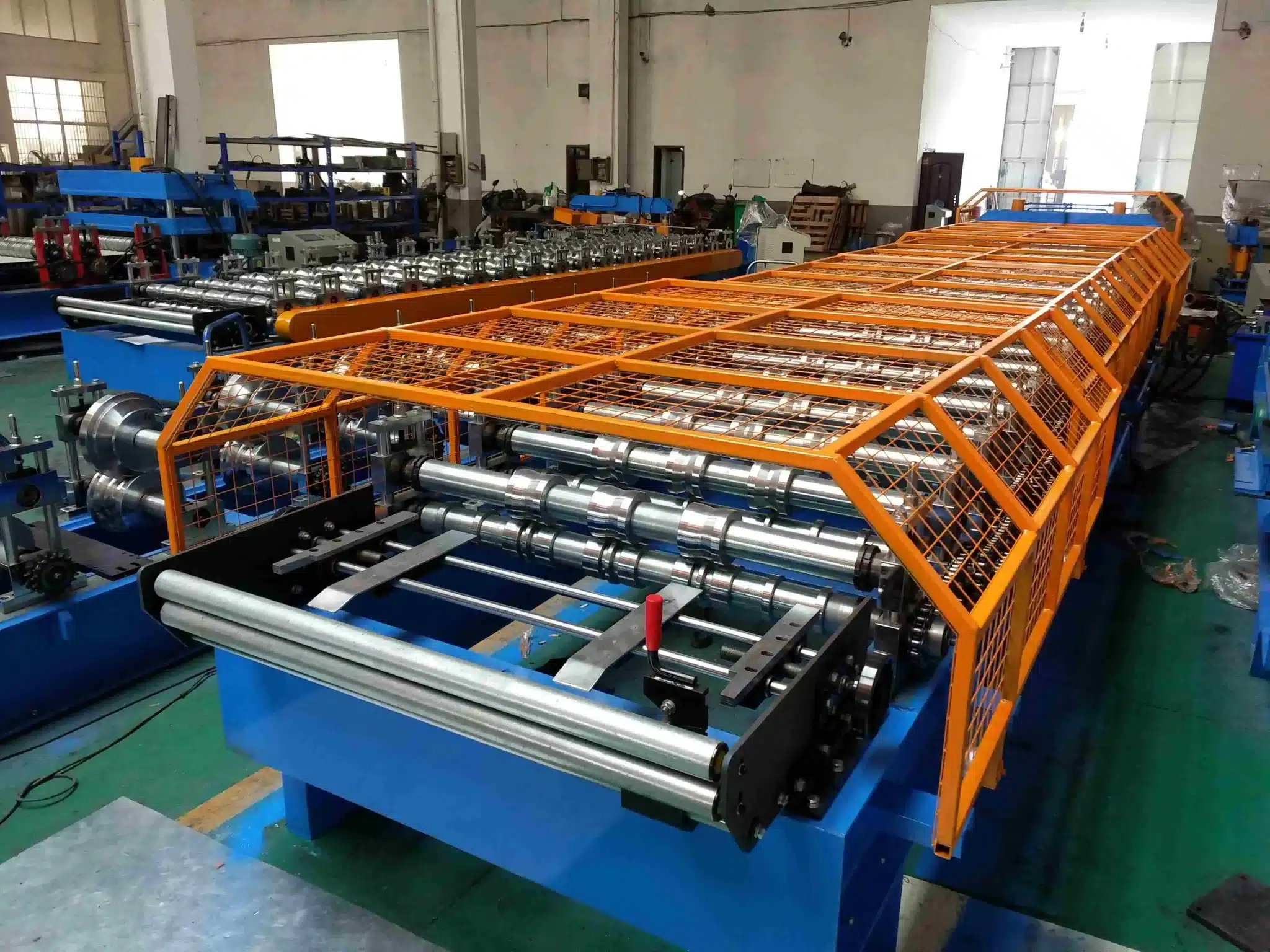

Uncoiler: The Foundation of Material Feeding
Entry Guides: Aligning for Precision
Roller Sets: Shaping the R Profile
Forming Station: Precision in Motion
Cutting System: Achieving Exact Lengths
Control System: The Brains of Automation
Different optional solution of the R Panel machine
There several types of uncoilers for R Panel Roll Former
- 5 Ton Manual&passive Uncoiler
- 5 Ton hydralic uncoiler with or without coil car
- 7.5 Ton hydralic uncoiler with coil car and support arm
- 10 Ton hydraulic uncoiler with coil car and support arm
Roll Forming is the main core of the machine, which include different design for different requirements:
- Structure: Steel Plate Welded, Iron Cast Stands
- Driven: Chain and Sprocket, Gear Box and Joint

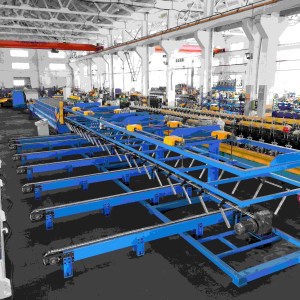

- Single layer or double layer
There are 3 main cutting solution for purlin machines:
- Pre cutting: Cut the coil into sheets before roll forming, and with a tansfer convery to increase the line speed into 50-60 m/min
- Post hydraulic cutting: standard
- Post electric cutting: Cutting motion is faster.
- Flying cutting: The roll forming machine is continuous working while cutting to increase the speed.
Core Specifications Table
| Parameter | Specification | Notes |
|---|---|---|
| Coverage Width | 36″ (914 mm) | Standard coverage per panel |
| Rib Height | 1.25″ (31.75 mm) | Structural high-strength rib |
| Rib Spacing | 12″ (305 mm) | Center-to-center distance |
| Material Thickness | 22–24 gauge | 0.76 mm to 0.53 mm |
| Compatible Materials | PPGI, PPGL, GI, GL | Pre-painted / galvanized / galvalume |
| Forming Stands | 20–24 stations | Precision forming accuracy |
| Roller Material | 1045 Steel / HRC 58–62 / Chrome Plated | High hardness, wear resistant |
| Motor Power | 11–15 kW | Energy optimized |
| Line Speed | 50–70 FPM (15.2–21.3 m/min) | Standard configuration |
| Cutting System | Hydraulic Flying Saw (non-contact) | Protects 1.25″ rib integrity |
Compatible Materials Breakdown:
- PPGI — Pre-painted galvanized steel (color-coated surface, corrosion resistant)
- PPGL — Pre-painted galvalume (aluminum-zinc alloy coating, superior durability in coastal/harsh environments)
- GI — Hot-dip galvanized steel (zinc coating, cost-effective corrosion protection)
- GL — Galvalume / zinc-aluminum coated steel (55% Al-Zn alloy, excellent heat reflectivity)
Beli RollForming vs. US & EU Manufacturers
R Panel machines are made in China, the US, and Europe — each with trade-offs. The comparison below gives you the objective view.
| Factor | Beli RollForming (China) | US Manufacturer | EU Manufacturer |
|---|---|---|---|
| Factory experience | 20+ years (est. 2005) | Varies (10–50 years) | Varies (20–60 years) |
| R Panel specialization | Full line + solar racking | Often generalist | Often generalist |
| Lead time | 45–75days | 8–16 weeks | 10–20 weeks |
| Base price | ★★★★★ Competitive | ★★ Higher | ★★ Higher |
| R/PBR tooling | Quick-change on one machine | Separate machines often | Separate machines often |
| Spare parts | Global via Shanghai hub | US-only | EU-only |
| US market compatibility | 36″/1.25″ specs + MBMA | Native | Requires adaptation |
| Solar racking | Dedicated factory since 2019 | Limited | Limited |
| English support | Full docs + video training | Native | Often limited |
| UL/FM cert | Design-to-standard; cert by installer | Full cert included | Full cert included |
Choose Beli RollForming — competitive pricing + US specs + 45–75 day lead time + R/PBR on one machine. Ideal if you also need solar racking or a full product ecosystem.
Choose a US manufacturer — full UL/FM certification included is mandatory, or domestic service justifies the premium.
Choose an EU manufacturer — your primary market is Europe/Australia and CE/AS documentation must be bundled.
Our position: Chinese manufacturing economics + US-market engineering precision. 20+ years of expertise, a Gamechange Solar partnership, and a dedicated solar racking factory serving North America since 2019 prove we meet the most demanding international standards.
Industry Standards & References
- MBMA (Metal Building Manufacturers Association): Sets industry standards for metal building systems in the US, applicable to R Panel applications in commercial roofing.
- UL 580: Standard for Tests for Uplift Resistance of Roof Assemblies; R Panel systems typically achieve Class 30–90 ratings.
- FM 4471: FM Global approval standard for single-ply roof systems.
- AISI S100 (North American Specification for the Design of Cold-Formed Steel Structural Members): Engineering basis for cold roll forming design.
- Metal Construction Association: Industry advocacy group; publishes market data on R Panel adoption in North American construction.
Product Video
Watch the R Panel Machine in Action
See the full production line from coil feeding through 20–24 station forming to precision hydraulic cutting.
What You'll See in the Video:
- Introduction to the R/PBR Panel Machine
- Hydraulic Uncoiler, Feeder & Film Coating Device
- Chain Transmission & Main Roll Forming Rollers
- High-Speed Electric Cutting System (Low Noise)
- Continuous Cutting & Finished Panel Production
Frequently Asked Questions
What is an R Panel roll forming machine? An R Panel roll forming machine is a dedicated cold roll forming system that transforms 22–24 gauge metal coils into R Panel metal roofing/siding sheets through 20–24 sequential roller stations. The machine produces 36-inch-wide panels with 1.25-inch-high structural ribs, designed for exposed fastener attachment. It serves residential, commercial, and agricultural building projects.
R Panel features a 1.25-inch rib height with no overlap between ribs. PBR Panel shares the same rib height but includes a lapped overlap section (the “B” stands for “overlap”), providing enhanced waterproofing performance. Beli RollForming machines can switch between R and PBR modes via quick-change tooling, enabling one machine to serve both product lines.
The machine handles four material types: PPGI (pre-painted galvanized steel), PPGL (pre-painted galvalume), GI (hot-dip galvanized steel), and GL (galvalume/zinc-aluminum coated steel). Acceptable thickness range is 22–24 gauge (0.76 mm to 0.53 mm). For material recommendations by application, contact our technical team.
Dedicated embossing roller stations at the end of the forming line apply light surface texture to the flat zones between structural ribs. This increases panel stiffness, reduces visual oil-canning effect, and does not compromise structural performance (per AISI S100 commentary).
A PLC control system paired with a hydraulic flying saw enables in-line, non-stop cutting. Operators input target length and quantity via a touchscreen HMI; the system auto-counts and optimizes material yield. Cutting tolerance is ±1.5 mm.
Standard line speed is 50–70 FPM (15.2–21.3 m/min), delivering approximately 900–1,300 linear meters per hour — suitable for medium to high-volume production runs.
The machine uses a non-contact hydraulic flying saw. The saw blade travels along the longitudinal axis of the panel and cuts between rib positions, avoiding contact with the rib walls entirely. This eliminates the rib deformation common with crush-cut systems and produces a cleaner, more vertical cut face.
- After each coil change: inspect roller surfaces for metal debris and clean with a soft brush
- Weekly: lubricate guide rails and bearings per the maintenance schedule
- Monthly: check roller chrome plating for chips or wear; replace worn rollers promptly
- Every ~500,000 linear meters: recalibrate cutting length accuracy
- For a complete maintenance schedule, download our Roll Forming Machine Maintenance Guide
Beli RollForming R Panel machines are designed in accordance with MBMA standards and AISI S100 specifications. Project-specific certifications such as UL 580 or FM 4471 are typically obtained by the installer or end-user based on the complete panel system configuration. Contact us for
Standard configurations ship within 30–45 days. Installation guidance is provided via remote video support plus a complete English-language operation manual. On-site technician deployment is available upon request (quoted separately). Request a quote →
Conclusion & Call to Action
Conclusion
R Panel metal roofing remains one of the most specified exposed-fastener profiles in North American construction. The Beli RollForming machine delivers 36-inch coverage, 1.25-inch structural ribs, and 50–70 FPM line speed — with R Panel and PBR Panel available on a single quick-change machine.
What sets us apart:
- 20+ years of expertise, serving 40+ countries
- R/PBR switchable on one machine — no dual investment
- 30–45 day lead time vs. 8–20 weeks from US/EU suppliers
- MBMA / AISI S100 design standard; UL 580 / FM 4471 certifiable
Get a Free Quote (24–48 hr response)
Include: panel profile (R/PBR/both), material & gauge, daily volume target, installation country.
Or email us: enquiry@belirollforming.com
The R Panel Roll Forming Machine is more than just equipment—it’s an investment in efficiency, quality, and growth. By automating R panel roll forming machine, you’ll stay ahead of competitors, meet rising demand, and unlock new revenue streams. Ready to upgrade your workshop? Contact us today to schedule a demo or request a quote.
