A roll forming leveler is a critical pre-forming machine that straightens coiled metal to eliminate defects like edge waves, center buckles, or longitudinal bow. At Beli RollForming—your trusted Chinese manufacturer of roll forming machines—we design levelers that deliver uniform flatness, ensuring your production line runs efficiently and waste-free.
How Your Roll Forming Leveler Solves Coil Straightening Challenges
Every coil carries internal stresses from rolling or coiling. Our roll forming leveler uses 5–11 small-diameter rollers to flex metal deeply, permanently removing these defects. The result? Coils that feed smoothly into your roll forming machine—reducing jams, rework, and scrap. For example, a stainless steel coil with edge waves exits our leveler with factory-grade flatness, ready for precise forming.
Key Components of Our Roll Forming Leveler
Built for durability and precision, every Beli roll forming leveler includes:
Entry/Exit Guides: Align coils to prevent misfeeding.
Adjustable Leveling Rolls: Customize pressure for thin (0.3mm) or thick (6.0mm) materials.
Tension Control System: Maintains consistent straightening force.
Types of roll forming levelers
Roll Forming Levelers are categorized primarily by two criteria:
Material Thickness
- Sheet Metal Levelers: For thin materials (e.g., 0.1–3.0 mm thickness)
- High-Precision Levelers: Suited for applications requiring ultra-flat surfaces (e.g., precision components, with thicknesses typically ranging from 0.05 to 1.2 mm)

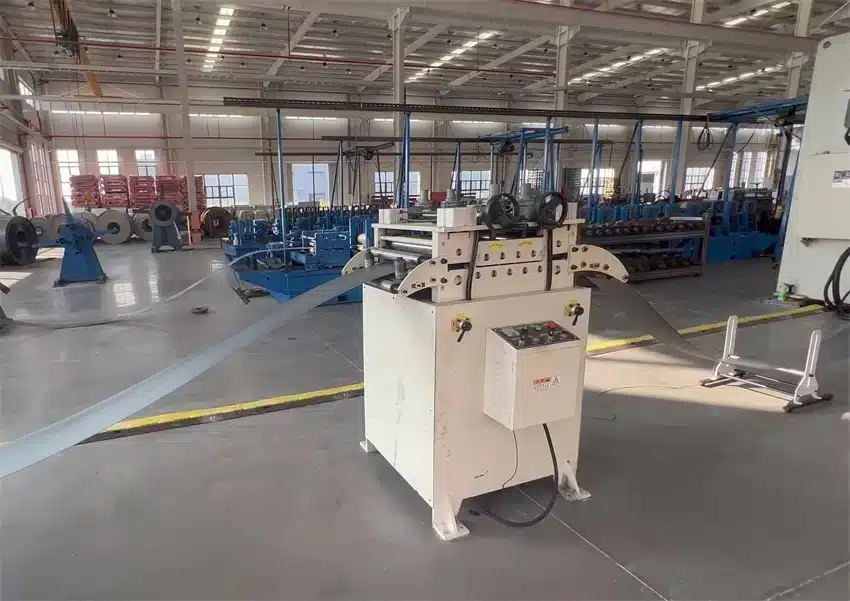

- Thick Plate Levelers: Designed for heavy-duty plates (e.g., 3.0–30 mm or thicker)
System Integration
- Standalone Leveling Machines: Dedicated units for individual sheet leveling

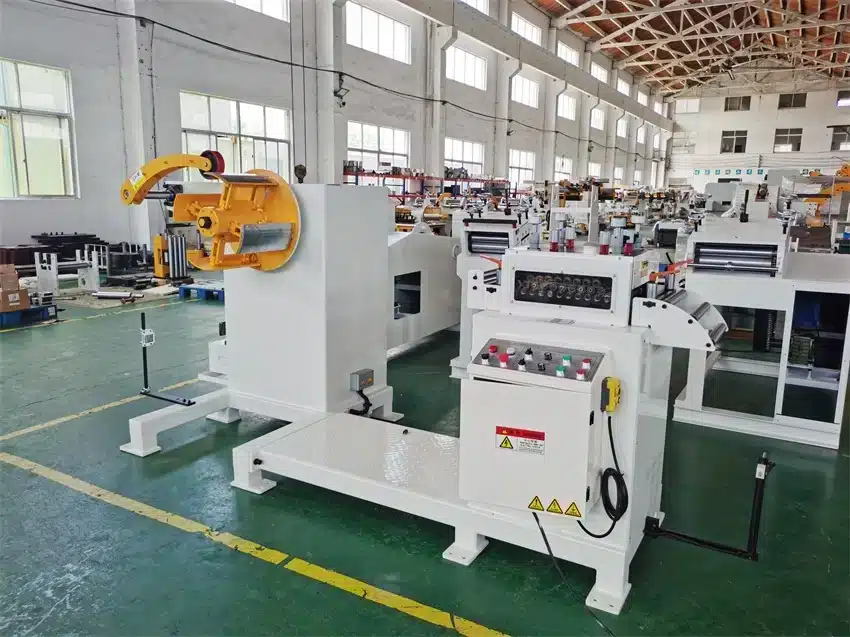

Two-in-One Uncoiler-Leveler Machines: Combine uncoiling and leveling in one system for streamlined processing.

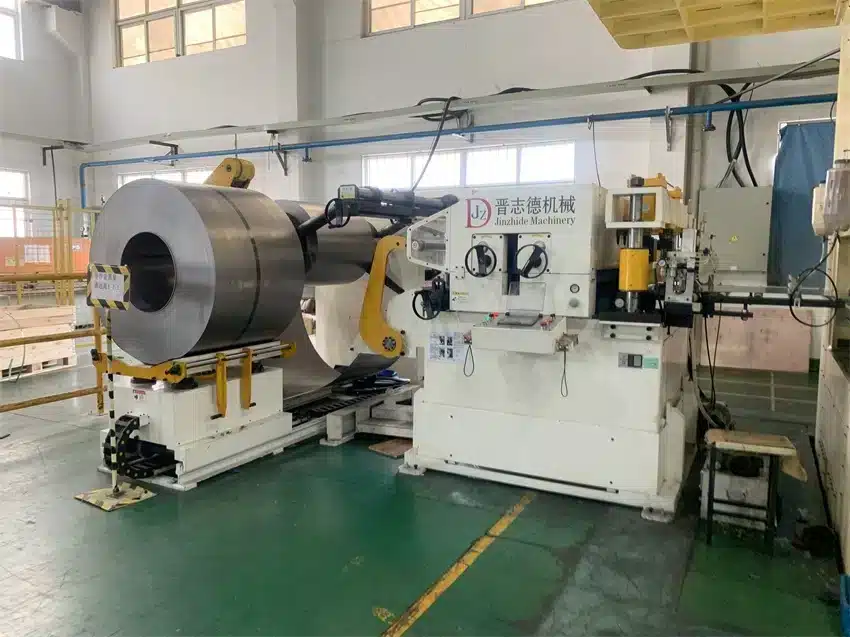

Three-in-One Uncoiler-Leveling-Feeder Machines: Integrate uncoiling, leveling, and feeding functions for fully automated production lines
Roll Forming Leveler Specifications at a Glance
Choose the perfect unit for your needs:
Parameter | Standard Spec | Optional Upgrade |
|---|---|---|
Max Coil Width | 100-1250 mm | 1500 mm |
Material Thickness | 0.5–3.0 mm | 0.3–6.0 mm |
Number of Leveling Rolls | 7 | 9 or 11 |
Coil Weight Capacity | 500-5000 kg | 10,000 kg |
Control System | Button and Switch | PLC and HMI, Industrial PC |
FAQs About Our Roll Forming Leveler
A leveler fixes internalcoil stresses; a straightener aligns surfaceimperfections in formed products.
Yes—we adjust roller spacing and tension for soft metals like aluminum or copper.
Routine lubrication (every 500 hours) and roller inspection (quarterly) keep it running smoothly.
24 months on parts/labor + lifetime support from Beli RollForming.
We provide custom adapters—just share your current machine specs.
8–12 weeks—we prioritize your project.
24/7 email/chat support + on-site service worldwide
Yes—our levelers are optimized for high-tensile materials.
A high-quality roll forming leveler isn’t an expense—it’s an investment in consistent, defect-free production. With Beli RollForming, you get a machine that boosts efficiency, cuts waste, and delivers flawless coils. Ready to upgrade? Contact us↗︎ today for a custom quote and transform your roll forming line.
Learn more about coil straightening best practices from The Fabricator↗︎
