Beli RollForming, a leading manufacturer and exporter of roll forming machines in China, specializes in custom orb roll forming machines designed to meet your unique production needs. Whether you need orbs for construction (handrails, brackets), automotive (trim parts), or decorative (furniture hardware) applications, our machines blend precision, efficiency, and durability. With 20+ years of expertise, we help global clients scale production while reducing waste.

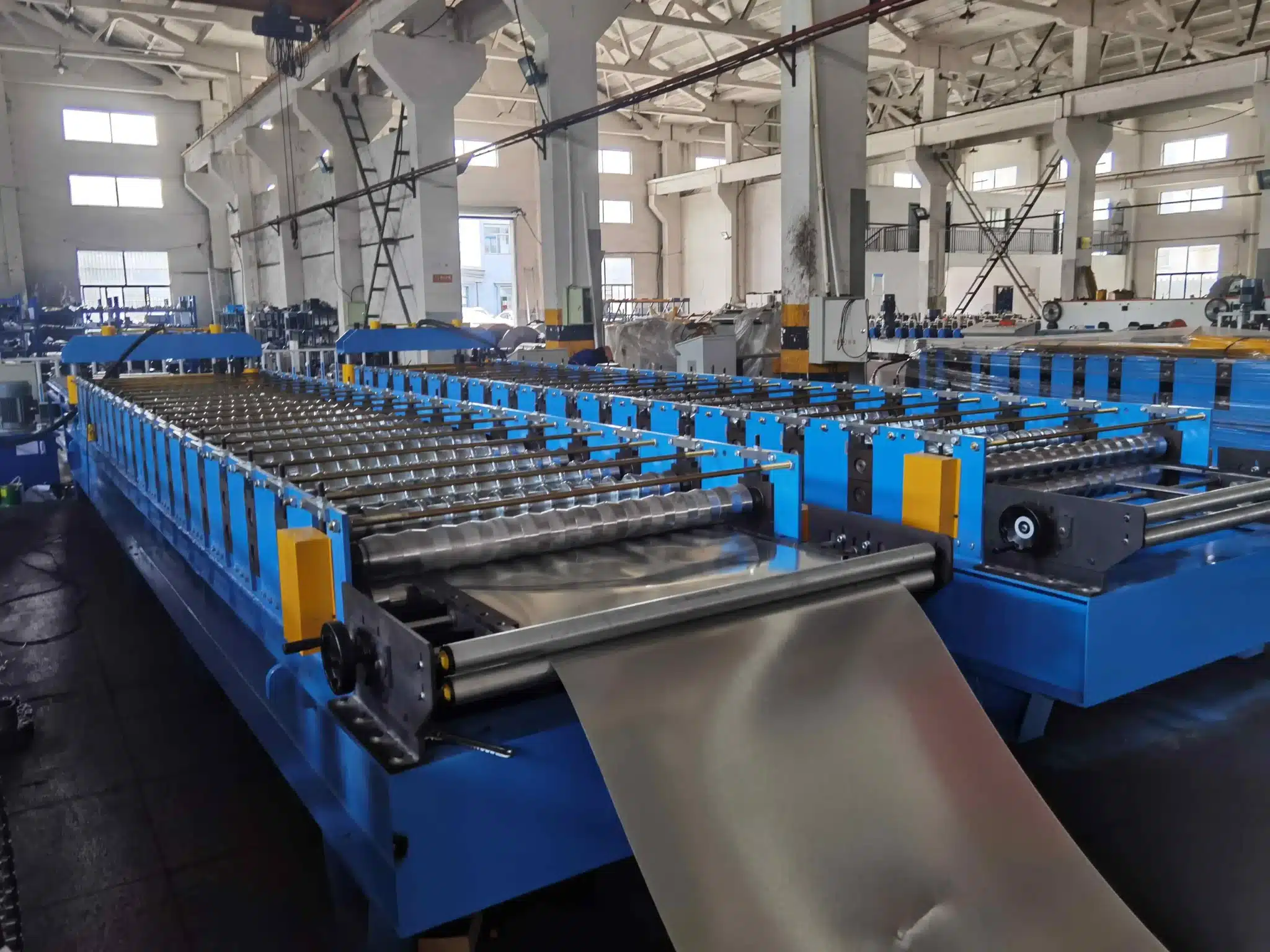

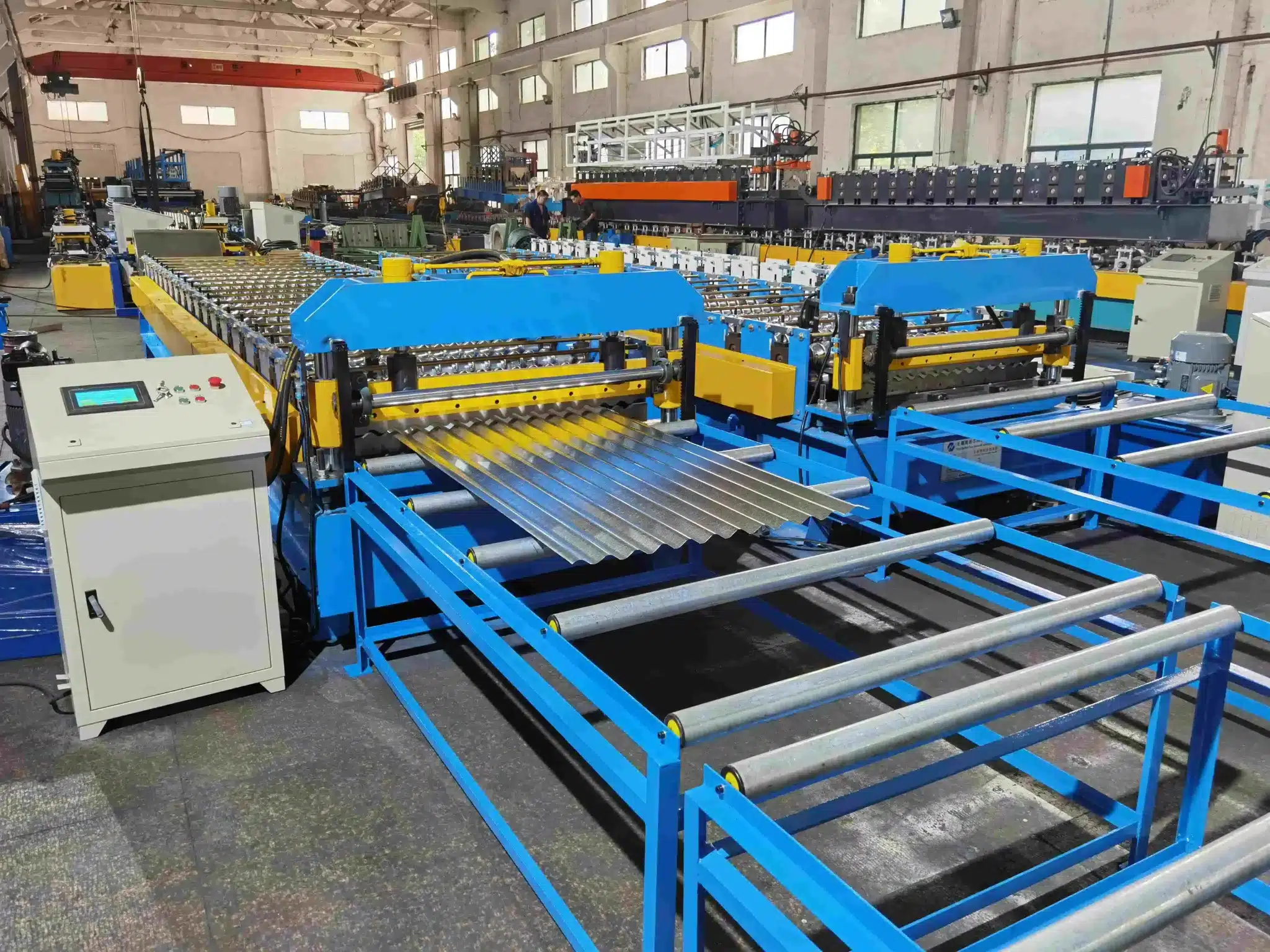

What Is the Custom Orb Roll Forming Machine To Produce?
This machine specializes in manufacturing Custom Orb which is the original corrugated steel roofing or walling profile, trusted for its reliability and versatility. Suitable for a wide range of applications, it delivers consistent performance in any setting.(CUSTOM ORB® >>)
Thickness: 0.3–0.6 mm (galvanized, Galvalume, or color-coated steel)
Rib Height: 16 mm
Width: 762 mm
Minimum Roof Slope: 5°
- Suitable for: Roofing and Walling
Length: Up to 12 meters (cut to size via hydraulic/flying shear)
Whether you need standard profiles or custom designs, our machine delivers uniform, high-strength sheets every time.

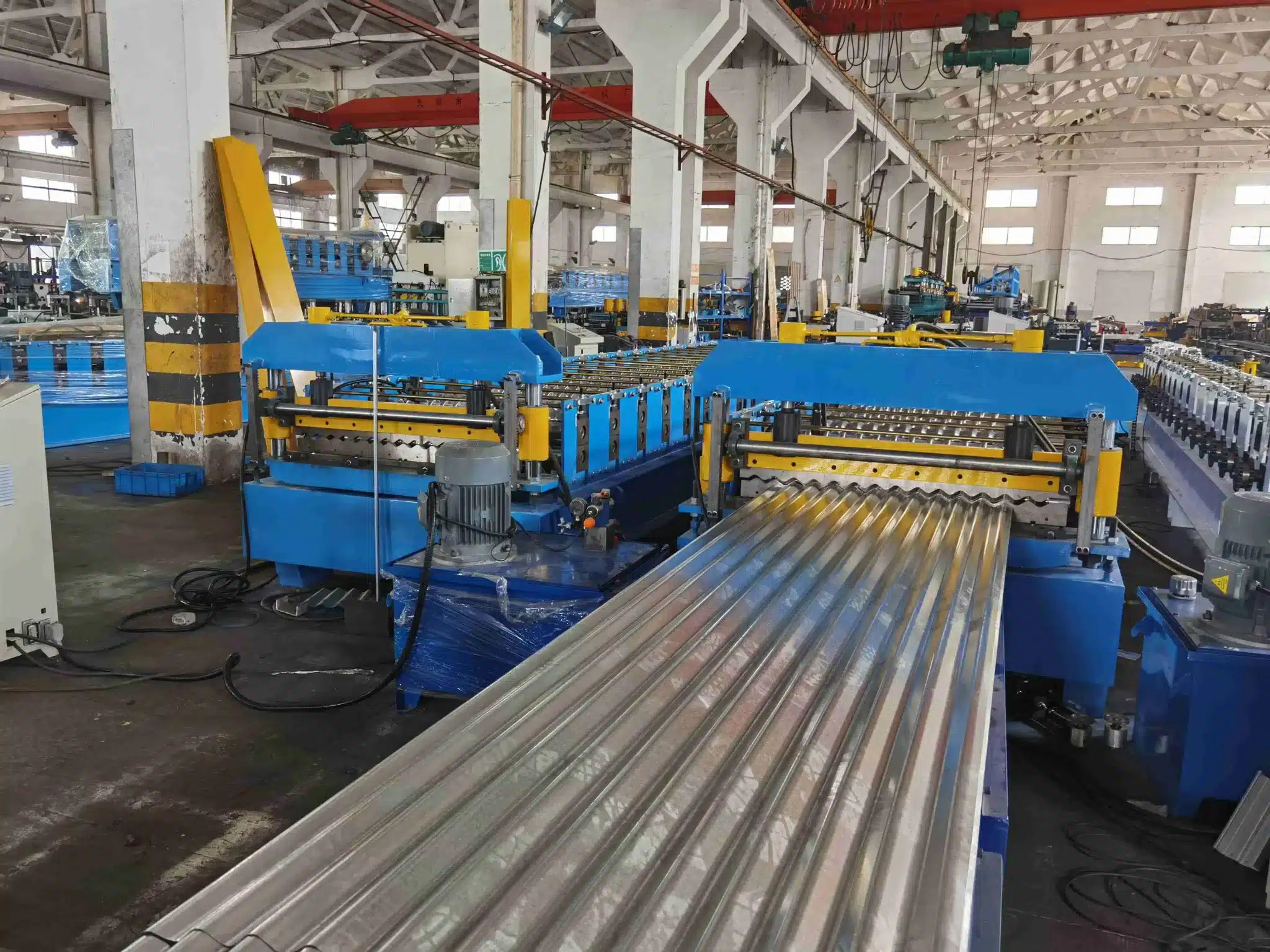

Key Components of Custom Orb Machine
Every Beli custom orb roll forming machine uses premium components for long-term performance:
Uncoiler: Hydraulic/manual, handling coils up to 20 tons.
Feeding System: Alignment guiding rollers for consistent material flow.
Roll Forming Station: Modular design with D2 tool steel dies for wear resistance.
Cutting System: Hydraulic/Electric, with programmable length settings.
Control Panel: Siemens S7-1200 PLC (or Allen-Bradley/Mitsubishi) with a touchscreen interface.
Output Conveyor: Adjustable speed + stacking system to match production rates.
Brief Specification Parameters
| Parameter | Standard | Optional |
|---|---|---|
|
Material |
PPGI, PPGL |
Aluminum, Stainless Steel |
|
Yield Strength |
Soft Material( 235-345 Mpa) |
Full Hard (550-700 Mpa) |
|
Production Speed |
15-20/min |
Up to 40m/min |
|
Uncoiler Type |
Manual |
Automatic |
|
Transmission |
Chain and Sprocket |
Gear Box and Universal Joint, Gears |
|
Stands Type |
Steel Plates Welded |
Cast Iron, Chromed Pillar |
|
Roller Material |
ASTM 1045 |
Nitriding Treatment |
|
Cutting Way |
Electric Cutting |
Flying Electric Cutting, Hydraulic Cutting |
|
Power Supply |
415 V, 3 PH, 50 HZ.(Austailia Standard) |
480V 60 HZ, 600 V 50/60 HZ |
Investing in a custom orb roll forming machine from Beli means choosing flexibility, precision, and global support. Our tailored solutions help you scale production and enter new markets with confidence.
For more details on our roll forming capabilities, visit our main roll forming machines page.
Contact us today to discuss your custom orb roll forming machine needs—we’re here to help you succeed!
