💡Maximize Your Production with the Medium Speed Strut Channel Roll Former Machine
Looking for a robust, high-efficiency solution to elevate your metal strut channel production? The Medium Speed Strut Channel Roll Former Machine from Beli RollForming is specifically engineered for industrial applications demanding both speed and unwavering precision.
This industrial-grade system is your key to producing durable, high-quality structural channels from heavy-duty materials, including:
Galvanized Steel: Grade 33/50, 12-14 gauge (2.5–2.75 mm thickness)
Stainless Steel: 13 gauge (2.5–2.75 mm thickness)
The result? Consistent, high-integrity strut channels essential for construction, infrastructure, and advanced manufacturing projects, including critical components for photovoltaic systems.
☀️What Makes Our Solar Strut Channel Roll Former Machine Essential?
The strut channel profiles produced by our medium speed strut channel roll former machine are versatile, lightweight, and critical in various structural and support roles:
⚙️Technical Excellence & High-Speed Features (30–40 FPM)
Our Medium Speed Strut Channel Roll Former Machine achieves its outstanding performance through integrated, cutting-edge technology and durable components:
High-Speed Capacity: Consistent production line speed of 30–40 FPM (feet per minute) to meet high-volume demands.
Precision Forming: Features 24 robust forming stands with gearbox transmission, ensuring consistent torque and seamless forming. Ideal for producing complex solar strut channel profiles.
Advanced Cutting & Punching: Utilizes synchronized Xinjie EtherCAT Servo Motors (7.5 kW punch, 11 kW cut) for rapid, accurate hydraulic punching and saw cutting—perfect for standardized hole patterns required in solar structures.
Progressive Dies: Two-step progressive die sets are integrated for efficient notch punching and precise bending.
Material Handling: A 3-Ton Hydraulic Uncoiler handles coil widths up to 12 inches and weights up to 3,000 kg, equipped with smart safety sensors.
Durable Tooling: Rollers are crafted from CR12 MO (HRC 58–62), paired with Vanadis 8 Super Clean tooling and NSK bearings for maximum lifespan and minimal wear, even with frequent production of solar strut channel materials.
Smart Control: A UL-certified PLC and intuitive touchscreen interface allow for real-time process adjustments, complemented by remote monitoring capabilities (MCGS).
For more details, Check Product-Strut Channel Roll Forming Machine

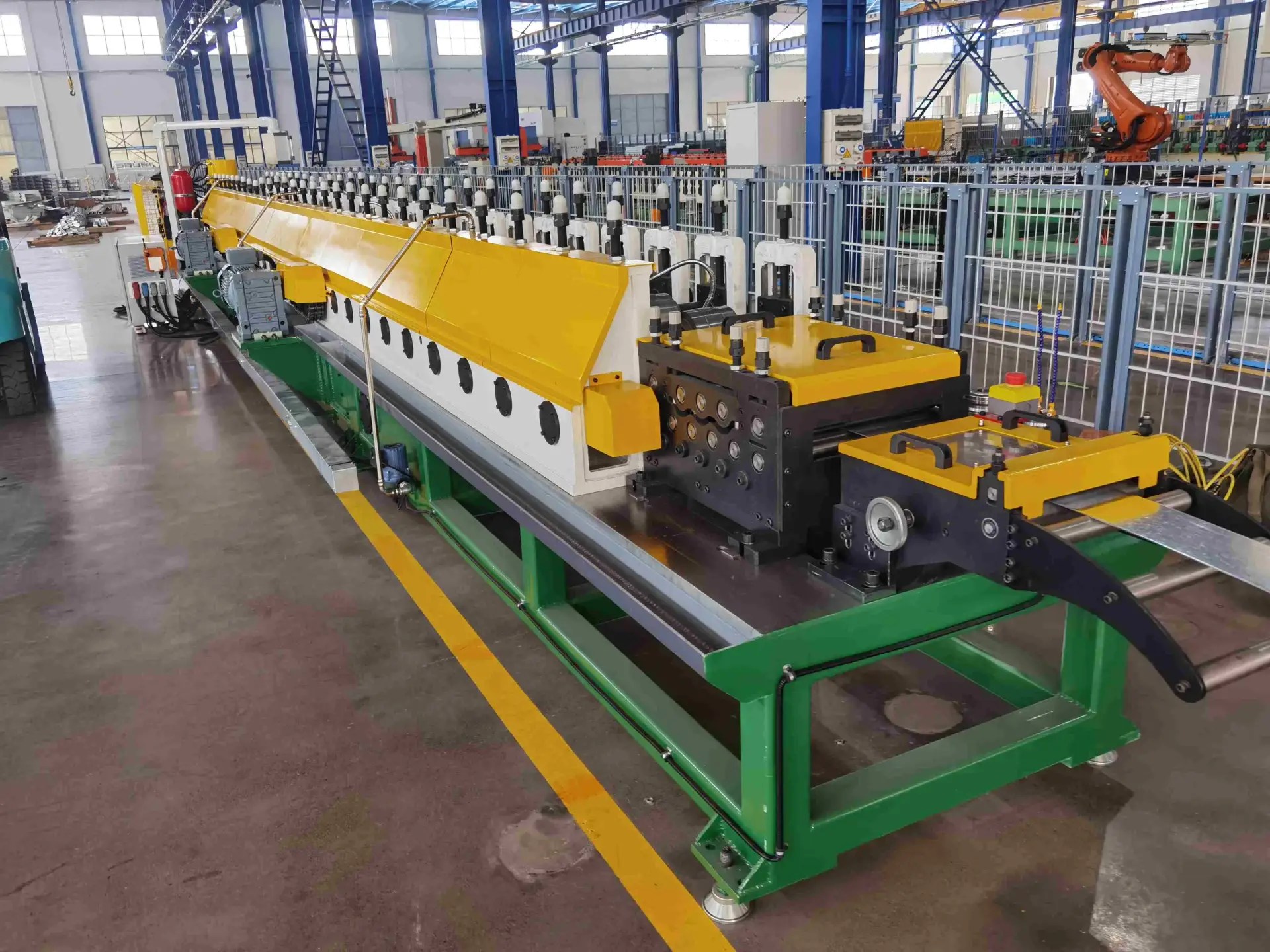

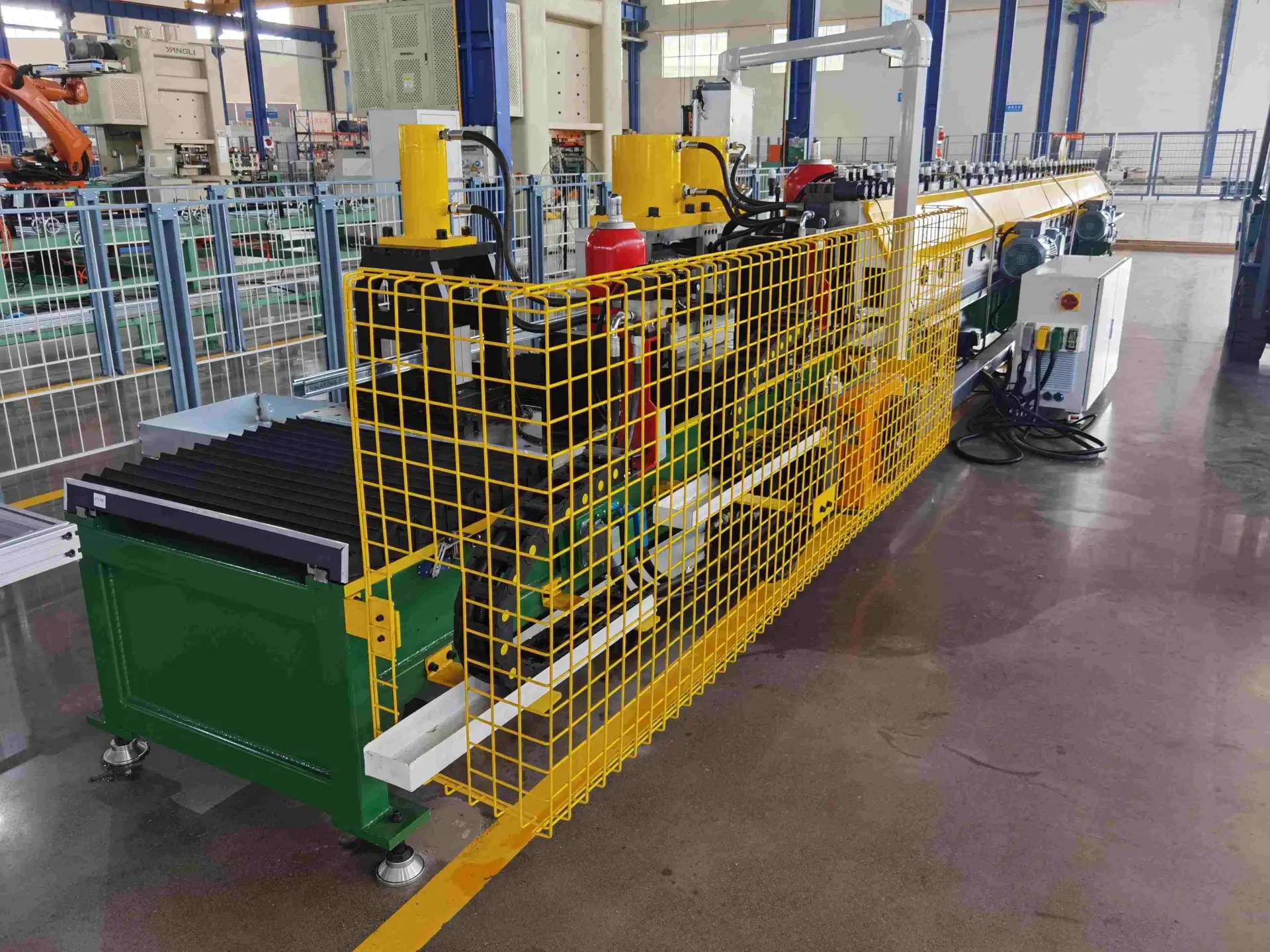

🧩Image Gallery of Strut Channel Roll Former Machine
⁉️Why Partner with Beli RollForming for Your Solar Strut Channel Roll Former?
Choosing Beli RollForming means investing in a solution that offers ultimate flexibility, lasting durability, and dedicated global support:
Flexibility and Customization: Achieve profile diversity with quick changeovers (just 1–2 hours) and adjustable forming stands (manual/manual servo hybrid), allowing you to switch between standard and specialized solar strut channel profiles.
Efficiency and Reliability: Benefit from high-speed output, minimal downtime, and components certified to international and UL standards.
Comprehensive Support: We provide free machine operation training and offer 24/7 technical assistance to ensure continuous, worry-free operation.
📞Conclusion: The Future of Medium Speed Strut Channel Roll Former Machine is Here
The Medium Speed Strut Channel Roll Former Machine, which serves as an excellent Solar Strut Channel Roll Former Machine, is the optimal investment for scalable metal fabrication. By partnering with Beli RollForming, you secure:
Cost-Effective production for large-scale orders.
Faster Turnaround Times due to superior line speed.
Consistent, Certified product quality.
Get Started Today! Contact us to request a tailored quote or schedule a demonstration of our state-of-the-art roll forming technology.
📞 +86 18616927760 | 📧 darren@belirollforming.com
❓ Frequently Asked Questions (FAQ)
This machine operates at a consistent medium speed of 30–40 FPM (Feet Per Minute), balancing high production output with exceptional forming precision.
The machine is designed to handle high-strength steel, primarily Galvanized Steel (Grade 33/50, 12-14 gauge) and Stainless Steel (13 gauge). It accommodates material thickness ranging from 2.5 mm to 2.75 mm.
Yes, absolutely. The machine is an ideal Solar Strut Channel Roll Former Machine. It is configured to produce the precise profiles, standardized hole patterns, and high material strength required for robust photovoltaic (PV) mounting systems.
The roll forming system is built with 20-28 robust forming stands to ensure smooth, gradual, and highly accurate profile shaping for complex strut channel designs.

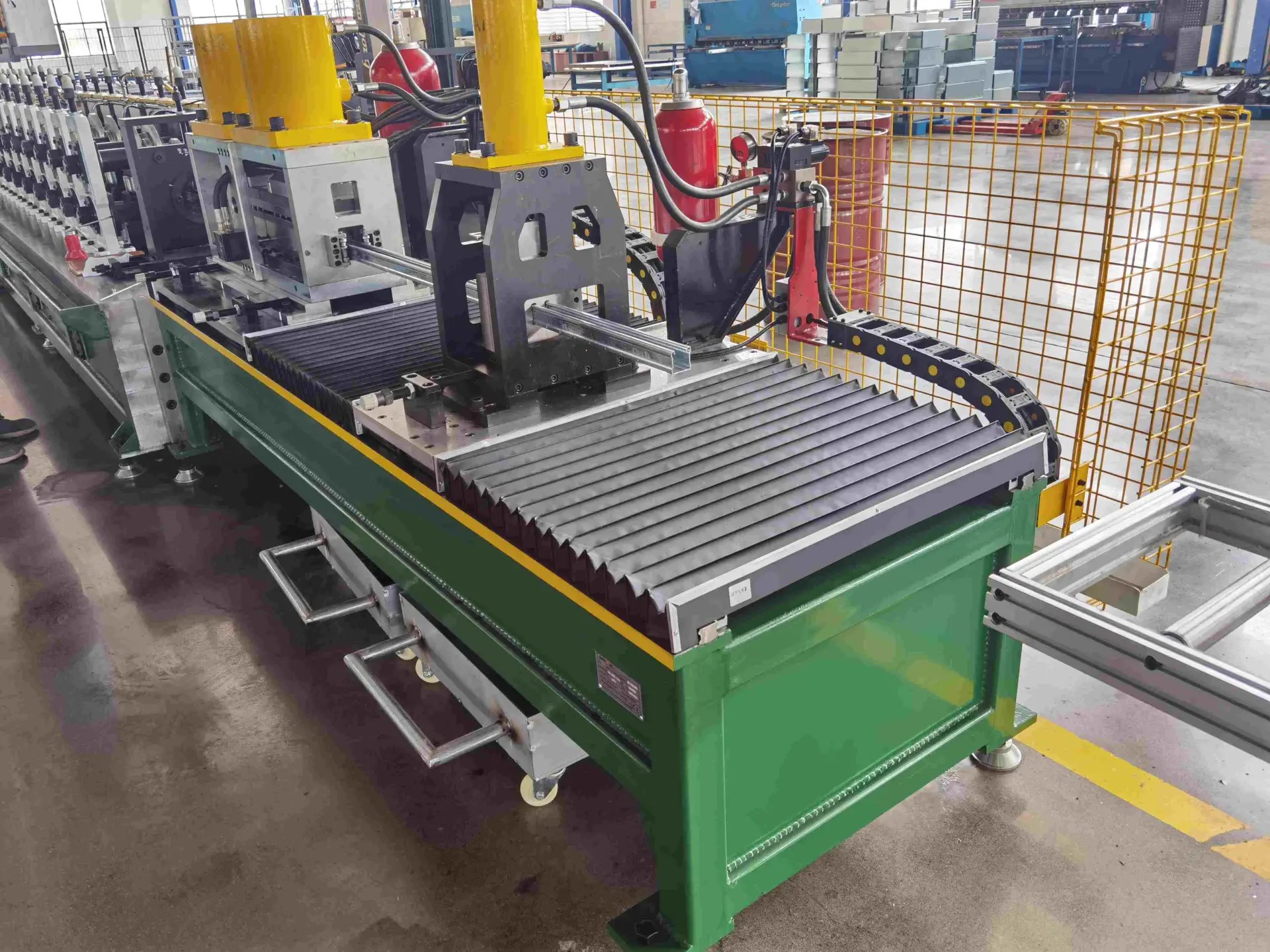

We use a high-speed Flying Hydraulic Cutting System paired with a synchronized Flying Punch Holes Device. Both are driven by advanced Xinjie EtherCAT Servo Motors (Closed-Loop Servo Drive) for maximum speed and precision.
Yes. We use UL-certified components (such as the PLC and Servo Drives) and ensure the final product complies with key international standards for global export and installation.
The rollers are made from durable CR12 MO tool steel (HRC 58–62). We utilize Vanadis 8 Super Clean tooling and NSK bearings throughout the system to ensure an extended lifespan and minimal maintenance, even under continuous high-speed operation.
Yes, the system is designed for flexibility. It features quick changeover capabilities (typically 1–2 hours) for adjusting or swapping tooling to produce different channel sizes and profile specifications.
We provide comprehensive global support, including free training for your operators and maintenance staff, as well as 24/7 technical assistance to minimize any potential downtime.
