Are you ready to dominate the logistics manufacturing market? At Beli RollForming, we provide world-class industrial machinery. Our Carriage Board Roll Forming Machine is the premier choice for manufacturers demanding precision, speed, and durability.
As a dedicated manufacturer and exporter in China, we design our equipment to be versatile. While specialized for truck carriages, this equipment is robust enough to serve as a high-performance container wall panel roll forming machine, making it a dual-purpose asset for your production line.

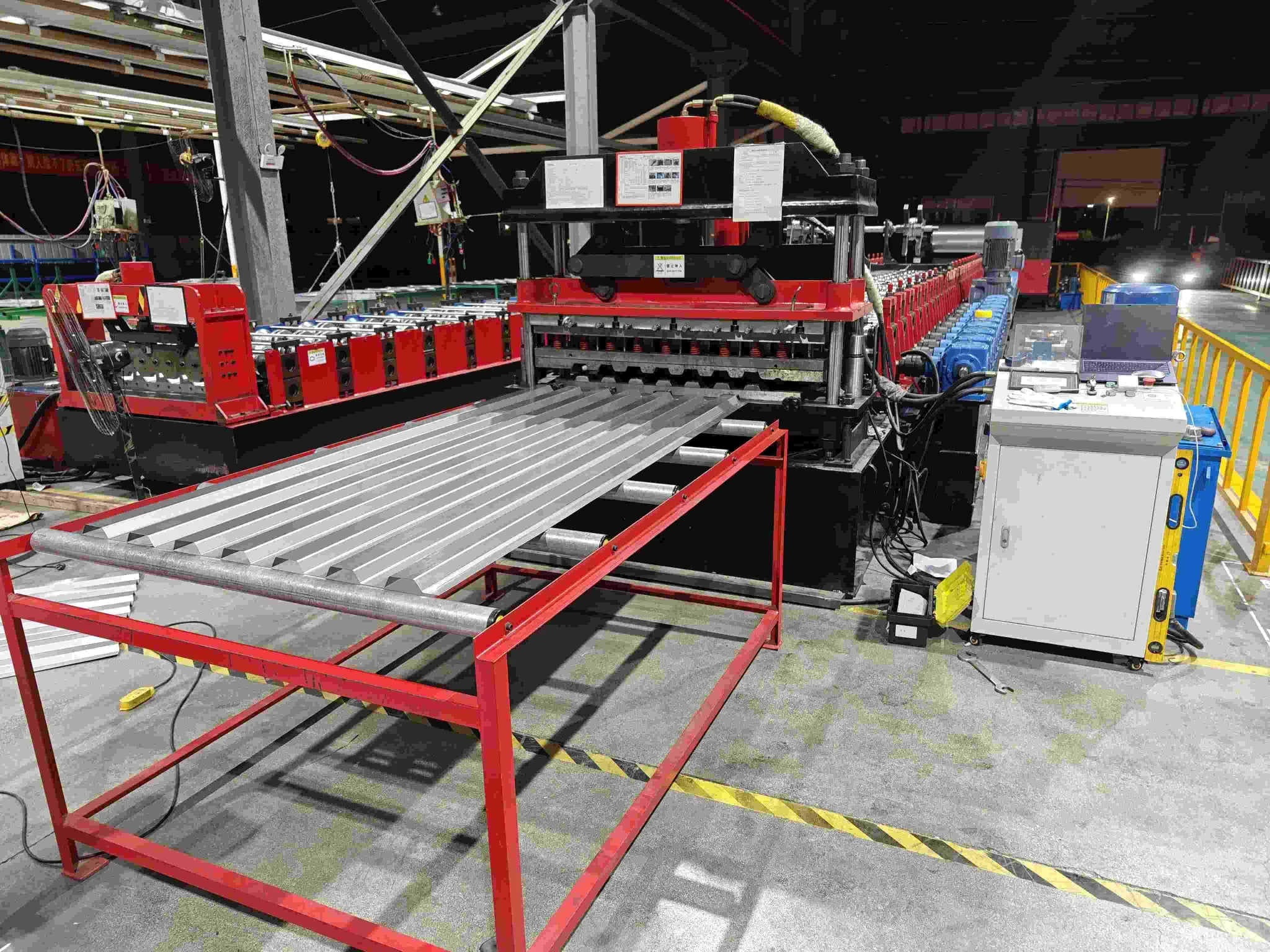

Streamline Production with One Machine
In the competitive world of transport manufacturing, efficiency is king. A Carriage Board Roll Forming Machine automates the heavy lifting of shaping metal profiles.
By utilizing advanced gear transmission and hydraulic power, this machine ensures that every profile is identical. Whether you are producing sideboards for light trucks or heavy-duty panels for shipping containers, consistency is guaranteed. This versatility is why many clients utilize this model as their primary container wall panel roll forming machine.
Carrier Board Roll Forming Machine Components
Key Machine Components
To achieve high production standards, our machine integrates five heavy-duty components:
1. 5 Ton Hydraulic Uncoiler

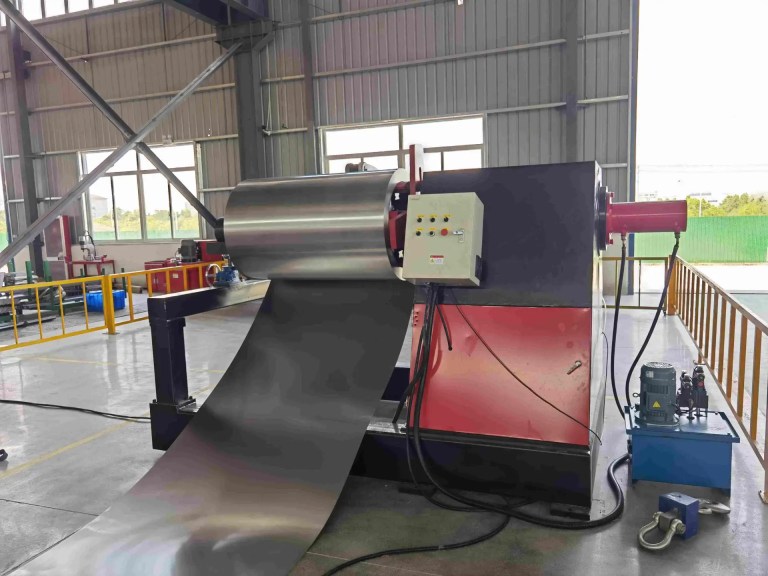

Stability begins at the source. Our Carriage Board Roll Forming Machine is equipped with a 5 Ton hydraulic uncoiler. This heavy-duty unit manages large coils effortlessly, ensuring smooth feeding into the machine without material jerking or misalignment.

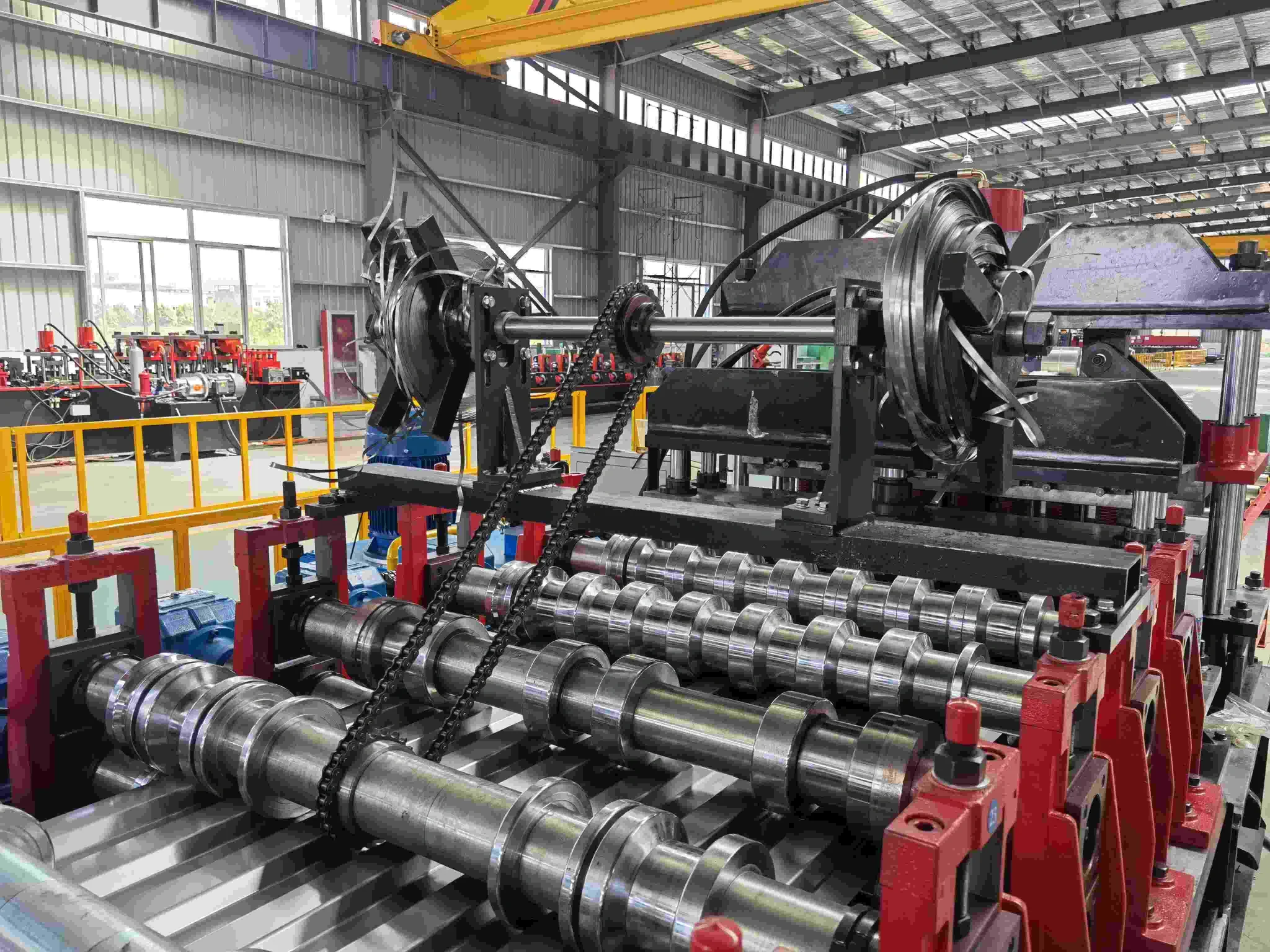

2. High-Speed Roll Forming Part

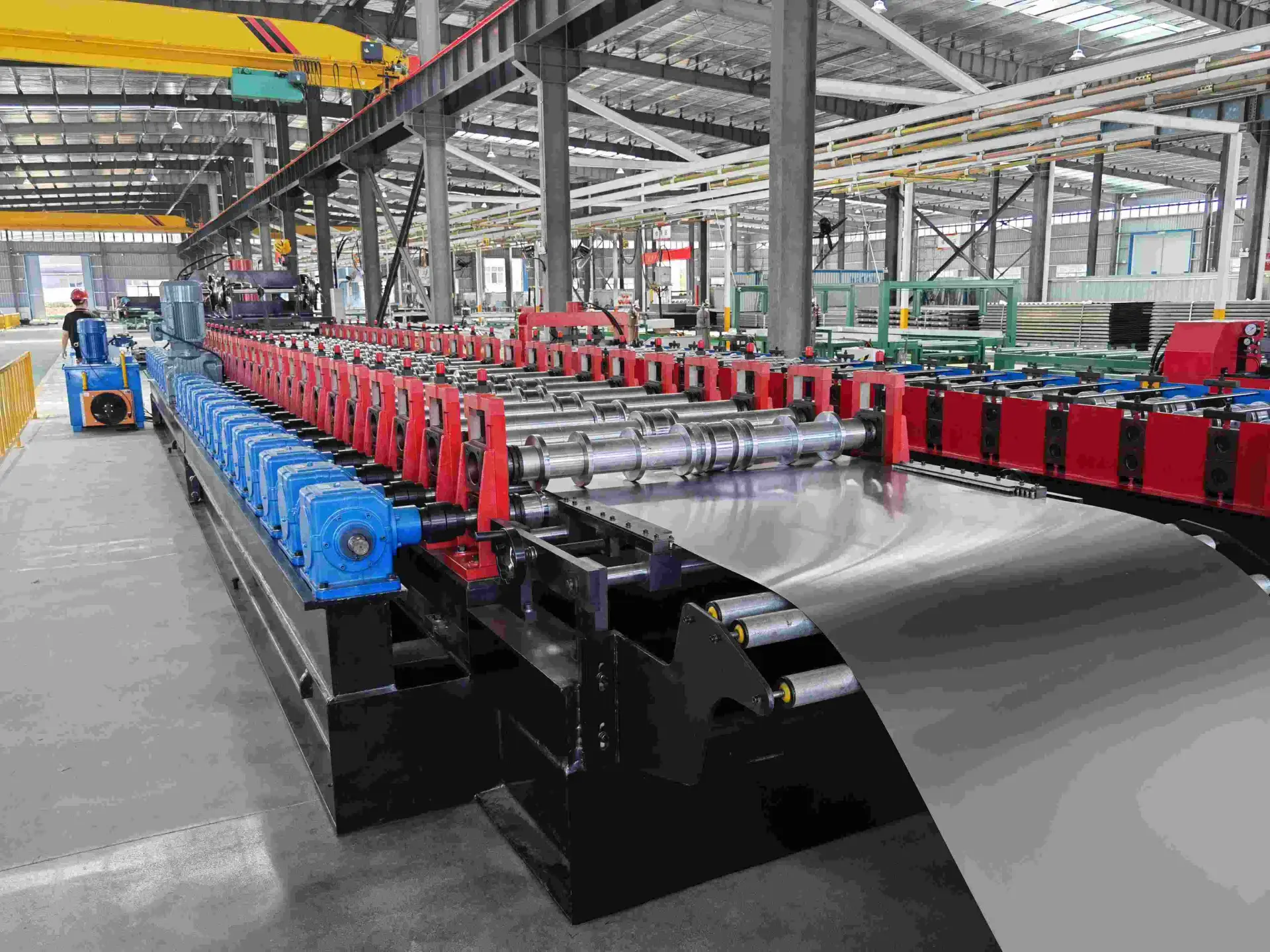

The heart of the system features a precision Feeder and a gear box transmission. Unlike chain-driven systems, the gear box transmission provides superior torque and stability. This is essential when running thicker gauges often required by a container wall panel roll forming machine.

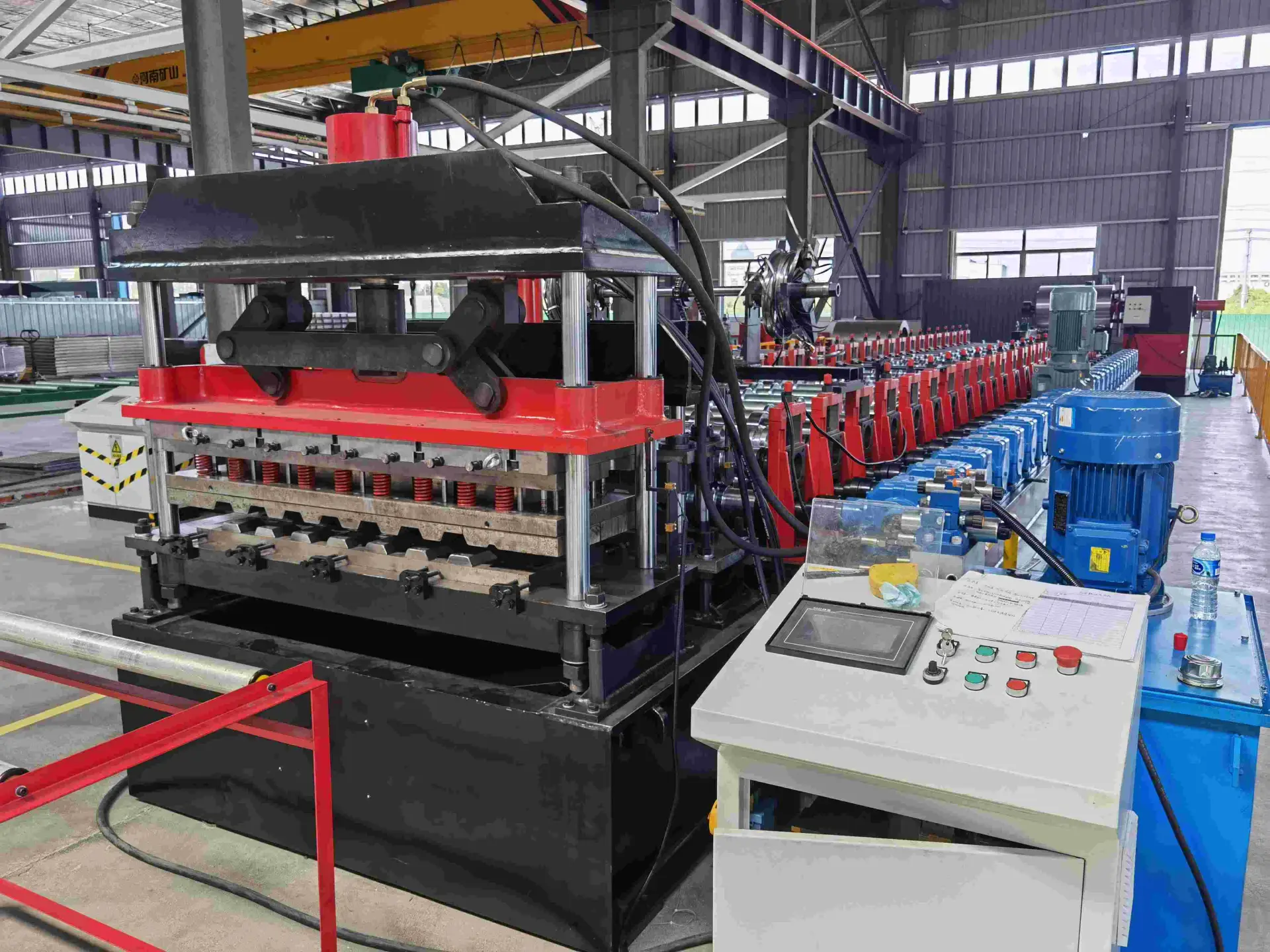

3. Integrated Hydraulic Cutter and Puncher
Efficiency is maximized through our integrated hydraulic cutter and puncher. This unit is engineered to punch the ends flat, ensuring they are ready for easy assembly on the frame immediately after cutting. This feature significantly reduces downstream labor costs.
4. PLC and HMI Control System
We utilize an advanced PLC and HMI system to put total control in your hands. Operators can program lengths and batch quantities via a user-friendly touchscreen. This automation is critical for maintaining the tight tolerances expected from a professional Carriage Board Roll Forming Machine.
5. Collection Table
The process concludes at the Collection Table, which supports the finished panels to prevent bending or surface scratching as they exit the cutter.
Technical Specifications of the Carriage Board Roll Forming Machine
Standard Parameters (Mandatory Features)
These specifications define the base model of the Carriage Board Roll Forming Machine offered by Beli RollForming, ensuring high performance for both carriage boards and heavy-duty container wall panel roll forming machine applications.
| Parameter | Specification | Note |
| Material Thickness | 1.5 mm−3.0 mm | Optimized for common carriage/container steel gauges. |
| Material Type | GI, Carbon Steel, PPGI | Maximum yield strength ≤350 MPa. |
| Forming Speed | 8−12 m/min | Consistent speed delivered by the gear box transmission. |
| Forming Stations | 18−22 groups | Stations required for complex, deep profiles. |
| Transmission Type | Gear Box (Oil Bath Lubrication) | Ensures high torque, durability, and low maintenance. |
| Uncoiler Capacity | 5 Ton Hydraulic Uncoiler | Matching the required input capacity for standard coils. |
| Cutting System | Integrated Hydraulic Cutter and Puncher | Cutting and end-flattening done simultaneously. |
| Main Motor Power | 15 KW | Reliable power for high-gauge material forming. |
| Control System | Siemens/Delta PLC with HMI Touchscreen | Automated operation and digital precision control. |
| Voltage | 380 V,50 Hz,3 Phase | Customizable to specific country voltage standards. |
Optional Features (Upgrades)
These optional parameters allow you to customize your Carriage Board Roll Forming Machine for higher efficiency, specialized materials, or advanced automation needs.
| Optional Parameter | Upgrade Details | Benefit |
| High-Speed Package | Main Motor upgrade to 18 KW (or higher) | Increases forming speed up to 15−20 m/min. |
| Heavy-Duty Uncoiler | Upgrade to 7 Ton or 10 Ton Hydraulic | Handles larger, heavier coils, reducing coil changeover time. |
| High Durability Rollers | Tooling material upgrade to Cr12 or SKD11 steel | Extended roller lifespan for heavy usage and hard materials. |
| Auto-Stacker/Collection | Automatic stacking/packaging unit | Reduces labor costs and increases output handling speed. |
| Quick Change Tooling | Cassette-style forming rafts | Allows fast profile changeover (e.g., between different container panel types). |
| Remote Service Module | IoT connection and remote diagnostics | Enables immediate technical support and troubleshooting. |
Built for Long-Term Reliability
At Beli RollForming, we use only the best components. The machine includes a dedicated hydraulic station that powers both the uncoiler and the punching/cutting units. This ensures consistent pressure and clean cuts every cycle.
Pro Tip: To maintain the longevity of your machine, ensure the hydraulic oil is kept clean and at the correct temperature.
Connect Your Production Line
Don’t let outdated equipment slow you down. Upgrade to a Carriage Board Roll Forming Machine and experience the difference in speed and quality.
To build a complete production ecosystem, consider linking this machine with our Upright Rack Roll Forming Machine to create a comprehensive Internal Links chain for your warehouse or storage product lines.
For further reading on the standards of shipping containers, check out this resource on Intermodal Containers.
Contact Beli RollForming today to discuss your specifications!
❓ Frequently Asked Questions (FAQ)
Yes, absolutely. The robust construction, paired with the high-torque gear box transmission, allows this Carriage Board Roll Forming Machine to handle the thicker, high-strength steel required for heavy-duty container wall panel roll forming machine profiles, as well as standard carriage boards. We can customize the tooling to suit various specifications.

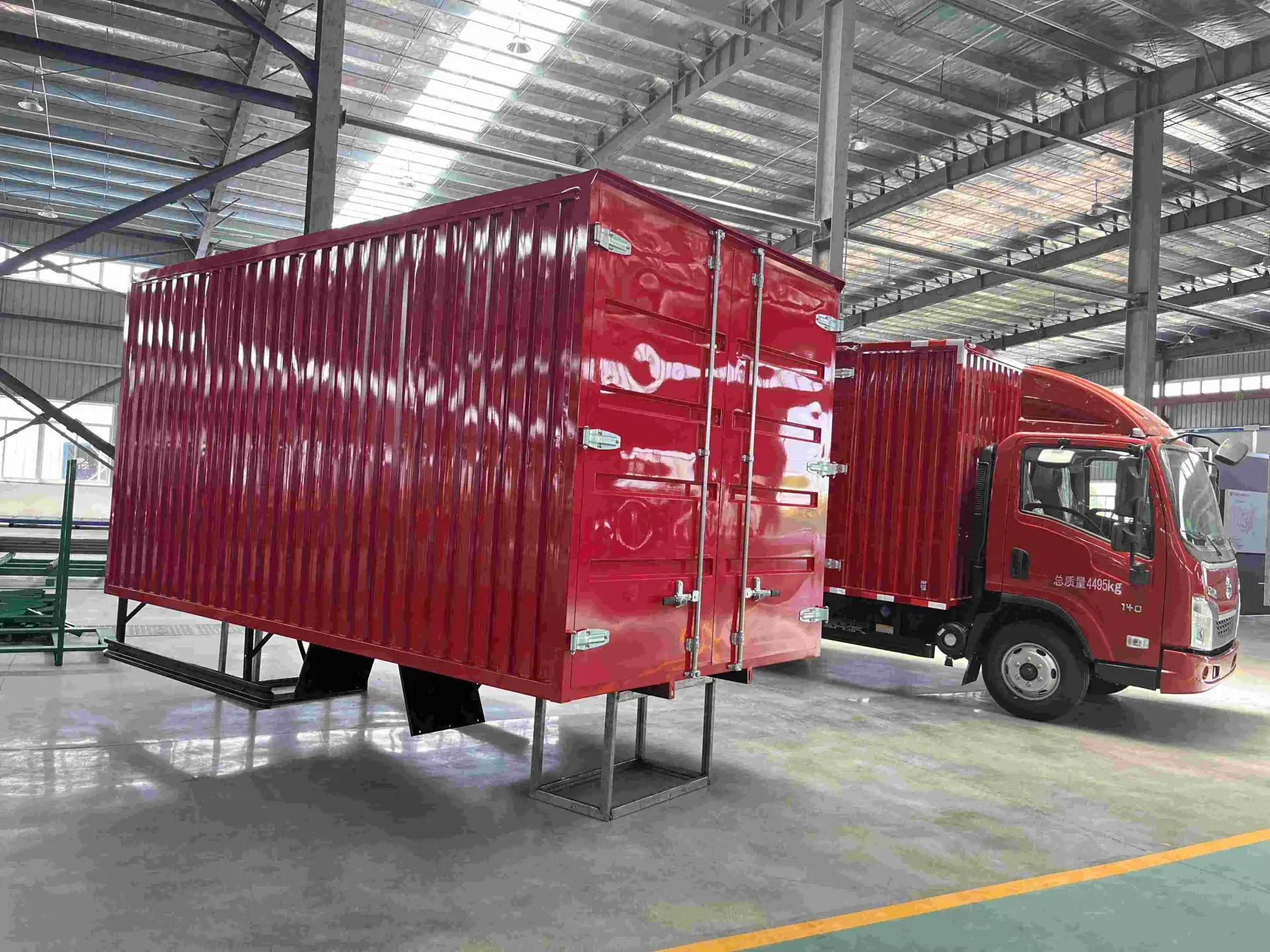

The primary advantage is seamless assembly. Our integrated system is designed to automatically punch the necessary slots and, crucially, flatten the panel ends. This ensures zero need for manual end finishing, saving labor time and ensuring a perfect fit onto the carriage or container frame.
The standard forming speed is between 8 – 12 meters per minute (m/min). For manufacturers requiring higher throughput, we offer an optional High-Speed Package which can increase the production rate up to 20 m/min
Our standard Carriage Board Roll Forming Machine is optimized to handle material thicknesses from 1.5 mm up to 3.0 mm, supporting maximum yield strength of up to 350 MPa, suitable for durable transport components
As a dedicated exporter, we provide comprehensive international support. This includes providing overseas installation and commissioning services. Our certified engineers will travel to your facility to ensure the machine runs smoothly and provide complete hands-on training for your operators.
We offer a standard 24-month warranty on all mechanical components and electrical parts. Crucially, Beli RollForming provides lifelong technical support and access to replacement parts for every Carriage Board Roll Forming Machine we sell.
